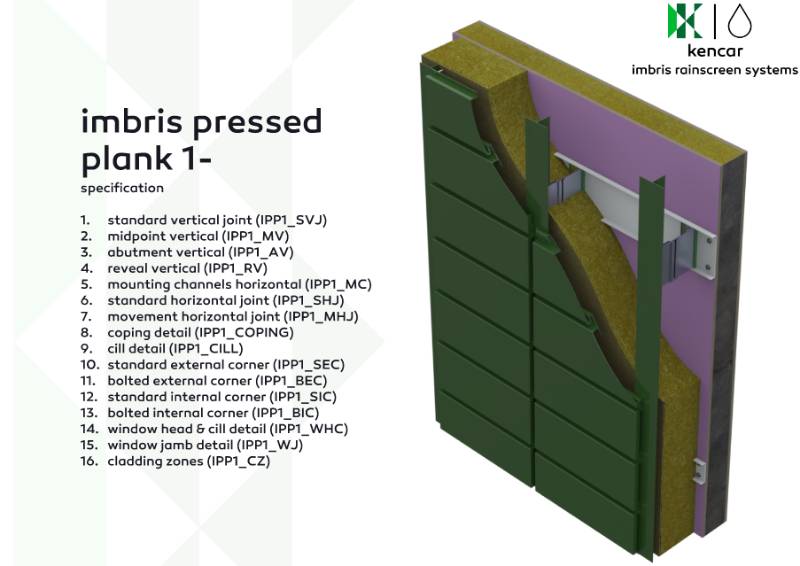

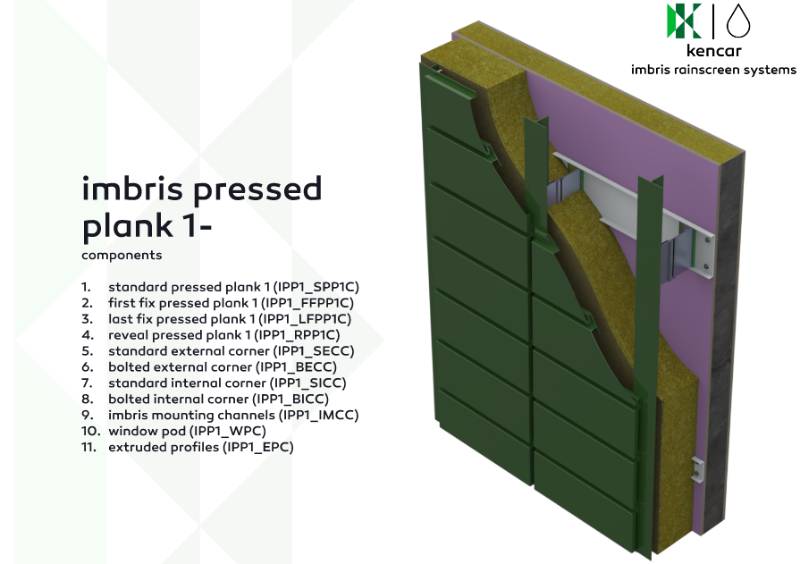

Imbris Aluminium Pressed Plank (secret fix)

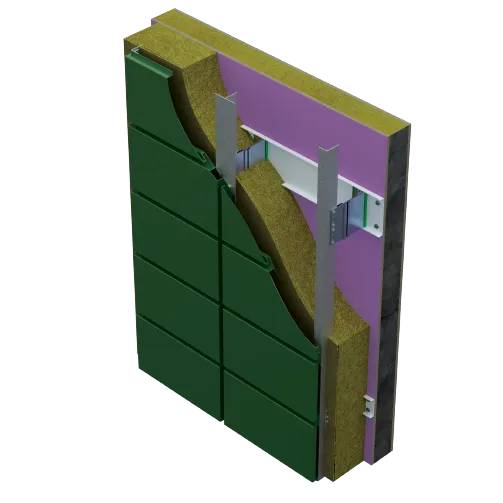

The Imbris Pressed Plank is a secret-fix aluminium rainscreen cladding system, precision-manufactured in-house by Kencar. The planks feature interlocking male/female joints that create a continuous facade with no visible fixings. Ventilation is provided at the top and bottom of the elevation, as the longitudinal joints are fully closed.

The system is installed on NVELOPE NV1 carrier rails and brackets, providing a robust and proven subframe solution. Panels are available in 2 mm or 3 mm aluminium, with modular sizes to suit project requirements. A full range of finishes is available, including polyester powder coating and anodising. Prefabricated corners, column casings, and abutments can be supplied along with ancillary components such as window pods, door framing, and flashings.

Features and benefits:

• Hidden-fix design for a clean, modern facade.
• Interlocking male/female joints ensure precise alignment.
• Ventilation achieved at the top and bottom of the elevation.
• Panels available in 2 mm or 3 mm aluminium.
• Wide range of durable finishes, including powder-coated and anodised.
• Pre-fabricated corners, column casings, and abutments available.
• Ancillaries such as window pods, door frames, and flashings to complete the build.
• Suitable for both horizontal and vertical plank arrangements.
• Sustainable materials.
• Partnered with SFS Group - With an exclusive partnership with the SFS Group, our Imbris Rainscreen Systems easily interface with SFS fixings, rails & brackets.
• Compatible with NVELOPE NV1 carrier framework.
