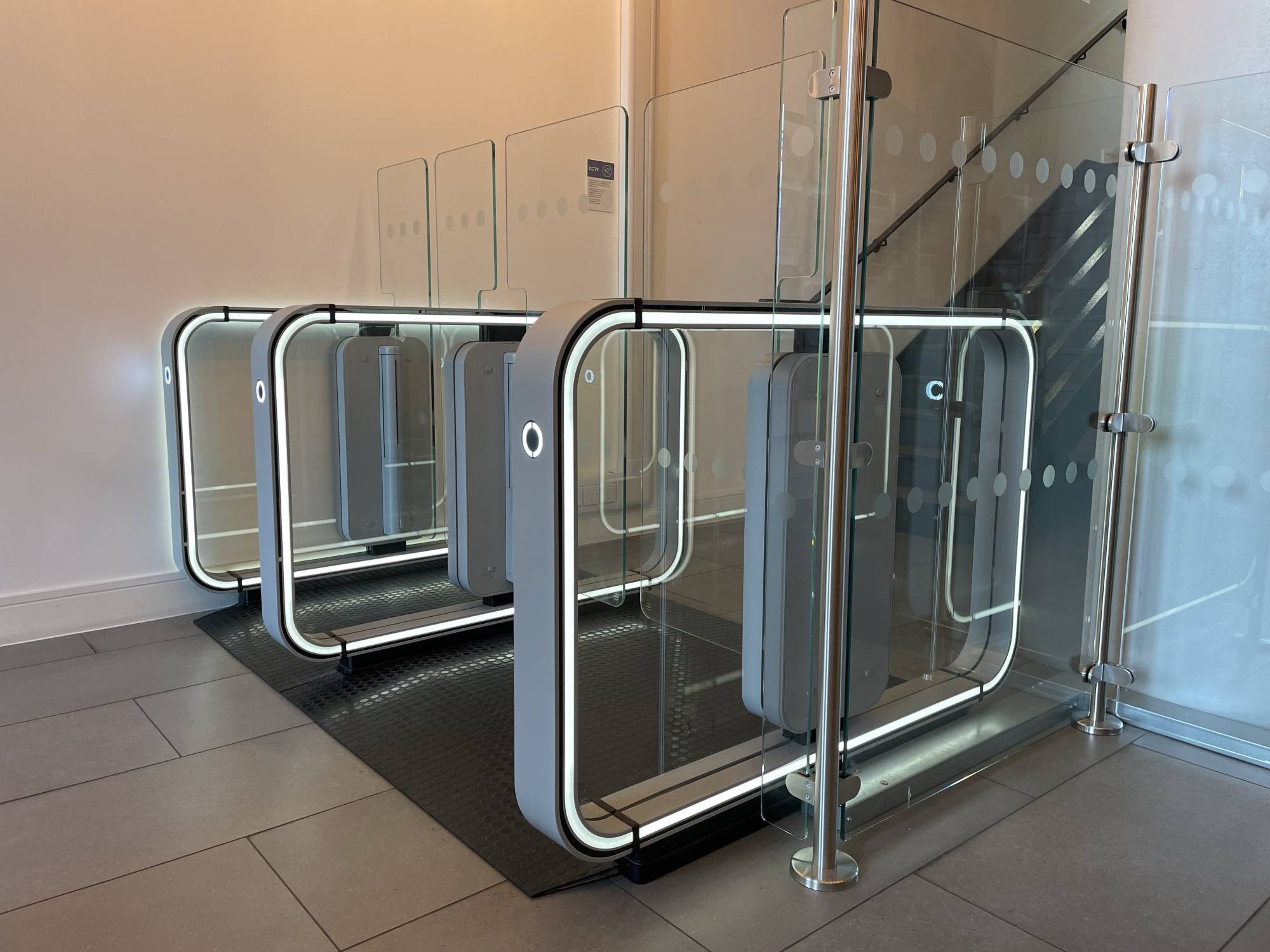

Impression Security Speed Gate

Verified by manufacturer 28 days ago

Record U.K. Limited Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

  • Achilles Information Limited - Procurement Management

    Achilles Information Limited - Procurement Management

    Certificate type

  • ADSA

    ADSA

    Certificate type

  • Alcumus SafeContractor

    Alcumus SafeContractor

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 45001 Health and Safety Management

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • CHAS

    CHAS

    Certificate type

  • Constructionline Gold

    Constructionline Gold

    Certificate type

Security speed gates.

Jump to:
+44 (0)1698 376411 Website

Application

Suitable for advanced security in areas such as:

  • Construction sites.
  • Stadiums.
  • Government buildings.
  • Public transport areas.
  • Retail outlets.
  • Gyms.

Description

Impress your visitors with flexible, elegant and sophisticated security speed gates that not only look the part, but feature a modular design ensuring it can be installed in almost any entrance.


By housing the electronics in the centre of the gate barrier, their length and width can be fully customised to suit your needs, eliminating the need to compromise on your architectural design.


The Impression Speed Gate is a simple to install solution with state of the art security features, designed to prevent unauthorised access even in areas with a high volume of pedestrian traffic.


By using a variety of sensors specifically designed to detect intrusions, the Impression Speed Gate puts an end to jump-overs, tailgating and other intrusions that buildings may face.


While this Speed Gate is complex in its features, it is incredibly safe and easy to use for all, no matter a persons age or mobility, this speed lane ensures that everyone can access your premises quickly and without hassle.


This innovative access solution offers seamless integration into any existing security system, with leading HID technology, resulting in a solution that is quiet, long-lasting and can handle a large number of visitors.


Speed gates, designed with a variety of security features to prevent un-authorised access.


Benefits:

  • Able to handle high flow rates in public areas.
  • Security measure features such as anti-tailgating, piggybacking and wrong way passage.
  • Easily integrate with existing security systems to ensure setup is achieved quickly and smoothly.
  • Maximum stability and low maintenance.
  • Work well in an emergency situations, being able to respond to emergency alarms, holding the doors permanently open or switching to manual mode, so they can be operated without the need for access cards.
  • Mean time to repair (MTTR): less than 30 minutes.


Features:

  • Wings with different size options for comfort and style
  • Card reader integration to enable seamless pedestrian flow
  • Light bands for immediate user feedback
  • LED pictogram that signals passage status from afar
  • Cabinet in open, centre glass and boxed versions
  • Colours that complement your building's aesthetic
  • Sensors for intuitive, top-grade security and safety

General information

Color

Black

Beige

Bronze

Blue

Brown

Show more

Finish

Anodized

Powder-coated

Material

Steel

Stainless steel

Glass

Length

500 mm

1200 mm

1450 mm

1700 mm

Width

600 mm

900 mm

1100 mm

Height

1000 mm

1200 mm

1800 mm

Warranty description

Five year

Uniclass

Pr_30_59_15_36 Half-height access control gatesPrimary

CAWS

L10/690 Security

L10/60 Security

L20/60 Doors

L20/490 Automatic doors

L20/570 High-speed doors

Specification data - Half-height access control gates

Properties

-

Safety features

Fail-safe and fail-unlocked

Guidance for specification option:

The barrier wing opens in the pre-defined direction and waits till the end of emergency before closing.

During power-failure the mechanism unlocks the barrier wing and the wing rotates freely in both directions.

Configuration

Right-hand operation, five-lane.

Guidance for specification option:

Modular to a five lane maximum per control panel.

Housing

-

Type

Open housing.

Center glass housing.

Boxed housing.

Material and finish

Stainless steel.

Powder coated.

Anodised

Colour

Any RAL colours.

Panel

-

Type

Two-leaf.

Rotation

Swing.

Speed of opening

0.7 seconds.

Guidance for specification option:

Depending on passageway width.

Size

-

Clear opening width (minimum)

600 mm.

900 mm.

1100 mm.

Length

800 mm.

1200 mm.

1450 mm.

1700 mm.

Height

1000 mm.

1200 mm.

1700 mm.

Security

Automatic closing wings.

Guidance for specification option:

High number of sensors, specifically designed for the detection of unauthorized users, jump-overs

and tailgate attempts.

Credential Reader

-

Type

Card reader.

Card reader with facial recognition.

Guidance for specification option:

Powered by HID.

Controls

Stand-alone automatic electronic access.

Guidance for specification option:

For control of up to five lanes.

Control unit

Not required.

10" control display.

Guidance for specification option:

For control up to five lanes.

Power supply

110–240 VAC, 50–60 Hz.

Accessories

Not required.

Top-mounting integration.

Guidance for specification option:

Options available, consult manufacturer for details.

Ramp gate access.

Guidance for specification option:

For gate installation on finished floors.

Lighting

LED pictogram and ambient LED light bands.

Ingress protection (IP) rating

IP41.

MeanTimeBetweenFailure

Ten-million cycles.

Sustainability data

Material

Steel

Stainless steel

Glass
