Isosonic Screed Plank
Verified by manufacturer 29 days ago
A dry installation screed plank floor system with high acoustic performance and shallow build depth.
Application
- For use in lightweight floors in new build and refurbishment applications.
- Suitable for use over structural decks including precast plank, steel composite, beam and block and in situ concrete.
- Suitable for use over the structural deck in all types of joisted floors including timber and steel joists, timber i-beam, and steel web joists.
Description
Isosonic Screed Plank is a high mass fibreboard with 50 mm step joint edges. It is suitable for increasing the mass of floor structures to help achieve Approved Document Part E compliance.
Features and benefits:
- Hard and robust cementitious gypsum plank with high density and mass.
- Suitable for use with underfloor heating - low thermal resistance and even heat distribution.
- Suitable for use as a floating floor 'dry screed' - saving on construction time and screed pumping.
- Provides a stable and water-resistant surface.
- Lip/lap joints for quick and simple installation.
General information
Color | Grey |
Material | Gypsum |
Shape | Rectangle |
Length | 1500 mm |
Width | 500 mm |
Height | 20 mm |
Uniclass | |
CAWS | K11/60 Board K11/295 Floating floor system K11/275 Acoustic separating floor system |
Specification data - Fibre-reinforced gypsum floor boards
Declaration of conformity | Declaration of Performance (DoP) and UKCA marked. |
Thickness | 20 mm. |
Edges | Step joint. |
Density | 1200 kg/m³. |
Sustainability data
Contains Red List materials | No |
Literature

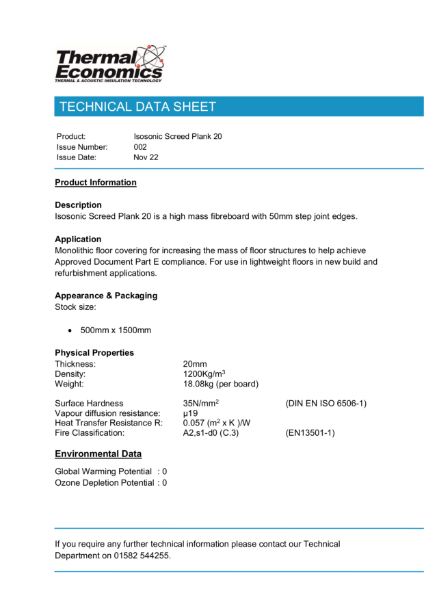

Isosonic Screed Plank 20 Technical Data Sheet

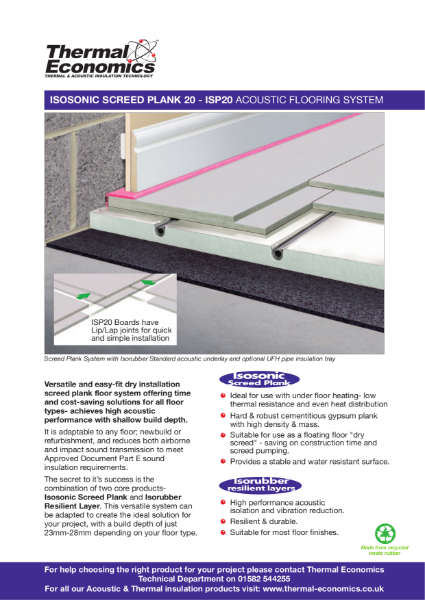

Isosonic Screed Plank Brochure

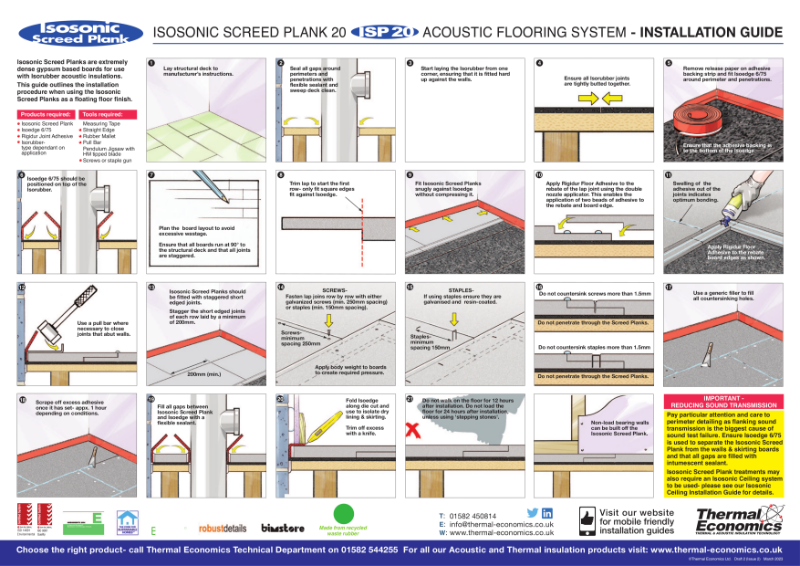

Isosonic Screed Plank Install Guide
