Italia-100 Cladding And Screening - Steel Louvre Protective Privacy Screen
Verified by manufacturer 26 days ago
Italia-100
Italia-100
A steel louvre with a profiled horizontal, vertical or inverted louvre, providing 100% visual screening for cladding, plant housing or brise soleil.
Application
Italia-100 / Italia-100 Vertical:
- Suitable for cladding, plant housing or brise soleil.
- Suitable for ground and street-front locations, as well as roof-top and elevated situations.
Italia-100 Inverted:
- Suitable for compounds, plant housing or any elevated roof-top situation.
Description
Italia-100:

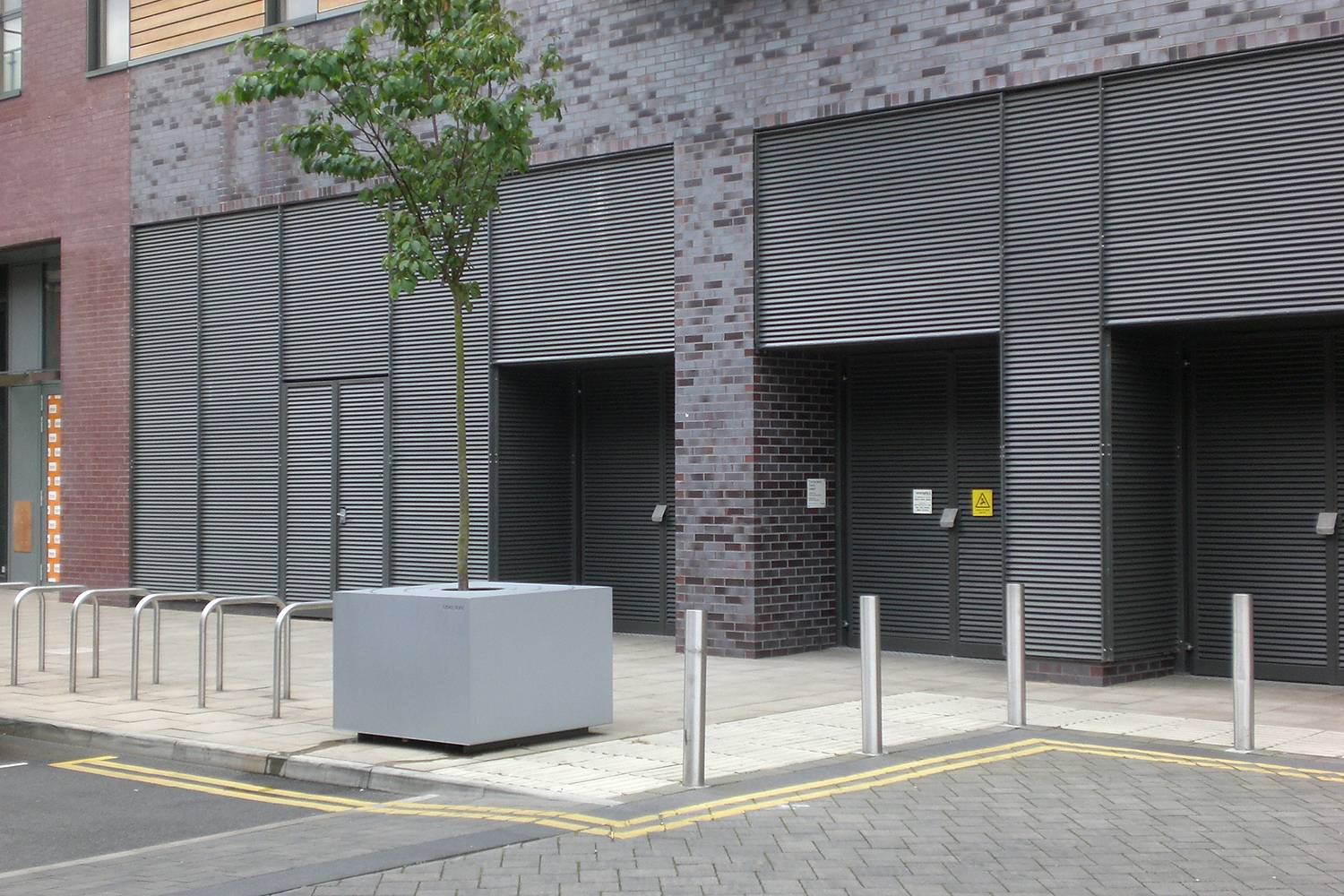

A steel louvred cladding system which combines 100% visual screening with 29% free area, providing ventilation and anti-climb properties. The steel construction creates a robust panel suitable for ground and street-front locations, as well as roof-top and elevated situations.
Framed panels are manufactured to custom-sizes for a wide variety of applications such as wall cladding, car park screens, compounds, plant housing, ventilation grilles, balconies and balustrades, wheelie bin stores and brise soleil.
Italia-100 Vertical:
A steel cladding system with a vertical louvre which combines up to 100% visual screening with 29% free area, providing ventilation and anti-climb properties. The steel construction creates a robust panel suitable for ground and street-front locations, as well as roof-top and elevated situations.
Framed panels are manufactured to custom-sizes for a wide variety of applications such as wall cladding, car park screens, compounds, plant housing, ventilation grilles, balconies and balustrades, wheelie bin stores and brise soleil.
Italia-100 Inverted:
A steel louvred cladding system which combines 100% visual screening with 29% free area, providing ventilation and anti-climb properties. The steel construction creates a robust panel for roof-top screening and plant housing.
The inverted louvre is particularly suitable for roof-top and elevated situations as it enhances the screening effect from ground level.
Features and benefits:
- Italia-100 / Italia-100 Inverted: The louvre profile is formed from triple flanged 69 x 1.5 mm flat bars, which overlap to provide a continuous linear aesthetic, total visual screen and good protection against rain.
- Italia-100 Vertical: The louvre profile is formed from triple flanged 69 x 1.5 mm flat bars, which overlap.
- Italia-100 / Italia-100 Inverted: The louvres are secured by electrofusion to 4 mm diameter vertical round bars.
- Italia-100 Vertical: The louvres are secured by electrofusion to 4 mm diameter horizontal round bars.
- Panels and ancillary steelwork can be supplied galvanized only, or galvanized and powder coated to any RAL colour.
General information
Color | Grey Beige Black Blue Bronze |
Finish | Galvanized Guidance for specification option: Hot-dipped to BS EN ISO 1461. Powder-coated Guidance for specification option: Hot-dip galvanized and polyester powder coated to BS EN ISO 1461 and BS EN 13438. |
Material | Steel |
Shape | Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | L30/560 Proprietary balustrades L10/670 Brises-soleil L10/60 Security L30/55 Proprietary balustrades H31/120 Metal L10/650 Metal louvres L10/690 Security H31/10 Metal |
Product range |
Specification data - Carbon steel louvre panel units
Size (l x w x d) | Guidance for specification option: Insert requirements, maximum 1975 x 1991 mm per panel. Standard panel widths: 1725 and 1991 mm. |
Material | Carbon steel.Guidance for specification option: Some rails and bars are carbon steel S235JR, consult manufacturer for details. |
Finish | Hot-dip galvanized.Guidance for specification option: To BS EN ISO 1461. Hot-dip galvanized and polyester powder coated, RAL.Guidance for specification option:
|
Colour | Manufacturer guidanceInsert RAL colour requirement. |
Construction | Panel top edge: Flat bar. |
Louvre configuration | |
Blade orientation | Louvre flat horizontal bars inclined downwards to the outside of the enclosed area.Guidance for specification option: Provides effective visual screening for roof-top installation, when viewed from ground level. |
Actuators | Fixed. |
Accessories | M10 stainless steel bolts, grade A2.Secondary support steelwork.Guidance for specification option: Designed and supplied as required. |
Other requirements | Not required. Shaped to suit non-uniform openings. Guidance for specification option: The integrity of the raw material allows it to be cut or shaped to suit non-uniform openings. |
Bird/ Insert screen mounting | Not required. Blanking plate. Required, bird screen. Required, insect screen. Manufacturer guidancePanels can be framed with an angle section on all four sides to provide a mounting surface for bird and insect screens or blanking plates. |
Fixings | Through flat framing bar. Behind louvre at 90 degrees through angled framing bar. Manufacturer guidanceInsert fixing requirements to suit substrate. Ensure fixing method aligns with panel edges specified. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | United Kingdom |
Material | Steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 1.42 kg CO₂ eq/kg Self declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 56 % |
Literature
Case Studies: Steel Louvred Screening, Plant Housing, Bin Stores & Fencing
Louvred Gratings for Screening, Ventilation and Security
Case studies
Multi-Storey Car Park at Pioneer Square, Bicester in Oxfordshire
Compounds, screening and perimeter security at Jaguar Land Rover' new plant

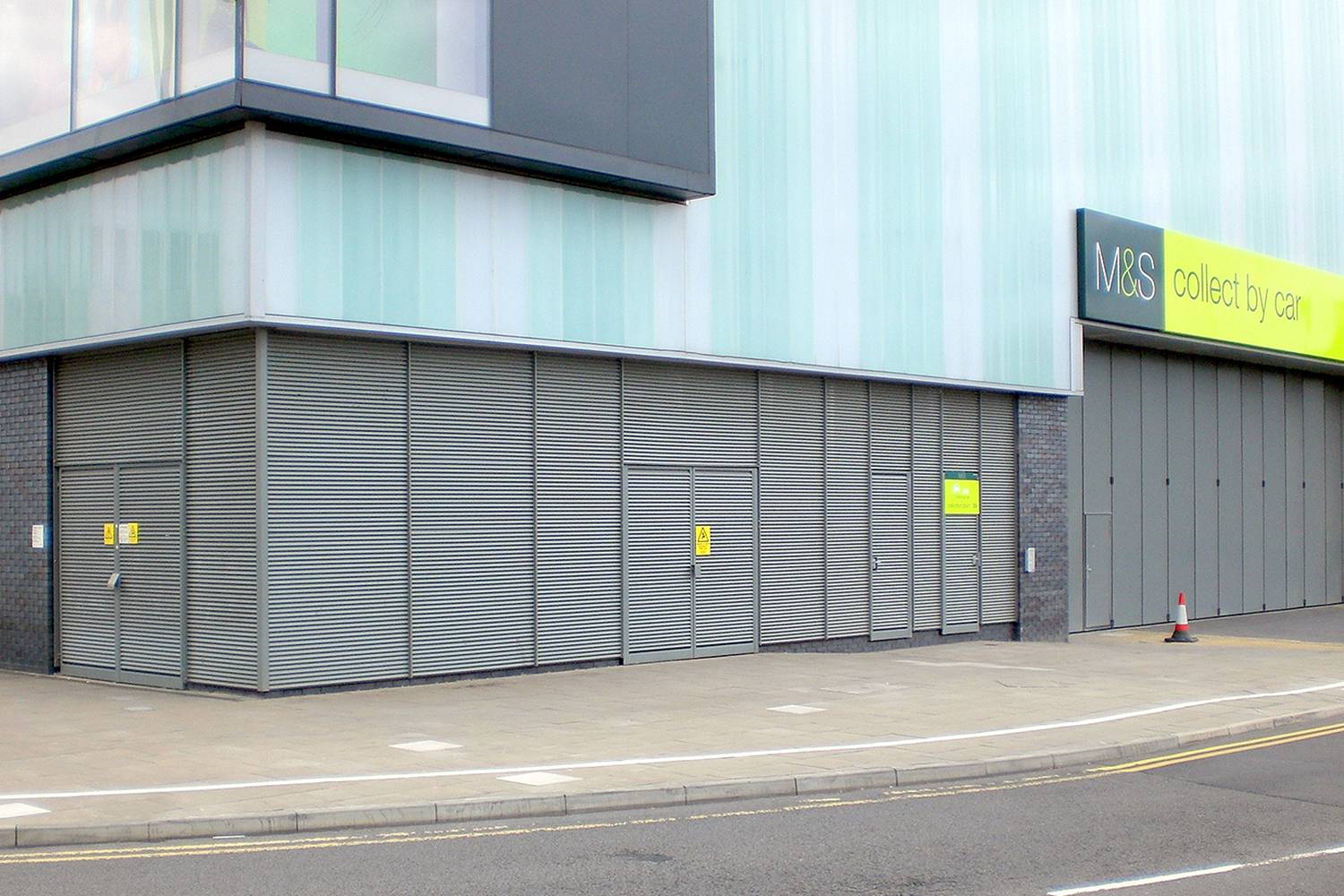

Louvred Wall Cladding for Electricity sub-stations at the Rock Shopping Centre in Bury
North Kent Police HQ: Italia-100. Steel louvred fencing and generator compound.
