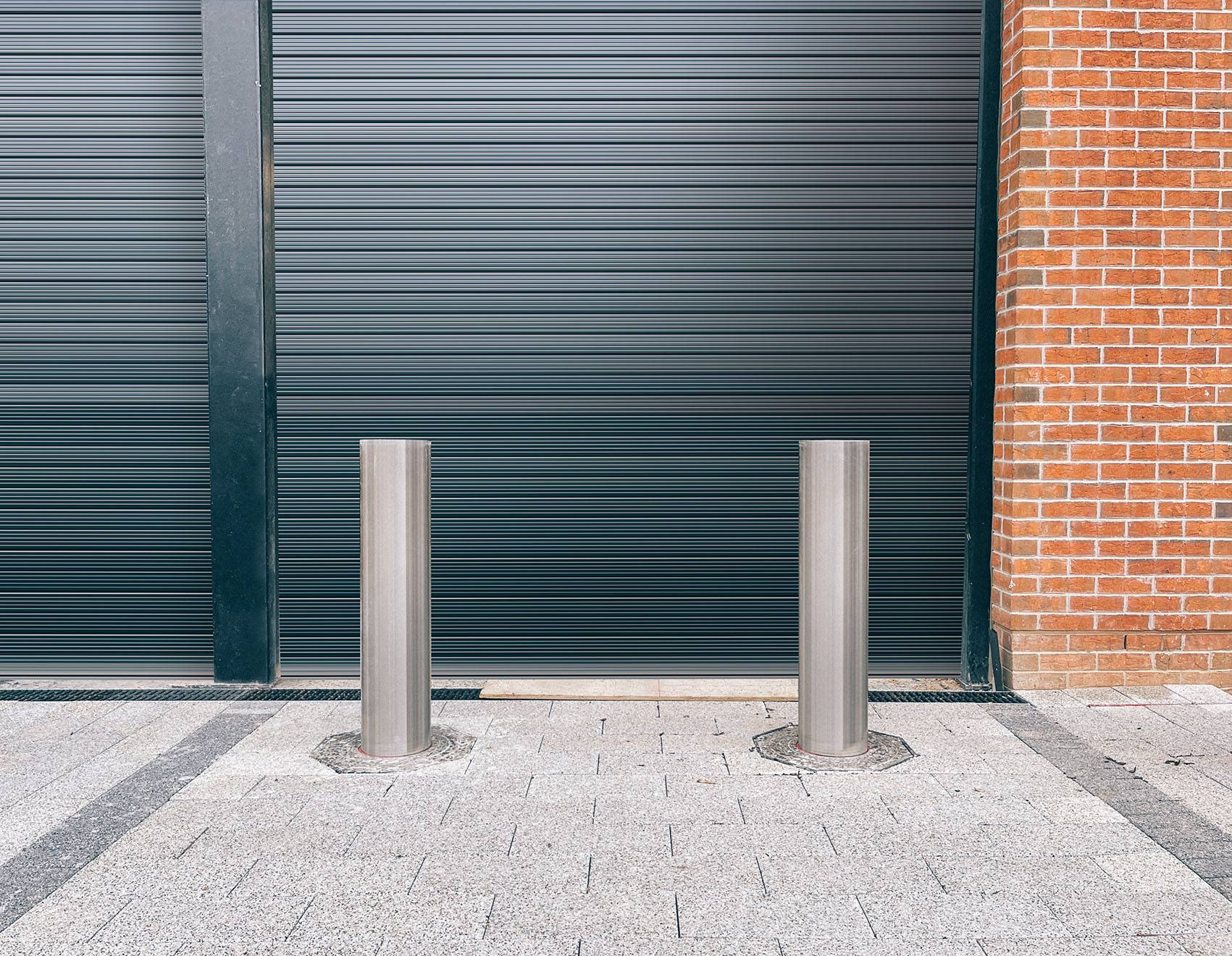

IWA 14 HVM Automatic Rising Terra Galaxy Bollard – 7.2t at 30 mph - Anti Terrorist HVM Rising Bollard
Verified by manufacturer 29 days ago
Secured By Design
Certificate type
IWA 14 HVM automatic rising bollard – 7.2t at 30 mph. Impact rated
Application
Suitable for high-security sites such as banks, embassies, bullion depots, cargo parks, ports and lorry parks.
Description
The automatic rising bollard has been impact-tested to the International IWA 14 Specification, stopping a 7.2-tonne vehicle travelling at 30 mph. Hydraulically driven hostile vehicle mitigation (HVM) bollard. IWA 14 Classification Code: V/7200[N2A]/48/90:0.0. Zero penetration. The fully automatic, easy glide hydraulically driven rising bollard provides outstanding protection from the threat of VBIED's. The bollard has been designed to complement Frontier Pitts' Static Terra Venus Bollard diameter. IWA 14 Classification Code: V/7200[N2A]/48/90:0.0. Zero penetration.
The system includes a hydraulic control cabinet, which is recommended to be installed within 10 m of the bollard system.
All made to order with size and safety system options available depending on individual site risk assessments. For the International IWA 14-1 Impact-tested bollards are to be installed per IWA 14-2, bollards should be installed with 1200 mm between upright bollard faces.
Features and benefits:
- Compliant with BS EN 13849.
- A Secured by Design and PSSA Verified Product.
- Listed on the CPNI List of IWA 14 and PAS 68 products.
General information
Color | Grey Guidance for specification option: Steel clad |
Finish | Other Manufacturer guidanceSteel clad only. Stainless steel and corten finish available. |
Material | Steel Guidance for specification option: Core: Mild (carbon) steel. |
Shape | Circle Guidance for specification option: 219 mm diameter only. |
Height | 1000 mm |
Warranty description | One year |
Uniclass | |
CAWS | Q50/194 Retracting bollards Q50/30 Street furniture |
Product range |
Specification data - Carbon steel rising bollards
Standard | In accordance with PAS 68. |
Automation | |
Method of operation | Hydraulic with manual override. |
Controllers | ANPR – Automatic number plate recognition.Audio intercom.Card reader.Digital keypad.GSM intercom.HMI – Human machine interface.Push button control.VHF Radio control system. |
Dimensions | |
Size and profile | 219 mm diameter. |
Height | 1000 mm. |
Finishes | |
Worked finish | Grit blasted. |
Applied finish | Polyester powder coated.Manufacturer guidanceSteel clad only |
Colour | None.100 mm diameter red/ green LED traffic light head with monitored safety circuit.Anti-tamper alarms.Bollard lighting.Extra fast operation.Guidance for specification option: Contact manufacturer for details. High security cabinet.Warning sign. |
Accessories | None.100 mm diameter red/ green LED traffic light head with monitored safety circuit.Anti-tamper alarms.Bollard lighting.Extra fast operation.Guidance for specification option: Contact manufacturer for details. High security cabinet.Warning sign. |
Product Reference | IWA 14 HVM Automatic Rising Terra Galaxy Bollard |
Sleeve | Stainless steel 1.4303 (308) grade. Stainless steel 1.4401 (316) grade. Stainless steel bead blasted. |
Reflective banding | None. led lighting |
Actuation/ Safety | Audible alarms. Flashing beacons. Hydraulically driven. Induction loop/ Vehicle detector loop system. Laser. |
Power fail operation | Accumulator. Guidance for specification option: Allows a number of operations in power failure mode. Manual hand pump. Guidance for specification option: Standard. |
Post foundations | 1495 mm depth. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Third party certifications
Secured By Design
Secured by Design accredited
Literature
IWA 14 & PAS 68 Terra Bollards
IWA14 Rising Terra Galaxy Bollard - 7.2t @ 30mph
