Jakoustic® Acoustic Barriers
Verified by manufacturer 5 months ago
Jakoustic Reflective Barrier System
Jakoustic Reflective Barrier System
ISO 9001 Quality Management
Certificate type
A range of environmental absorptive and reflective noise barriers.
Application
Jakoustic® Absorptive Noise Barrier is suitable for transport hubs, generators, air conditioning units and goods loading areas, the Jakoustic® Commercial and Highway Noise Barrier is for highways, commercial sites, railways and transport hubs and can be UKCA marked as a whole system, and the Jakoustic® Reflective Noise Barrier is commonly used for residential, commercial and industrial applications.
Description
A range of environmental reflective and absorptive noise barriers, including the Jakoustic® Absorptive Noise Barrier, Jakoustic® Commercial and Highway Noise Barrier and Jakoustic® Reflective Noise Barrier.
Features and benefits:
- Maximum noise reduction in laboratory conditions: Absorptive 32 dB, Reflective: 28 dB.
- Easy to install.
- Can be installed on uneven or sloping ground.
- All timber is Jakcure® vacuum-pressure-treated softwood guaranteed for 25 years against rot and insect attack.
- Higher security variants of Jakoustic Reflective are available in designs as tested and approved by UK Government and to LPS 1175
- Jakoustic® Commercial and Highway can be UKCA marked as a whole system for road noise reduction to the harmonized standard BS EN 14388:2005.
General information
Color | Other |
Finish | Galvanized Pre-treated |
Material | Wood Stainless steel Mineral wool Steel |
Shape | Rectangle |
Width | 4800 mm |
Height | Bespoke |
Warranty description | 25 year |
Uniclass | |
CAWS | Q40/170 Acoustic fencing Q40/30 Proprietary fencing Q40/430 Proprietary fencing |
Product range |
Specification data - Wood close-boarded fencing systems
Standard | Category B3 rating BS EN 1793-2:1998, Category A3 rating BS EN 1793-1:1998. |
Posts | Timber tuning fork posts with steel spur posts.Guidance for specification option: Standard. Additional steel spur support posts required for heights from 2100–3000 mm. Steel 'I' beams.Steel 'I' beam post, timber clad to ‘rear flange’. |
Post foundations | Set in concrete. |
Rails | Completely flat face (with no horizontal rails).Guidance for specification option:
|
Pales or boards | Interlocking V-tongue and groove boards, 34 x 145 x 4800 mm. |
Fence topping | Required.Guidance for specification option: Security toppings available for all barriers; consult manufacturer and insert requirements. Not required. |
Product Options | Material: Wood, stainless steel and mineral rockwool fibre for Jakoustic® Absorptive Noise Barrier and Jakoustic® Reflective Noise Barrier and wood and steel for Jakoustic® Commercial and Highway Noise Barrier. Size: 2000–4000 mm (height) x 4800 mm (width) for the Jakoustic® Absorptive Noise Barrie and Jakoustic® Reflective Noise Barrier and 1800 mm + (height) x 4800 mm (width) for the Jakoustic® Commercial and Highway Noise Barrier. |
Gates | Automatic. Manual. Safety-glide in-stile operator. Underground operator. |
Height | Guidance for specification option: Insert requirement, up to 3000 mm. |
Finish/ Colour | Manufacturer's standard. Jakoustic Reflective. Guidance for specification option: Natural timber finish, only available for Jakoustic® Commercial and Highway Noise Barrier and Jakoustic® Reflective Noise Barrier. |
Other requirements | None Capping and counter rail Guidance for specification option: Standard for Jakoustic® Plus Absorptive Barrier and Jakoustic® Reflective Noise Barrier and optional for Jakoustic Highway. Steel 'I' beam post Guidance for specification option: Optional for Jakoustic Reflective/Absorptive and standard for Jakoustic Highway. Steel 'I' beam post, timber clad to ‘rear flange’ Guidance for specification option: Optional on any ‘I’ beam system. Timber tuning fork post Guidance for specification option: Standard for Jakoustic Absorptive Barriers and Jakoustic® Reflective Noise Barrier. Additional steel spur support posts required for heights from 2.1–3 m. |
Worked finish | Pressure-treated. |
Noise control | 28 dB (maximum in laboratory conditions) noise reduction. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Guidance for specification option: Europe, South America. |
Country of product manufacture | United Kingdom |
Third party certifications
ISO 9001 Quality Management
ISO 9001:2015 Quality Management System
Literature
Acoustic Fencing and Noise Barriers
Case studies
Acoustic fencing provides noise mitigation for train maintenance depot near Paris
Acoustic fencing provides peace and quiet at a redeveloped residential area in London
Britain's most wildlife-friendly housing development chooses Jacksons' Acoustic Fencing
Jacksons Absorptive acoustic fencing reduces noise impact on local residents for inner city supermarkets
Tennis World uses absorptive acoustic barrier to reduce noise for phase 1 of £400,000 investment
Jakoustic Reflective reduces noise for new housing development

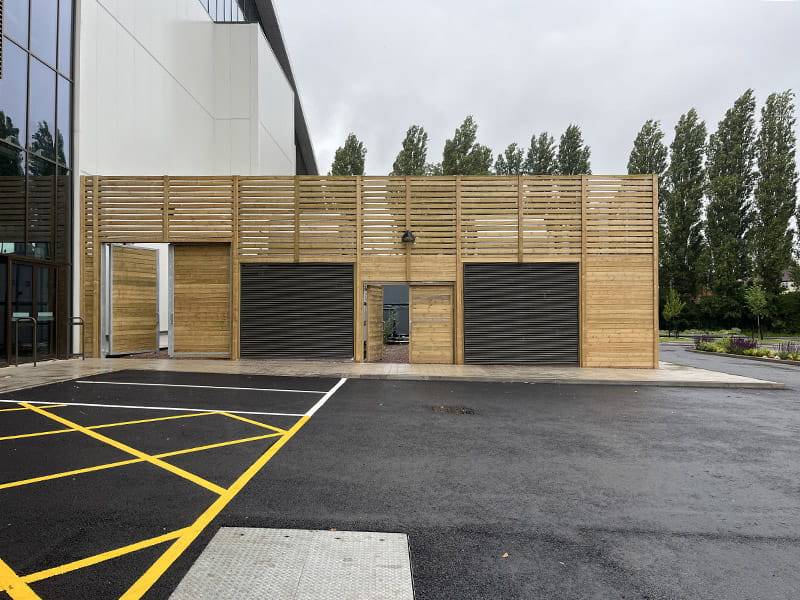

Acoustic barrier for Sandwell Aquatics Centre
