JUTA WP SAM
Verified by manufacturer 4 months ago
BBA Agrément Certificate
Certificate type
Waterproof, self-adhesive, bituminous membrane, composed of self-adhesive SBS polymer-modified bitumen.
Application

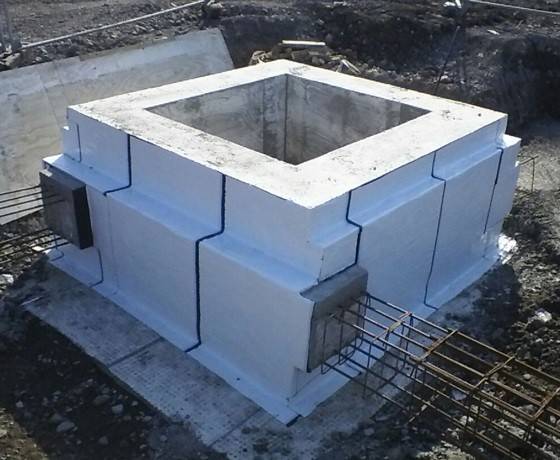

Suitable for the waterproofing of underground structures, and to prevent the ingress of radon.
Description
Waterproof, self-adhesive, bituminous membrane.
Features and benefits:
- Composed of self-adhesive SBS polymer-modified bitumen with an upper surface finish of grey co-extruded polyolefin, and a lower surface finish of siliconized release paper.
- Complies with latest codes of practice as published by the BRE, CIRIA and BSI (BS 8102:2022).
General information
Color | Grey |
Finish | Smooth |
Material | Polyolefin Guidance for specification option: Siliconized release paper. |
Shape | Rectangle Other |
Length | 19050 mm |
Width | 1050 mm |
Height | 1.5 mm |
Warranty description | 60 year |
Uniclass | |
CAWS | J40/40 Self-adhesive bitumen membranes J40/190 Self-adhesive bitumen damp proofing/ tanking J40/180 Self-adhesive bitumen membranes J40/45 Self-adhesive bitumen gas retardant damp proofing/ tanking |
Specification data - Bitumen sheets
Standard | BS 8102, EN 13969 and EN 13707. |
Third-party certification | BBA Certified. |
Form | Self Adhesive Waterproofing membrane. |
Material | |
Bitumen modification | SBS polymer-modified. |
Weight (minimum) | 1500 g/m². |
Thickness (minimum) | 1.5 mm. |
Surface finishes | |
Top | Grey co-extruded polyolefin. |
Underside | Siliconized release paper. |
Product Reference | JUTA WP SAM |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 3.5 kg CO₂ eq/kg Self declared |
Recyclability | 0 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 0 % |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 2 |
Third party certifications
BBA Agrément Certificate
BBA Certificate JUTA WP SAM 20/5820
Literature
JUTA WP-SAM (Waterproof - Self Adhesive Membrane)
