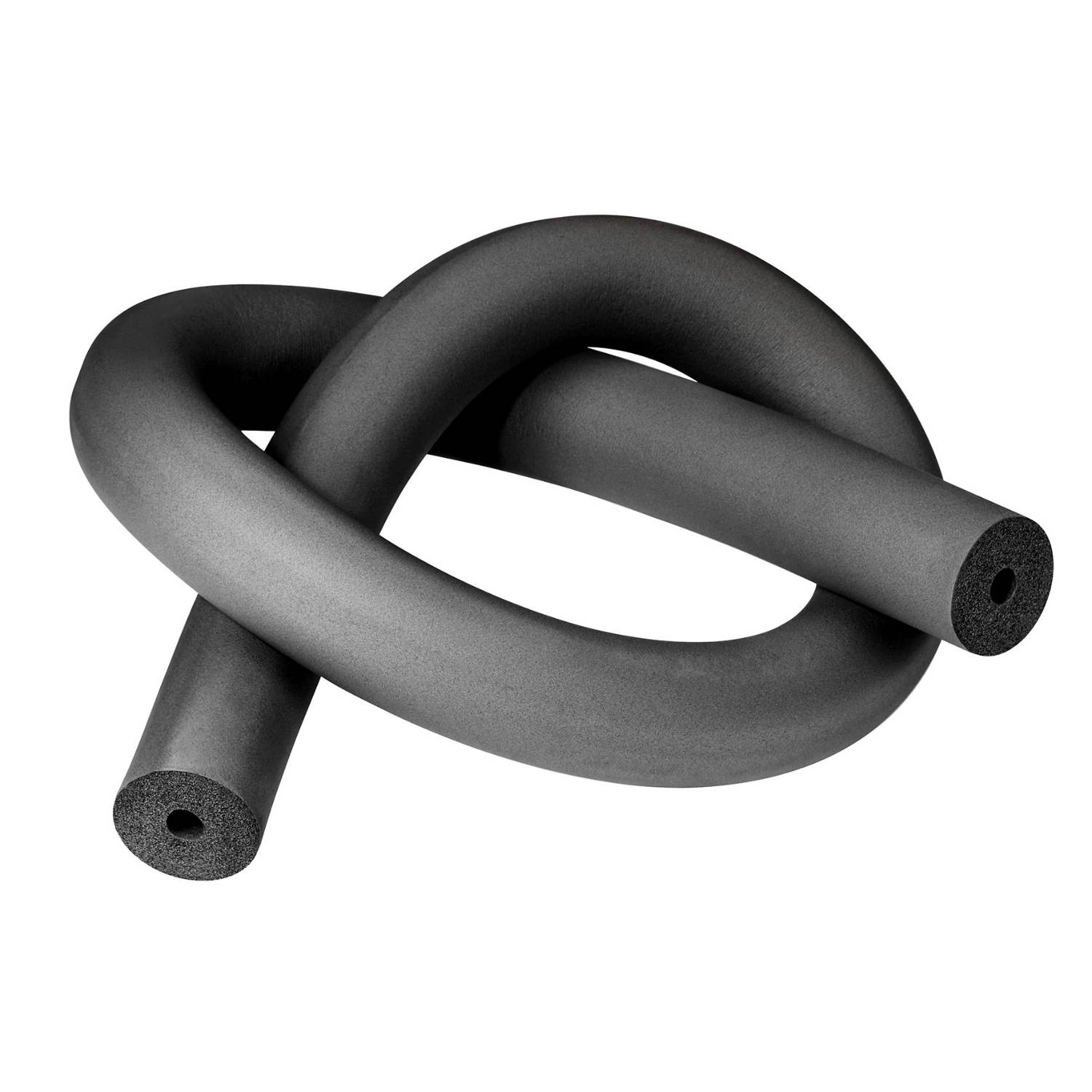

Kaiflex STs2 Tubes - Rubber pipe insulation

Verified by manufacturer 2 months ago

Kaimann Insulation UK

Flexible closed cell rubber pipe insulation.  High emissivity surface finish and in-built water vapour barrier minimizes thickness for condensation control.

Jump to:
BOS
+44 (0) 161 627 3289 Website

Application

This insulation can be used for cold and hot pipes and on different pipe diameters – both in small boiler rooms and in large-scale projects. It reliably prevents condensation and corrosion from forming, particularly in systems featuring alternating temperatures, which are being installed increasingly frequently, and when correctly dimensioned, it simultaneously fulfils the legal requirements for hot water and heat distribution systems. It is used in cooling and air conditioning systems for insulating pipes in highly frequented public and commercial buildings, like airports, large office complexes, hotels, and apartment buildings, as well as in industrial plants and in shipbuilding. Thanks to its antimicrobial and fibre-free structure, Kaiflex ST s2 also meets high hygienic requirements and is especially suitable for insulation in healthcare facilities, such as hospitals.

Description

Flexible closed cell rubber insulation, Kaiflex STs2 reliably prevents against condensation and reduces energy loss. With a water vapour barrier incorporated into the insulation cell structure Kaiflex STs2 retains thermal performance over the entire life of the system.

Kaiflex STs2 tubes are 2 m long and can be supplied unslit for sleeving onto pipes during installation or pre-slit for insulating existing pipework.


In addition to preventing condensation and saving energy, Kaiflex STs2 also performs an acoustic function. With inherent anti-microbial resistance as standard and a Class O fire rated rubber that is dust and fibre free, Kaiflex STs2 can be used in any kind of public, commercial or industrial building.


Features:

  • Closed cell structure with in-built water vapour barrier.
  • Inherently resistant to corrosion.
  • Excellent thermal values minimize energy loss.
  • Flexible, dust and fibre free nature.
  • Inherent resistance to microbial growth.

General information

Color

Black

Finish

Anti-microbial

Matt

Material

Foam

Rubber

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Two year

Uniclass

Pr_80_77_76_58 Nitrile rubber insulationPrimary

Sustainability data

Contains Red List materials

No

Country of material origin

Germany

Country of product manufacture

Germany

Material

Foam

Rubber

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

0 kg CO₂ eq/unit

Self declared

Recyclability

yes

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

3

IFC

IFC2X3

4
