Kestrel Aluminium 75 mm Polyamide Window System - Aluminium Window System
Verified by manufacturer 4 months ago
A window system suitable for all types of buildings.
Application
For residential and commercial applications. Suitable for new build and refurbishment projects.
Description
A window system which allows for construction of open out, side hung and top hung casements, open in tilt before turn, tilt only/ turn only and fixed lights. The 75 mm polyamide window system is designed generally to BS 4873, British standard for aluminium alloy windows.
Construction consists of outer frame and ventilator frames mitred and mechanically jointed using prepared extruded aluminium corner cleats or die cast mechanical corner cleats and die cast mechanical corner chevrons. Infills are secured by clip fit beads externally or internally. Integral mullions and transoms are secured by driving screws into extruded screw ports. Structural coupling mullions and transoms are available to construct larger composite window units. Weather stripping is by purpose designed bubble seal gaskets. Consult the manufacturer's product manual for limitations on frame and vent size and contact the technical department for details of the maximum spans and loadings applicable to the site conditions.
The system will accommodate a range of glazing thicknesses from 24 mm to 32 mm for double and triple glazed units or infill panels. Glass is dry set between TPE/ EPDM bespoke gaskets internally and externally.
Features and benefits:
- Slim sightlines.
- Low u-values.
- Thermal performance.
- Flush internal appearance on casement.
- Ergonomic hardware.
- Commonality of design.
- Mechanical cleats.
- Integral trickle vents.
- Ease of fabrication and installation.
- Low maintenance.
- Single or dual colour option.
General information
Color | Silver Other Manufacturer guidanceAnodizing: Silver AA25 or colours on request. Powder coating: Contact manufacturer for available colours. |
Finish | Anodized Mill Powder-coated |
Material | Aluminium Manufacturer guidanceAluminium alloy 6060/6063 T6, complying with the recommendations of BS EN 12020-2:2016 |
Shape | Square Rectangle |
Length | Bespoke |
Width | Bespoke Manufacturer guidance
|
Height | Bespoke Manufacturer guidanceCasement, top hung: Maximum vent height 1200 mm. Casement, side hung: Maximum vent height 1500 mm. |
Warranty description | Ten year Guidance for specification option: Kestrel Aluminium profiles carry a ten-year warranty. See powder coating guarantee. |
Uniclass | |
CAWS | L10/25 Aluminium windows L10/330 Aluminium windows |
Specification data - Aluminium window units
Standard | To BS EN 12020-2, BS 3987, BS EN 12206-1, BS 6375-1, -2 and -3. PAS24. |
Dimensions and configurations | Manufacturer guidance
|
Product performance | |
Weather performance | |
Air permeability | To BS EN 1026:2016, Class 4. |
Watertightness | To BS 6375-1, Class 9A/ E1350. |
Resistance to wind load | To BS 6375-1, Class C4. |
Durability | |
Operation and strength characteristics | To BS 6375-2.Guidance for specification option: Complies with strength characteristics in accordance with BS EN 14351 Result - Pass. |
Safety | |
Security level | To PAS 24:2016. |
Thermal | |
Whole window U-value | Manufacturer guidanceAs low as 1.2 W/m²K. Consult manufacturer for details. |
Frame | |
Finish as delivered | |
Coating | None.Guidance for specification option: Mill finish. Polyester powder coating to BS EN 12206-1:2004.Guidance for specification option: Single or dual colour. Anodizing to BS 3987:1991.Mill finish. |
Colour | Manufacturer guidanceAnodizing: Silver AA25 or colours on request. Powder coating: Consult manufacturer for details. Dual colour option available. |
Film thickness (minimum) | 60–80 micrometres. |
Ventilator | None.EA2792.EA4069. |
Glazing or infill | |
Standard | Manufacturer guidanceIn accordance with Building Regulations including Document L and BS 6180 where applicable. |
Requirements | Manufacturer guidanceInsert requirements. Will accept IGU and infill panels 24–32 mm thick. |
Hardware | Concealed multi-point locking hardware.Bi-parting shoot bolt locking hardware.Standard friction stays.Heavy duty friction stays.Manufacturer guidanceNominal 13.5 mm cavity accepts most proprietary fittings. Non-handed friction hinges on standard configurations. |
Operation | |
Type | Manual. |
Glazing bead | Square KAS6010 (28 mm double glazed). Square KAS6011 (34 mm double glazed). Square KAS6012 (40 mm double glazed). |
Sub sill | 110 mm Subcill KAS621/623. 150 mm Subcill KAS621/624. 180 mm Subcill KAS621/625. 205 mm Subcill KAS621/626. 250 mm Subcill KAS627. |
Handle finish | Black. White. Satin Chrome. Polished Chrome. Brushed Steel. |
Finish | White. Silver. Black. Manufacturer guidanceVisible fittings/ hardware. |
Corner posts | 90°. |
Jointing | Mechanical corner and transom/ mullion jointing. |
Thermal performance | Polyamide thermally broken profiles - Document L1A, L1B/L2A, L2B compliant. Guidance for specification option: Modular thermal enhancements: Meso, Thermo, Exo, Iono. Consult manufacturer for details. |
Model | Bottom Hung - Open In. Fixed Light. Open out casement - side hung. Open out casement - top hung. Side Hung - Open In. |
Sill | KAS622 152 mm Sill. KAS629 177 mm Sill. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 4.0 kg CO₂ eq/kg Self declared |
Recyclability | Aluminium building products are collected and recycled at end-of-life very efficiently, and the end-of-life recycling rate for aluminium is >90% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 79 % |
Literature

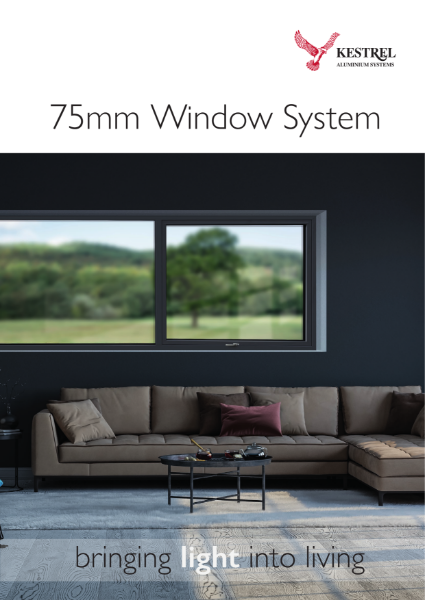

Kestrel 75mm Window System Technical Specification
