Knauf DESIGNLINE - Lamellae System

Name: Knauf DESIGNLINE - Lamellae System
Brand: Knauf Ceiling Solutions Limited
SKU: moSUMtv4MPFZPvpVqmUdGg

Verified by manufacturer 1 day ago

Product description Board type DESIGNLINE acc. to EN 14190 consists of a non-flammable gypsum fiberboard acc. to EN 15283-2 and is veneered with real wood and painted surface during manufacture.

Jump to:

+44 (0)191 518 8600 Website

Application

For interior wall and ceiling applications.

Description

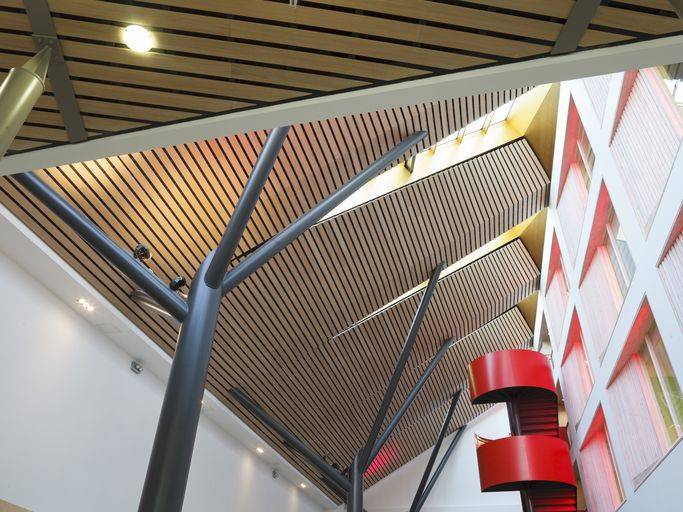

The DESIGNLINE lamellae are based on Knauf's highly compressed and resilient gypsum fibreboards and are finished with real wooden veneer.

Different veneers, shapes, and dimensions, as well as the option to combine them individually, offer freedom of design. Both horizontal and vertical installation are possible. The certified DB-FIX frame mount for walls and ceilings enables quick installation without tools.

Quality

In compliance with EN 14190, the product is subject to an initial test as well as continuous production monitoring in the plant and carries the CE marking

Properties and added value

■ Designline Q, Non-flammable A2-s1, d0

■ Designline R, Not easily flammable B-s1, d0

■ Universally applicable

■ Robust surface

■ Good structural cohesion under the effect of fire

■ Simple processing

■ Low swelling and shrinkage when climatic conditions change

■ Verified non-polluting carrier board

General information

Color	Other
Finish	Wood grain
Material	Wood
Shape	Other Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	- Manufacturer guidance Please refer to manufacturer's guidelines.

Uniclass	Ss_25_25_75_05 Acoustic panel lining systemsPrimary
CAWS	K13/170 Acoustic panel lining K13/170 Acoustic panel lining

Specification data - Acoustic panel lining systems

Battens	KDLF rails.
Panelling	-
Type	DESIGNLINE Q baffle (A2-s1, d0). DESIGNLINE R baffle (B-s1, d0).
Surface material	KD-0035-00-W Oak Select wood veneer. KD-0163-00-W Birch sliced wood veneer. KD-0043-00-W Walnut Select wood veneer. KD-0045-00-W Maple Select wood veneer.
Surface finish	Lacquered matt.
Fasteners	KDLF twist clips.
System accessories	KDLF dampers.

Size	28 x 18 mm. 38 x 18 mm. 48 x 18 mm. 28 x 36 mm. 38 x 36 mm. 48 x 36 mm. 28 x 50 mm. 38 x 50 mm. 48 x 50 mm. Show more Manufacturer guidance DESIGNLINE baffle, W x H.

Sustainability data

Contains Red List materials	No
Country of material origin	Guidance for specification option: Please refer to EPD.
Country of product manufacture	Germany
Material	Wood
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	Guidance for specification option: Please refer to EPD.
Recyclability	Guidance for specification option: Please refer to EPD.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	Guidance for specification option: Please refer to EPD.
