Knauf Insulation - Rocksilk® RainScreen OSCB25 - Cavity Barrier

Name: Knauf Insulation - Rocksilk® RainScreen OSCB25 - Cavity Barrier
Brand: Knauf Insulation Ltd
SKU: 6oGugyxUmTLWcErkQHR5hh

Verified by manufacturer 4 months ago

Knauf Insulation Ltd

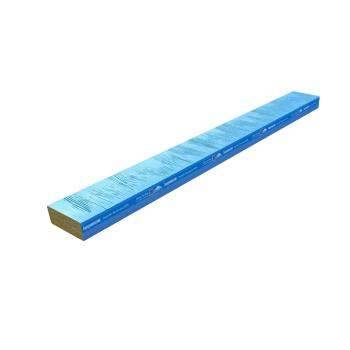

Rocksilk® RainScreen OSCB is a horizontal cavity barrier manufactured from rock mineral wool, shrink wrapped with a reactive intumescent strip, for use in ventilated cavities up to 450 mm.

Jump to:

BOS

+44 (0)1744 766 666 Website

Application

Rocksilk® RainScreen OSCBs are used as horizontal open state cavity barriers in buildings with ventilated cavities. Rocksilk® RainScreen OSCBs contain a reactive intumescent strip which allows ventilation and drainage in a rainscreen cavity. The strip will expand in the event of a fire to fully seal the cavity providing fire resistance, preventing passage of smoke and flames.

Rocksilk® RainScreen OSCBs are also recommended for use against a steel, timber, masonry or reinforced concrete inner leaf where the construction has a ventilated cavity.

Rocksilk® RainScreen OSCBs should be partnered with Rocksilk® RainScreen Firestop Slab which is installed vertically, and Rocksilk® RainScreen Slabs for a complete rainscreen cavity system.

Description

Rocksilk® RainScreen OSCB is a horizontal cavity barrier manufactured from rock mineral wool, shrink wrapped with a reactive intumescent strip, for use in ventilated cavities up to 450 mm. It forms part of a system with Rocksilk® RainScreen Slabs which provides fire resistance for up to 120 minutes integrity and 120 minutes insulation (EI120).

General information

Color	Blue
Finish	Other Guidance for specification option: Blue shrink wrap with coloured tape. Tape colour reflects cavity barrier performance.
Material	Rock mineral wool
Shape	Rectangle Guidance for specification option: Cavity barrier.
Length	1200 mm
Width	100 mm 400 mm
Height	100 mm
