Knauf Solopanel

Name: Knauf Solopanel
Brand: Knauf UK
SKU: nGDQPB6YizggqmrMqfQX5w

Verified by manufacturer 13 hours ago

G8/12/50

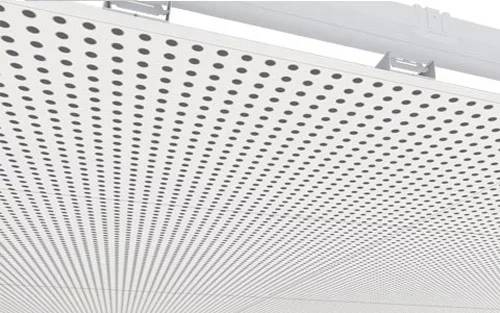

A monolithic, seamless look can be achieved with Knauf Solopanel acoustic boards, suitable for walls and ceilings to create coherence in design, with a wide range of perforation choices.

Jump to:

BOS

0800 521 050 Website

Application

Suitable for walls and ceilings to create coherence in design, with a wide range of perforation choices.

Screw fixing onto steel.

Description

A monolithic, seamless look can be achieved with Knauf Solopanel acoustic boards, suitable for walls and ceilings to create coherence in design, with a wide range of perforation choices.

Features and benefits:

Available with a black or white acoustic fleece backing.
Wall and ceiling mountable; consult manufacturer for wall applications.
No visible joints after finishing.
Repaintable without the loss of acoustics.
Compliance standards: to EN 14190:2014.

General information

Color	White Black Grey
Finish	Primed
Material	Gypsum
Shape	Rectangle Other
Length	1998 mm Guidance for specification option: Boards. 2000 mm Guidance for specification option: Boards. 1980 mm Guidance for specification option: Boards. Bespoke Guidance for specification option: System.
Width	1188 mm Guidance for specification option: Boards. 1200 mm Guidance for specification option: Boards. Bespoke Guidance for specification option: System.
Height	12.5 mm Guidance for specification option: Boards. Bespoke Guidance for specification option: System.

Uniclass	Ss_30_25_10_35 Gypsum board suspended ceiling systemsPrimary
CAWS	K10/50 Suspended ceiling system on metal framing K10/220 Proprietary suspended ceiling system

Product range	Danoline

Specification data - Gypsum board suspended ceiling systems

Classification data
System performance	Acoustic performance.
Linings	Solopanel glass fibre reinforced gypsum board, 2000 x 1200 x 12.5 mm. Manufacturer guidance Length x width x thickness.
Fasteners	Knauf Drywall SN 3.5 x 30 screws. Guidance for specification option: At maximum 300 mm centres (200 mm around board perimeter).
Joint treatment	Joints to be filled with Uniflott.
Finish	Manufacturer's standard. Guidance for specification option: One coat of Knauf Wallboard Primer applied on surface if board to be painted.
Samples required	Not required. Required. Guidance for specification option: Insert requirements; contact manufacturer for more information.
System accessories	Guidance for specification option: Consult manufacturer for options and insert requirements, or omit.
Weight	Boards: 7.4–8.8 kg/m².
Edge profile	UFF.
Board size	1200 x 2000 x 12.5 mm. 1200 x 1980 x 12.5 mm. 1188 x 1980 x 12.5 mm. 1188 x 1998 x 12.5 mm.
Reaction to fire	A2-s1, d0.
Fire performance	N/A.
Backing	Black fleece. Grey fleece. White fleece.
Sound absorption class	0.65 - Class C. Manufacturer guidance Alpha-W (αw) and Sound Absorption Class at 200 mm suspension depth, with no mineral wool.
Surface pattern	Perforation type: circles, 8 & 12 mm, c/c 50 mm. 13.1% perforation coverage.

Sustainability data

Country of material origin	Germany
Country of product manufacture	Germany
Material	Gypsum
Recyclability	Can be recycled, make sure it has no or minimal contamination from non-gypsum based materials as this will affect its recyclability.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Post-recycled content by weight: up to 4%.
