Knurled Pull Handle (HUKP-0101-54) - Door handle
Verified by manufacturer 6 months ago

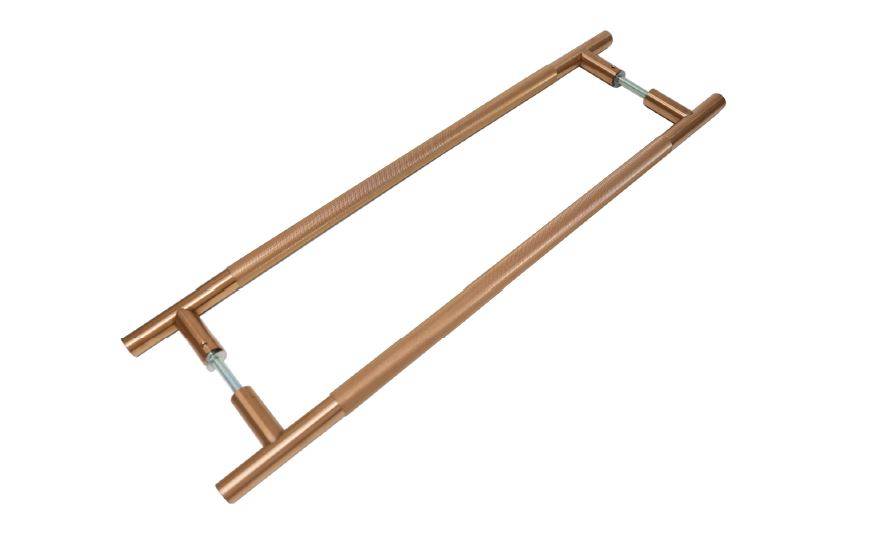

Stainless steel knurled pull handle
Application
To suit doors up to 60 mm thick and glass doors 8-12 mm.
Description
Stainless steel knurled pull handle.
Features and benefits:
- Pull handle knurled design solid section on pillars.
- Overall lengths standard: 400, 600, 900, 1000 and 1200 mm.
- Maximum length 2400 mm, additional pillars required over 1500 mm.
- Fixing types: Bolt through, back to back or secret fixing.
- To suit doors up to 60 mm thick and glass doors 8-12 mm.
General information
Color | Silver Black Gold Bronze Manufacturer guidanceAny RAL colour available to special order. |
Finish | Satin Guidance for specification option: Brass or stainless steel. Polished Guidance for specification option: Brass or stainless steel. Matt Guidance for specification option: Black. |
Material | Stainless steel Steel |
Length | 400 mm 600 mm 900 mm 1000 mm 1200 mm Manufacturer guidanceMaximum length 2400 mm, additional pillars required over 1500 mm. |
Width | 64 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/641 Pull handles P21/42 Pull handles |
Specification data - Pull handles
Classification grades (minimum) | |
Fire resistance | 0. |
Corrosion resistance | 4. |
Form | Straight bar with stand-off spacers. |
Diameter | 19 mm. |
Material and finish | Stainless steel, grade 1.4404 (316L). |
Colour | Satin stainless steel.Polished stainless steel.Matt black.Light bronze.Dark bronze.Guidance for specification option: Special order. Hafele black.Polished brass.Satin brass.RAL colour.Guidance for specification option: Special order. |
Mounting | Bolt through.Back to back.Secret fixing. |
Literature
4. Project - Architectural Pull Handles
