Komfort | Sonik 70S | Single Glazed 28mm Sliding Aluminium Doorsets
Verified by manufacturer 2 days ago
12 mm Toughened Glass | 33 dB (Rw)
12 mm Toughened Glass | 33 dB (Rw)
UKAS
Certificate type
UKAS
Certificate type
UKAS
Certificate type
A single glazed 28 mm-thick offset or pocket sliding door with 70 mm deep perimeter profile and acoustic ratings of up to 35 dB (Rw).
Application
Suitable for all sectors, including but not limited to: Commercial, public, education, government property and healthcare.
Description

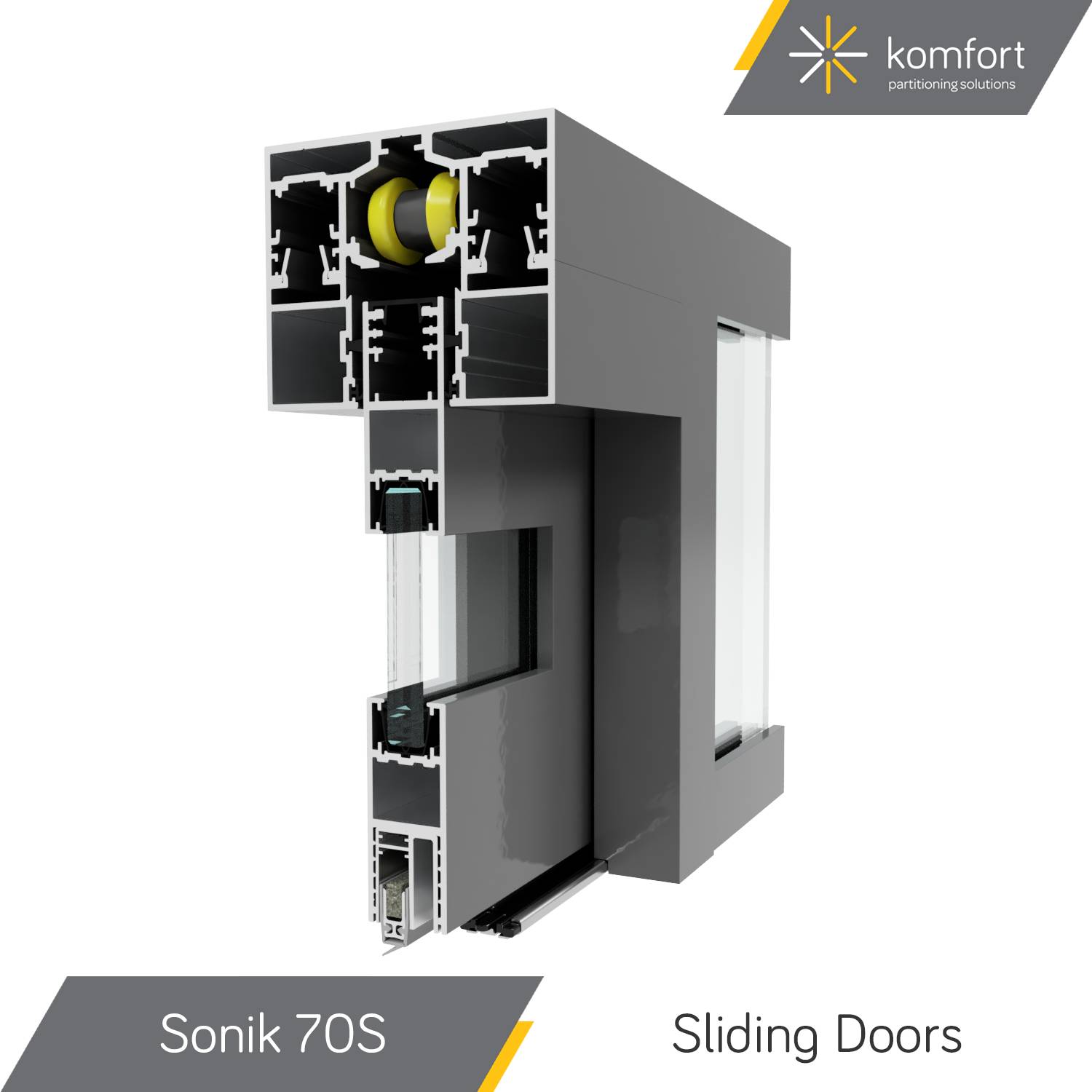

Sonik 70S is Komfort’s 28 mm-thick single glazed acoustic sliding door with a 70 mm deep profile, integrated into Polar 30 for offset sliding or into Polar 100 for pocket sliding.
Features and benefits:
- Profile: 28 mm thick x 70 mm deep.
- Doorset height: up to 3000 mm depending on configuration.
- Acoustic performance: up to 35 dB (Rw) single glazed
- Fire performance: none.
- Glass options: single glazed 12 mm, 10.8 mm or 12.8 mm
- Door options: single or double doorsets, locking or non-locking
- Standard features: soft-close function and automatic drop seal with floor guide
- Other options: applied Kross Glaze bars
- Finishes: polyester powder-coated to any RAL or BS colour code.
- Integration: Polar 30 and Polar 100.
Please consult the Komfort Specification Team for further information and certifications.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Powder-coated Anodized |
Material | Glass Aluminium |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
CAWS | L20/55 Doorsets L20/480 Doorsets |
SKU Code | Not Applicable |
Specification data - Aluminium doorsets
Classification data | |
Configuration | Single glazed 28 mm-thick offset sliding single doorset with soft-close function. Single glazed 28 mm-thick offset sliding double doorset with soft-close function. Single glazed 28 mm-thick pocket sliding single doorset with soft-close function. Single glazed 28 mm-thick pocket sliding double doorset with soft-close function. |
Doorset size | Guidance for specification option: Insert requirement. This configuration is 31 kg/m² excluding ironmongery, please consult Komfort Specification Team for more information. Manufacturer guidanceDoor leaf:
|
Performance | |
Fire resistance | |
Integrity | None. |
Insulation | None. |
Radiation | None. |
Acoustic performance | 33 dB (Rw). UKAS Laboratory Tested in accordance with BS EN ISO 10140-1 and 10140-2. Guidance for specification option: Please refer to certificate number S70S-AP-01. Manufacturer guidancePlease note in an on-site acoustic test, a doorset can result in a 3 dB to 5 dB lesser performance than under laboratory conditions. This can be further affected by ambient noise levels on the receiving side of the test sample and by poorly insulated abutments and voids above and below the doorset which will result in a ‘flanking’ path for audible sound. |
Frame | |
Material | Polar 30 | 40 mm-deep x 72 mm-wide aluminium jamb post and fair ends for single doorset. Polar 30 | 40 mm-deep fair ends for double doorset. Polar 100 | 40 mm-deep x 100 mm-wide aluminium jamb post and fair ends for single doorset. Polar 100 | 40 mm-deep fair ends for double doorset. |
Perimeter seals or inserts | Automatic acoustic drop seal with floor guide activation. |
Finish | |
Coating | Polyester powder-coated, 70–110 µm. |
Texture | Smooth. |
Colour | Guidance for specification option: Insert requirement. Powder-coated to any RAL or BS colour code, Architect to confirm. |
Installation fasteners | To manufacturer's specification. Type, length and spacing to suit substrates. |
Door leaf | |
Thickness | 28 mm. |
Material | Aluminium 6063-T6 and glass. |
Perimeter seals | Perimeter flipper seals and drop down threshold seal. |
Glazing | |
Type | Single glazed with 12 mm toughened glass. |
Manifestation | Guidance for specification option: Insert requirement. Please provide drawings of graphics or manifestation required in accordance with the requirements of Approved Document K, Architect to confirm. |
Beading | |
Type | 28 x 70 mm one-piece extruded aluminium profile. |
Material | Aluminium 6063-T6. |
Finish | |
Coating | Polyester powder-coated, 70–110 µm. |
Texture | Smooth. |
External colour | Guidance for specification option: Insert requirement. Powder-coated to any RAL or BS colour code, Architect to confirm. |
Door accessories | Applied external Kross Glaze transoms. None. |
Hardware | 600 mm x 20 mm diameter cranked back to back pull handles. 720 mm x 25 mm diameter cranked back to back pull handles. 1240 mm x 25 mm diameter cranked back to back pull handles. 1760 mm x 25 mm diameter cranked back to back pull handles. Manufacturer guidancePlease refer to the Sonik 70S Design Guide for more information. |
Accessories | Soft-open function (only available for doors over 1250 mm wide). Not required. Manufacturer guidanceKomfort recommends overhead closers on doors over 2400 mm. |
Operation | Lift-off hinges. Offset pivots. |
Locking | Locking. Non-locking. |
Third-party certification | Third-party-accredited by UKAS-approved/ recognized body. Guidance for specification option: Consult manufacturer for details. |
Sustainability data
Country of material origin | United Kingdom Guidance for specification option: Glass | 100% United Kingdom. Aluminium | 78% United Kingdom, 22% China. Plastic | 100% United Kingdom. |
Country of product manufacture | United Kingdom |
Material | Glass Aluminium |
Recyclability | Up to 100% Glass. Up to 100% Aluminium. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 78 % Guidance for specification option: This figure is the maximum value, please see breakdown below: Glass 13-25% Aluminium 30-78% |
Product certifications
UKAS
S70S-AP-01 | Acoustic Performance | Sonik 70S | 12mm Toughened | 33dB (Rw)
UKAS

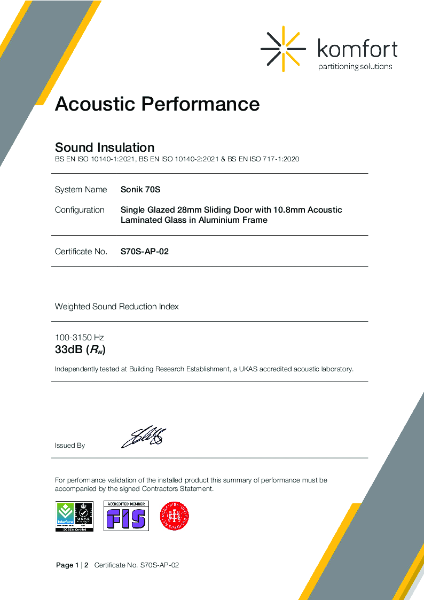

S70S-AP-02 | Acoustic Performance | Sonik 70S | 10.8mm Acoustic Laminated | 33dB (Rw)
UKAS
S70S-AP-03 | Acoustic Performance | Sonik 70S | 12.8mm Acoustic Laminated | 35dB (Rw)
