Kubus II - Pod System
Verified by manufacturer 24 hours ago

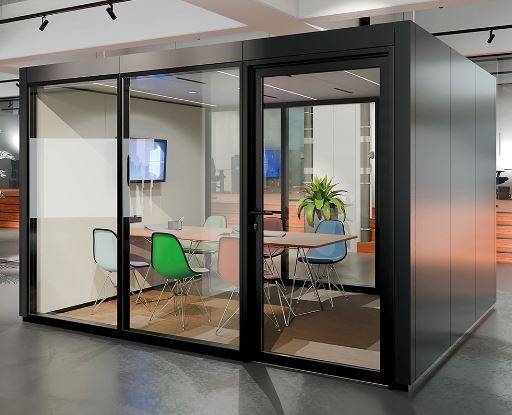

Range of double glazed acoustic pods, designed for offices and meeting spaces.
Application
For commercial applications including offices.
Description
Range of double glazed acoustic pods, designed for offices and meeting spaces.
Supplied with timber mullion/ transom construction (using the optics of the System T), and solid panels with micro-perforated sound absorber.
Features and benefits:
- Available with up to 42 dB acoustic performance.
- Provides standalone areas in a variety of sizes, designed for use as an individual workspace.
- Integrated ventilation system, sprinklers, lighting, presence detectors and double power point.
- Flush-fit glazing.
- Easy to relocate.
- Compact dimensions.
- Wooden surfaces and the use of textiles provide good acoustics and a pleasant working environment.
- Various internal layouts are possible.
General information
Color | Clear Guidance for specification option: Glass. Other Guidance for specification option: Frames: Aluminium: Anodized finish in six colours, or polyester powder-coated to any RAL colour. Timber: Veneered. A wide range of colours/ finishes are also available for solid panels. |
Finish | Anodized Powder-coated Veneered Other |
Material | Aluminium Glass Timber Fabric Stainless steel |
Shape | Rectangle Square |
Length | 2684 mm 3934 mm 5184 mm Bespoke |
Width | Bespoke |
Height | 2300 mm |
Uniclass | |
CAWS | K30/130 Relocatable partition system K30/10 Relocatable partition system |
Specification data - Meeting booths
Classification data | |
Fire performance | |
Reaction to fire: | Class F0. |
Environmental performance | |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer's standard. |
Configuration | |
Shape | Rectangular pod with roof. |
Size | 2684 x 2750 mm. 3934 x 2750 mm. 5184 x 2750 mm. |
Height | 2530 mm. |
Colour | White. Guidance for specification option: Melamine boards. Stone grey. Guidance for specification option: Melamine boards. Light grey. Guidance for specification option: Melamine boards. Oak. Guidance for specification option: Veneer boards. Walnut. Guidance for specification option: Veneer boards. Camira Cara Hillswick EJ190. Guidance for specification option: Fabrics. Camira Cara Merrick EJ048. Guidance for specification option: Fabrics. Camira Cara Shetland EJ191. Guidance for specification option: Fabrics. Other. Guidance for specification option: On request, consult manufacturer for available options and insert requirement. Manufacturer guidanceSolid wall element colour. See 'Board material' below to specify material. |
Furnishings | |
Tables and desks | Manufacturer guidanceConsult manufacturer and insert requirements. |
Accessories | Not required. Convector cooling. Guidance for specification option: Convector cooling, integrated into credenza for connection to the buildings cold water network. Electrical cooling. Guidance for specification option: Self contained, independent electrical cooling integrated into the roof for plug and play use. Sideboard. Guidance for specification option: For storage space. Manufacturer guidanceConsult manufacturer and insert requirements. |
Acoustic performance | 42 dB. Guidance for specification option: DnTw = 36 dB. |
Frame finish | Anodized. Guidance for specification option: Available in six colours. Polyester powder-coated, RAL. Guidance for specification option: Powder-coated to any RAL colour. Insert requirements. Veneered timber. Guidance for specification option: Consult manufacturer for details. |
Glass type | Toughened. |
Glass thickness | 6 + 8 mm. |
Absorber | 0.7 x 4 mm perforation, white RAL 9016. 0.7 x 4 mm perforation, RAL. Guidance for specification option: Insert RAL colour requirement. |
Board material | Melamine. Veneer. Fabric. |
Type | AR40 Door - Rw 37 dB. Guidance for specification option:
ST40 Door - Rw 34 dB. Guidance for specification option:
|
Ventilation | Ceiling integrated, output up to 210 m³/h. |
Lighting | LED pendant light. |
Sustainability data
Material | Aluminium Glass Timber Fabric Stainless steel |
Recyclability | Materials can be recycled after the use phase |
