LAS1007 Single Batwing® Smoke and Acoustic Seal

Name: LAS1007 Single Batwing® Smoke and Acoustic Seal
Brand: Lorient
SKU: fAJwo1r9XuKXYwnw59Z23S

Verified by manufacturer 1 day ago

Lorient

Smoke and acoustic perimeter seal.

Jump to:

+44 (0)1626 834252 Website

Application

Head and jambs of single and double leaf doors.
Suitable for use of fire rated steel doorsets.

Description

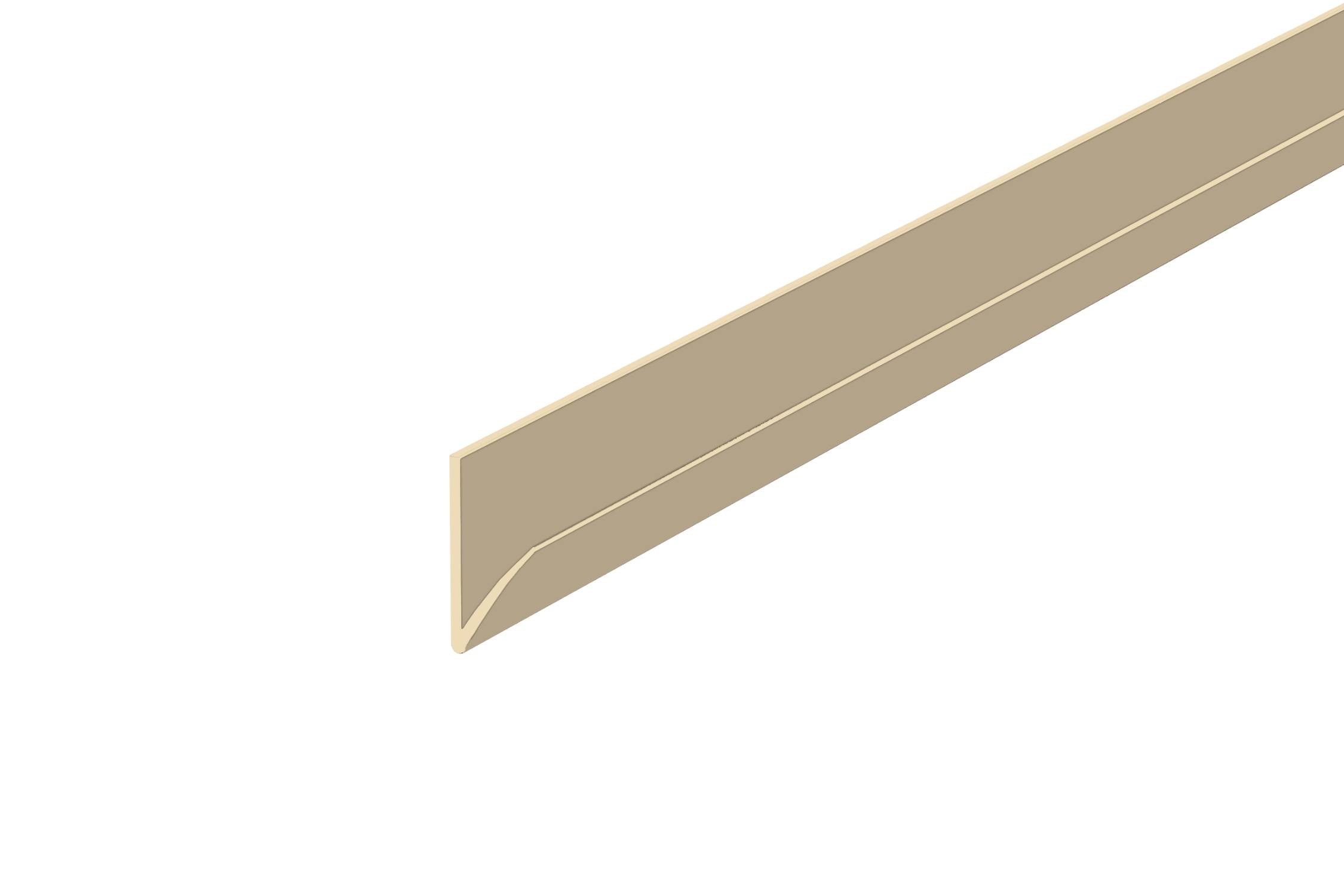

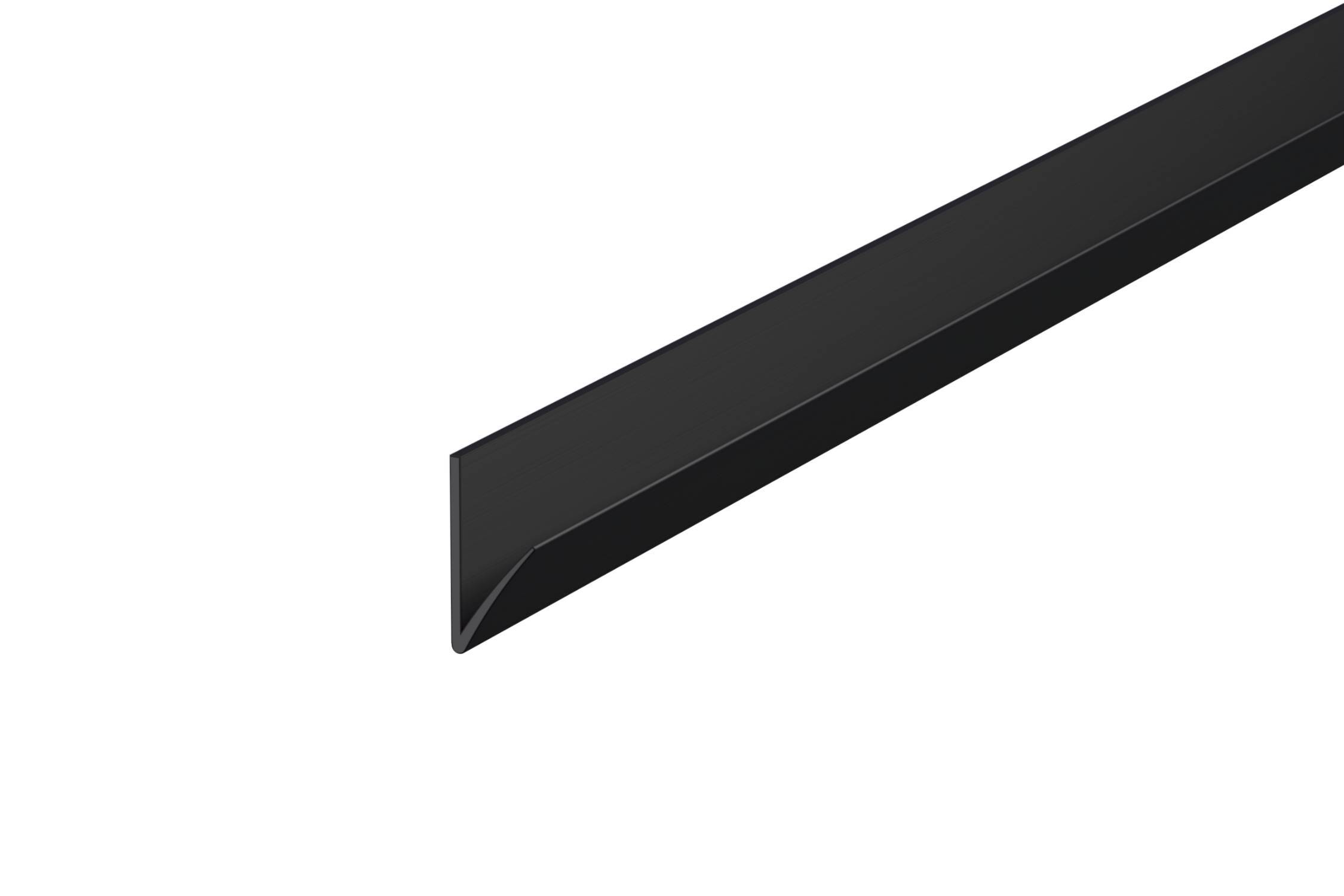

The LAS1007 single Batwing® is a smoke and acoustic perimeter seal for fire-rated steel-based door assemblies / doorsets. Its 14mm high, single fin design creates a tight seal while minimising the force required to open and close the door. Made from a flexible elastomeric material, the fin springs back into shape after every use, ensuring long-lasting performance. Easy to install with minimal disruption, the LAS1007 is suitable for both single and double leaf doors on the head and jambs.

General information

Color	Black White Brown Grey Clear Cream Red Silver Show more Manufacturer guidance Black, white, dark brown, light brown and grey as standard. Silver, cream, red and clear are subject to MOQs. Note: clear Batwing® will not prevent light penetration.
Finish	Smooth
Material	PVC
Shape	Other
Length	1000 mm 2100 mm 5200 mm
Height	14 mm

Uniclass	Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

Specification data - Door and window weatherstrips and seals

Standard	To BS 476-31.1, BS EN 1634-3 and BS 9999 (smoke). To BS EN ISO 10140-2 (acoustic).
Third-party certification	Certifire certification. UL classified.
Functions	Acoustic and smoke seals.
Seal type	Elastomeric.
Size	To suit doors. Guidance for specification option: Standard lengths: 1 m and 2.1 m. Single doorset pack consists of 1 x 1 m and 2 x 2.1 m lengths. Other lengths to special order.
Materials	-
Seals	Co-extruded rigid back PVC with flexible fins.
Carriers	Flexible elastomeric material.
Colour	Black. White. Dark brown. Light brown. Grey. Silver. Cream. Red. Clear. Manufacturer guidance Black, white, dark brown, light brown and grey as standard. Silver, cream, red and clear are subject to MOQs. Clear Batwing® will not prevent light penetration.

Acoustic performance	34 dB.
Duty	Medium.
Durability	100 000 cycles.
Height	14 mm.
Fixing	Self-adhesive tape. Guidance for specification option: Supplied with strong self-adhesive tape. Tested on many surfaces, including MDF – suitable for internal use only.
