LAS4014 si Threshold Plate
Verified by manufacturer 1 day ago
Certifire Certificate
Certificate type

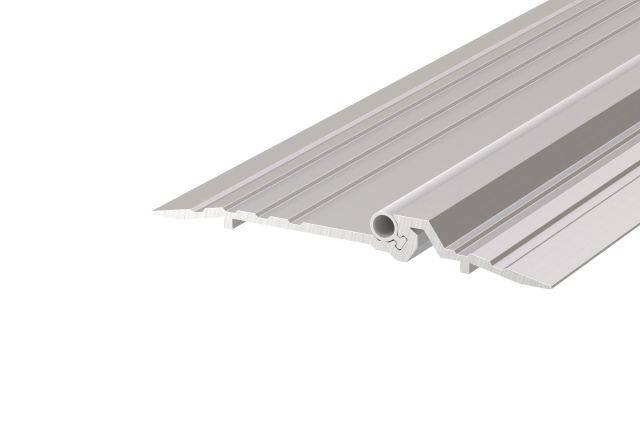

The LAS4014 si threshold plate is a robust, aluminium threshold solution, suitable for use on fire-rated steel doorsets.
Application
Suitable for:
- Single and double leaf outward opening doors.
- Use with practically any drop or door bottom seal and in conjunction with any perimeter seal to provide a total door sealing solution.
- Suitable for use of fire rated steel doorsets.
Description
Featuring a high-performance silicone compression seal, the LAS4014 helps prevent the penetration of rain, draughts, light, and noise, enhancing the comfort and protection of interior spaces. Its stepped design increases the effectiveness of threshold seals by creating a firmer gasket contact, while the durable anodised finish provides a sleek and resilient aesthetic.
Features and benefits:
- Can increase the effectiveness of threshold seals by creating a firmer gasket contact.
- Durable anodized aesthetic finish.
- High performance silicone compression seal helps resist rain, light, dust and noise penetration.
General information
Color | Silver Guidance for specification option: As standard |
Finish | Powder-coated Guidance for specification option: On request. Consult manufacturer for details. Anodized |
Material | Aluminium Silicone |
Shape | Other |
Length | 1000 mm 2100 mm |
Width | 125 mm |
Height | 13 mm |
Uniclass | |
CAWS | L20/20 Wood flush doors L20/230 Wood flush doors L20/25 Wood panelled doors L20/250 Wood panelled doors L20/270 Wood doors L20/280 Doors L20/30 Wood doors L20/310 Wood door frames L20/330 Wood door frames L20/370 Door frames L20/410 Wood doorsets L20/420 Wood doorsets L20/430 Wood doorsets L20/480 Doorsets L20/50 Wood door frames L20/52 Wood door frames L20/55 Doorsets P21/60 Threshold weatherstrip P21/850 Threshold weatherstrip |
Specification data - Door threshold weatherstrips and seals
Standard | Smoke: BS 476-31.1: 1983 at ambient temperature. |
Third party certification | Certifire CF5179. |
Functions | Weather, draught, light and noise seals. |

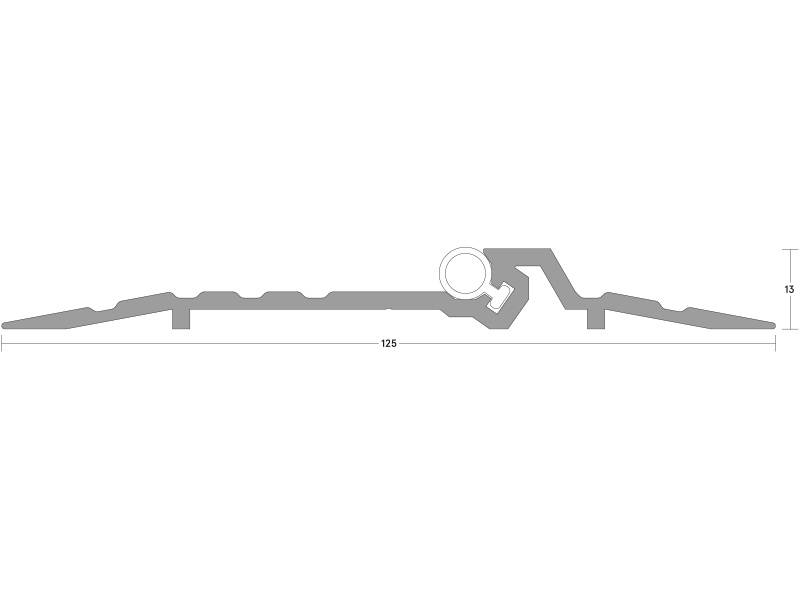

Size | 125 x 13 mm. |
Carriers | Anodized aluminium. |
Colour | Black.Bronze.Light bronze.Silver. |
Length | 1000 mm. 2100 mm. |
Finishes | Black anodized aluminium. Guidance for specification option: On request. Consult manufacturer for details. Bronze anodized aluminium with black silicone rubber gasket. Guidance for specification option: Standard. Light bronze anodized aluminium. Guidance for specification option: On request. Consult manufacturer for details. Powder-coated. Guidance for specification option: On request. Consult manufacturer for details. Silver anodized aluminium with grey silicone rubber gasket. Guidance for specification option: Standard. |
Sustainability data
Country of product manufacture | United Kingdom |
Material | Aluminium Silicone |
Third party certifications
Literature
Literature type
Lorient Architectural Seals
LAS4014 si datasheet
