Lead Lined Panels - Gypsum - Radiation Shielded Lead Lined Panel
Verified by manufacturer 2 days ago
UK-manufactured lead lined gypsum panels for walls and ceilings, providing continuous radiation shielding with RPA-specified lead thicknesses and full joint protection systems.
Application
Suitable for X-ray rooms, CT suites, dental surgeries, veterinary practices, and hospital imaging areas where walls and ceilings require effective radiation shielding to protect staff and patients.
Description
Envirotect’s radiation shielded lead lined gypsum panels are high-pressure bonded and manufactured in the UK to deliver dependable protection against X-ray exposure. Supplied with lead battens or lead strips, the system ensures continuous shielding across joints, corners, walls, and ceilings, with lead thickness specified by a Radiation Protection Advisor to suit the required level of protection.
Features and benefits:
- High-pressure bonded lead lining for effective radiation shielding.
- Available in plasterboard, plywood, or MDF substrates.
- Manufactured to bespoke sizes or standard 600 x 2400 mm full board or 600 x 1200 mm half boards.
- Lead thickness specified by RPA from 1.32 mm (Code 3) to 3.55 mm (Code 8).

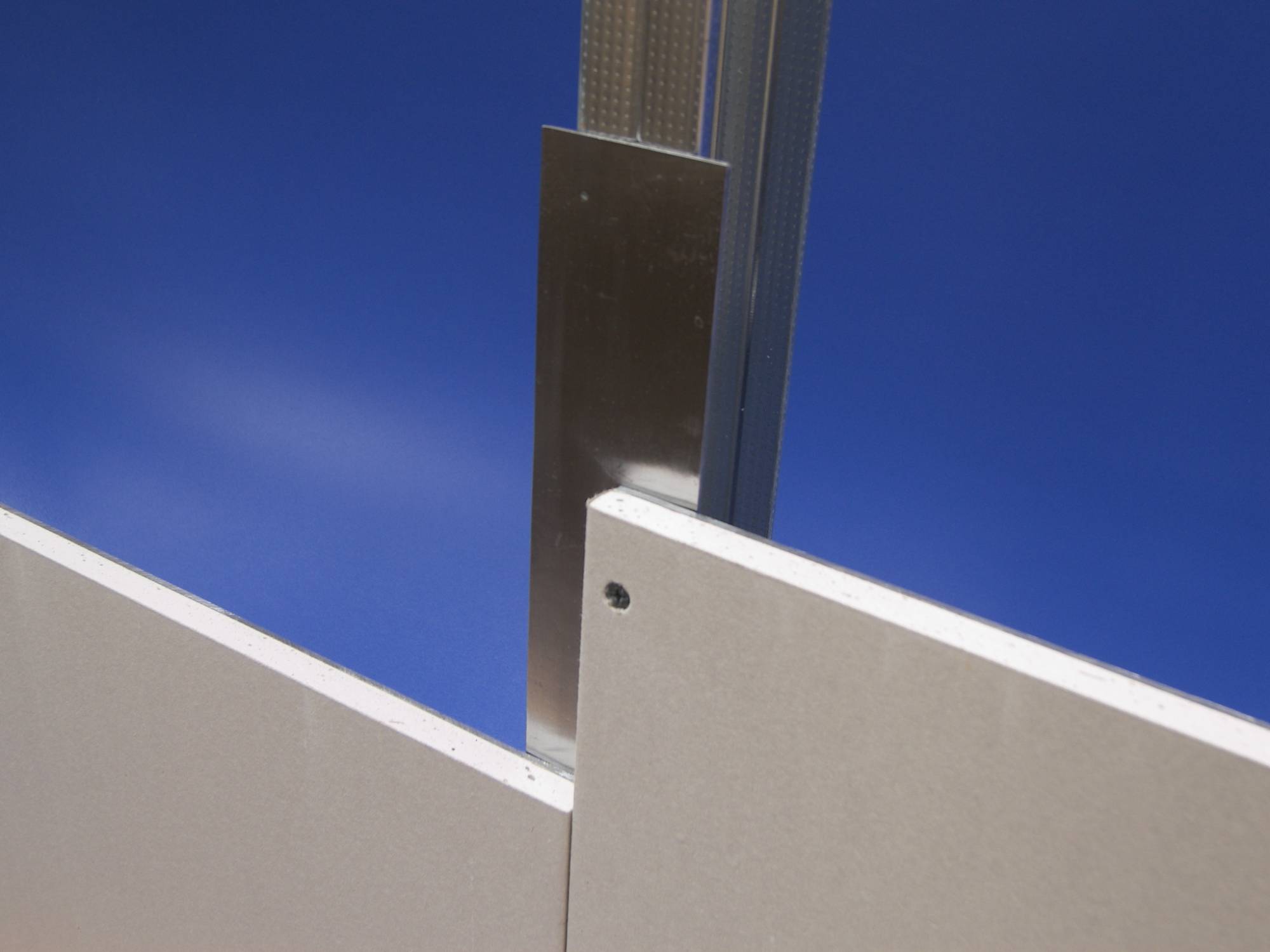

- Supplied with lead battens for solid wall and ceiling installations.
- Lead strips and fillets ensure shielding at joints and corners.
- Continuous lead coverage across board joints.
- Suitable for metal or timber stud walls.
- Compatible with brick and block wall constructions.
- Manufactured to high standards in the UK.
General information
Color | Brown Grey |
Finish | Unfinished |
Material | Gypsum Lead |
Shape | Rectangle Square |
Length | 2400 mm 1200 mm Bespoke |
Width | 600 mm Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | K13/160 Proprietary K13/160 Proprietary K10/415 Gypsum plasterboard |
Specification data - Lead-lined gypsum boards
Classification data | |
Properties | |
Size | 600 x 2400 mm. 600 x 1200 mm. Bespoke. Guidance for specification option: Consult manufacturer and insert requirements. |
Overall thickness | Manufacturer guidanceConsult manufacturer and insert requirements. |
Lead thickness | 1.32 mm (green). 1.80 mm (blue). 2.24 mm (red). 2.65 mm (black). 3.15 mm (white). |
Colour and finish | Unfinished. |
Accessories | Not required. Lead fillets. Guidance for specification option: 50 mm wide supplied in rolls. Lead battens. Guidance for specification option: Laminated lead/plywood batten 50 mm for installation with masonry walls or where the screw penetration needs to be avoided. |
Sustainability data
Contains Red List materials | Yes |
Country of product manufacture | United Kingdom |
Material | Gypsum Lead |
