Lever Handles - DG.135.DR

Name: Lever Handles - DG.135.DR
Brand: 3v Architectural Hardware Ltd
SKU: mxvdCaQLKWG73YaKHsttHJ

Verified by manufacturer 5 months ago

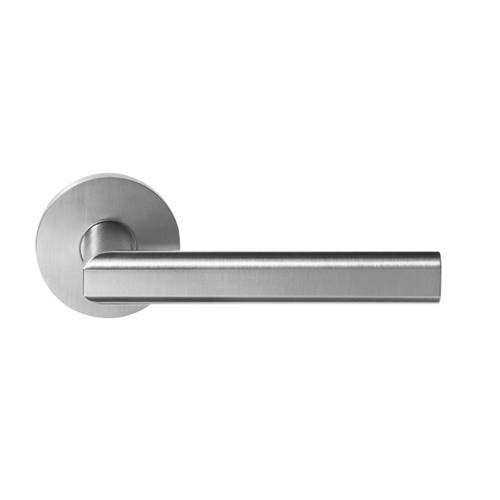

Satin stainless steel straight lever handles on 55 mm diameter concealed fixing spring assisted ball bearing roses.

Jump to:

Application

Suitable for a wide range of applications including residential, commercial, retail, education and healthcare.

Satin stainless steel straight lever handles on 55 mm diameter x 10 mm concealed fixing spring assisted ball bearing roses.

Features and benefits:

Special roller race ball bearing, spring assisted self centering
Warp resistant solid square spindle of hardened and galvanized steel
Precise finished brushed satin stainless steel, formed surface, secure fitting back to back TORX® fixing bolts
Can be produced in a variety of finishes depending on the application

Color	Black Guidance for specification option: Flat matt black. Bronze Guidance for specification option: Light and dark bronze. Gold Silver Other Guidance for specification option: Colour coated.
Finish	Satin Guidance for specification option: Stainless steel and brass. Polished Guidance for specification option: Stainless steel and brass. PVD Matt Antiqued Guidance for specification option: Brass.
Material	Stainless steel Bronze Brass
Shape	Other
Length	128 mm
Width	17 mm
Height	59 mm
Warranty description	25 year

Uniclass	Pr_30_36_59_25 Door lever handle setsPrimary
CAWS	P21/38 Lever handles P21/610 Lever handles

Style	Flat pattern.
Size	20 mm diameter.
Material and finish	Satin stainless steel. Polished stainless steel. Light bronze. Dark bronze. Flat matt black. Polished brass. Satin brass. Antique brass. Colour coated. PVD.
Colour	- Manufacturer guidance Colour coated finish: Consult manufacturer and insert requirements.
Mounting	Sprung rose with hidden screw fixing.

Contains Red List materials	No
Country of material origin	Germany
Country of product manufacture	Germany
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0 Self declared
Recycled content As defined in clause 7.8 of BS EN ISO 14021	100 %
