Lever Handles - DG.807.DR
Verified by manufacturer 5 months ago

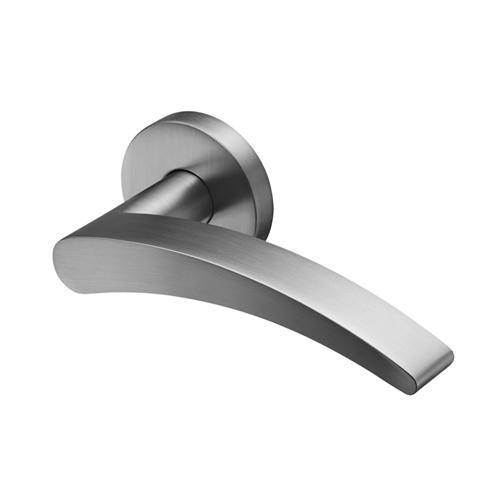

Satin stainless steel lever handles on 55 mm diameter concealed fixing spring assisted ball bearing roses.
Application
Suitable for a wide range of applications including residential, commercial, retail, education and healthcare.
Description
Satin stainless steel lever handles on 55 mm diameter x 10 mm concealed fixing spring assisted ball bearing roses.
Features and benefits:
- Special roller race ball bearing, spring assisted self centering
- Warp resistant solid square spindle of hardened and galvanized steel
- Precise finished brushed satin stainless steel, formed surface, secure fitting back to back TORX® fixing bolts
- Can be produced in a variety of finishes depending on the application
General information
Color | Black Guidance for specification option: Flat matt black. Bronze Guidance for specification option: Light and dark bronze. Gold Silver Other Guidance for specification option: Colour coated. |
Finish | Satin Guidance for specification option: Stainless steel and brass. Polished Guidance for specification option: Stainless steel and brass. PVD Matt Antiqued Guidance for specification option: Brass. |
Material | Stainless steel Bronze Brass |
Shape | Other |
Length | 133 mm |
Width | 22 mm |
Height | 60 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | P21/38 Lever handles P21/610 Lever handles |
Specification data - Door lever handle sets
Style | Curved. |
Size | 22 mm.Guidance for specification option: Handle width. |
Material and finish | Satin stainless steel.Polished stainless steel.Light bronze.Dark bronze.Flat matt black.Polished brass.Satin brass.Antique brass.Colour coated.PVD. |
Colour | Manufacturer guidanceColour coated finish: Consult manufacturer and insert requirements. |
Mounting | Sprung rose with hidden screw fixing. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0 Self declared |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Literature
Vieler Lever Handles
