Lewis Deck Floor - Steel and Concrete composite floor deck

Name: Lewis Deck Floor - Steel and Concrete composite floor deck
Brand: CDI Innovative Construction Materials Ltd
SKU: bnmWNbFCSzG7hbAaV9af46

Verified by manufacturer 2 months ago

CDI Innovative Construction Materials Ltd

Third party certifications:

EPD
Certificate type
UK Conformity Assessed (UKCA)
Certificate type

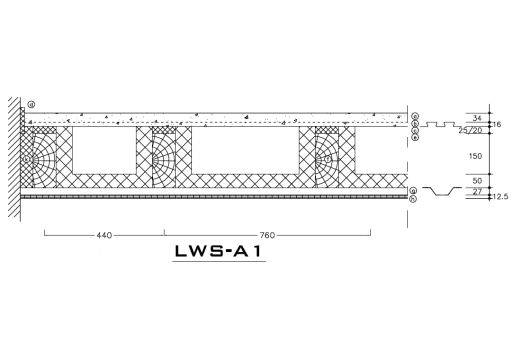

Lewis Dovetail Metal Deck concrete composite acoustic floor installed over timber joists. The floor build-up has a number of variables for achieving different acoustic and fire resistance results.

Jump to:

+44 (0)1388 728833 Website

Application

Sound and fire-resistant floors separating compartments.
Fire-resistant floors for high-risk areas.
Water-resistant floors/ tiled floors on timber in bathrooms, toilets and kitchens.

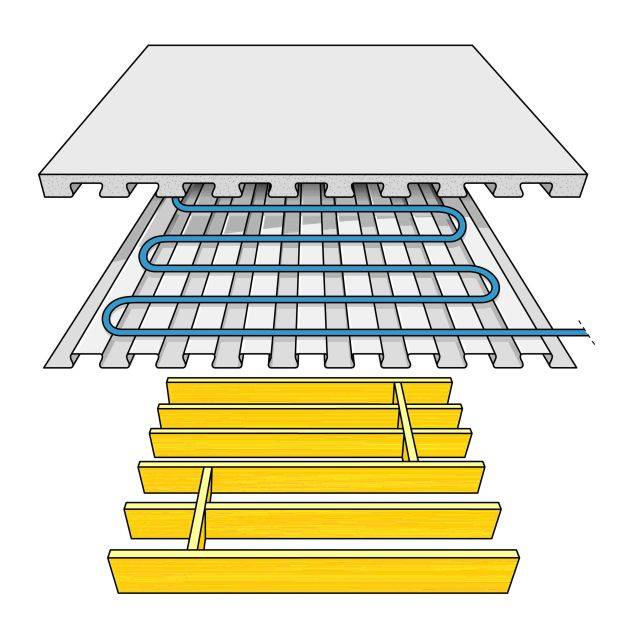

Underfloor heating on timber joists or steel beams.
Finished floor ready to accept ceramic tiles, terrazzo, tiles natural stone or other floor coverings.
Raised high-stability floors in shops, restaurants and offices.
'Inter-connected structure' for floors with inadequate strength and/ or rigidity.
Structural, acoustic and fire-rated floors within light gauge steel load-bearing framed buildings.
Concrete floors within modular buildings, traditional build, timber frame, SIPs or ICF building systems.
Load bearing and vibration-proof plant room, dance hall and gym floors.

Description

Lewis sheets are rolled, self-supporting, 16 mm deep, dovetailed profile steel reinforcement sheets which are used for shuttering and reinforcing lightweight concrete floors of limited thickness on timber or steel floor framing.

Features and benefits:

Simple to use due to the special rolled profile.
Can be laid directly onto floor joists or steel beams. Timber flooring may be omitted, resulting in savings on floor height and weight.
Fire resistance ratings of 60, 90 and 120 minutes.
Airborne and impact sound transmission values to Building Regulations (England and Wales), Approved Document E.
Increased strength and rigidity of the interconnected floor system results in an extra load-bearing capacity of up to 30% for the floor as a whole.
Water-resistant structural flooring.
The profile allows air circulation essential for timber preservation.
Total floor thickness as low as 36 mm, acoustic floors 50 mm.
High load-bearing capacity combined with a low dead load of 0.9 kN/m² (at 50 mm).

General information

Color	Silver
Finish	Galvanized
Material	Steel
Shape	Other Trapezoid Triangle
Length	Bespoke 1300 mm 1900 mm 2100 mm 2500 mm 1220 mm 1530 mm 1830 mm 2000 mm Show more
Width	630 mm
Height	16 mm
Warranty description	Guidance for specification option: Ten-year project specific warranty on material available by request.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary Ss_30_12_85_16 Composite steel and concrete deck systems
CAWS	E30/240 Proprietary prefabricated reinforcement G10/176 Profiled sheet for shuttering/ composite floor slabs K11/27 Acoustic separating floor system M10/392 General reinforcement K11/295 Floating floor system K11/275 Acoustic separating floor system G30/110 Metal profiled sheet decking E60/210 Floor E20/225 Permanent formwork for suspended floors

Specification data - Steel profiled sheet

Standards	To EN 1090. Guidance for specification option: With Declaration of Performance (DoP) and CE Mark as required by the Construction Products Regulation.
Material standard	To BS EN 10346.
Designation	S320GD + Z100 N-A-C.
Thickness	0.5 mm. Guidance for specification option: Sheet thickness. Total floor thickness from 36 mm up to 50 mm for acoustic floors.
Profile	-
Form	Trapezoidal, dove tailed.
Height	16 mm.
Valley width	26/30 mm.
Trough width	34/38 mm.
Cover width	630 mm.

Length	1220 mm. 1300 mm. 1530 mm. 1830 mm. 1900 mm. 2000 mm. 2100 mm. 2500 mm. Guidance for specification option: Standard stock lengths. Show more
Acoustic performance	A1.
Fire performance	60 minutes. 90 minutes. 120 minutes.

Sustainability data

Contains Red List materials	No
Country of material origin	Netherlands
Country of product manufacture	Netherlands
Material	Steel
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 % Guidance for specification option: 20% typical for steel products.
Expected Life	Lifetime
