Verified by manufacturer 26 days ago

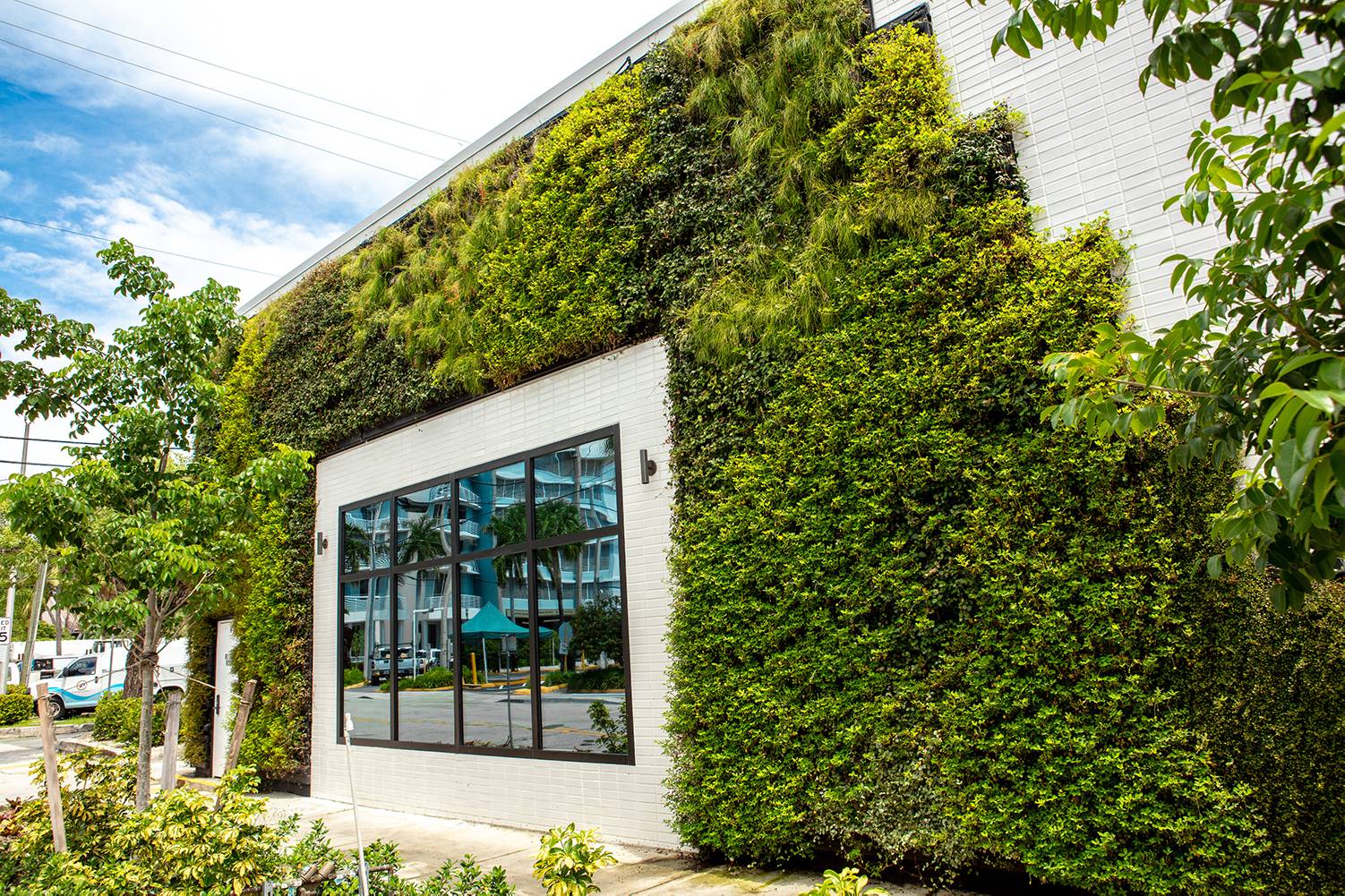

Lightweight modular cassette sustainable living wall system for creating vertical green walls. Water saving, uses capillary action and provides instant coverage.
Suitable for various vertical landscaping applications, including:
Lightweight modular cassette sustainable living wall system for creating vertical green walls. Water saving, uses capillary action and provides instant coverage.
Features and benefits:
Watering:
Color | Green |
Finish | Other |
Material | Vegetation |
Shape | Square |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year |
Uniclass | |
CAWS | Q31/292 Prefabricated plant containers Q32/275 Prefabricated plant containers |
Thermal insulation | Thermal and sound insulation are provided. |
Wall mounting | |
Support structure | Can be secured by an aluminium frame. |
Modular panels | |
Form | Modular cassette units. |
Assembly | Pre-planted. |
Irrigation | Equipped with modern automation technology; the feeding of the plants with water and nutrients from the duct profile is ensured by an integrated irrigation and drainage system. |
Planting | Plant cassettes are exchangeable, and a wide selection of plants is available, allowing for design freedom. P9 to P12 plants for instant coverage. |
Weight | Maximum of 35/ 40 kg/m² (when fully saturated). Manufacturer guidanceLoad (including plants and water). |
Combustible | false Manufacturer guidanceNon-flammable. |
Contains Red List materials | No |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
Recyclability | 100%. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
