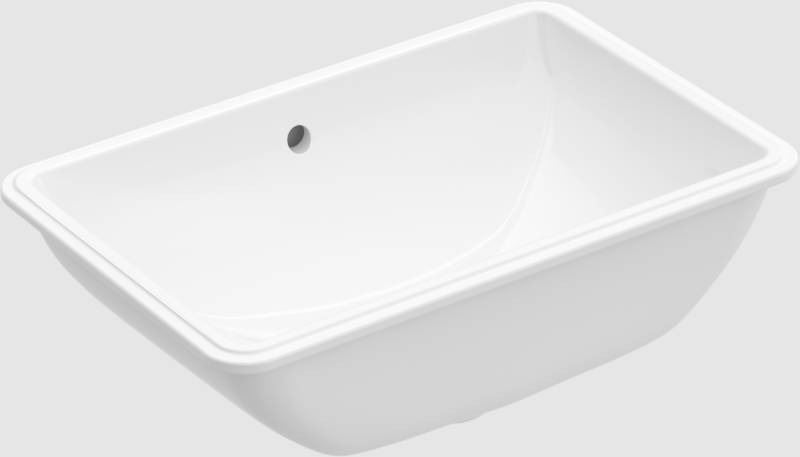

Lunea Undercounter Washbasin 512253
Verified by manufacturer 8 months ago
Rectangular under counter washbasin.
Application
Surface mounted.
Description
Rectangular under counter washbasin.
Features and benefits:
- Sanitary ceramics.
- The hole for the washbasin can only be cut out using the original washbasin because tolerances of several millimeters are possible.
- Fastening set included.
- Complies with EN 31 and EN 14688.
General information
Color | White |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 535 mm |
Width | 335 mm |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Integral washbasins and vanity tops
Form | Single bowl. |
Materials | |
Basins | |
Body | Sanitary ceramic. |
Finish and colour | White alpin, gloss. |
Size | |
Basins | 535 x 335 mm. |
Water supply, overflow and waste holes | |
Water supply | No tap holes.Guidance for specification option: Without tap hole area. |
Overflow | Overflow hole.Guidance for specification option: With overflow. |
Weight | 10.18 kg. |
Sustainability data
Material | Ceramic |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 2 |
 IFC | - | 1 |
 OBJ | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
 ARCHICAD | - | 1 |
