M2000 Flow Measurement Device
Verified by manufacturer 6 days ago
DN50
DN50
Stainless steel metering station.
Application
- WRAS Approved for drinking water applications in sizes DN65 to DN150.
- For use with test points.
Description

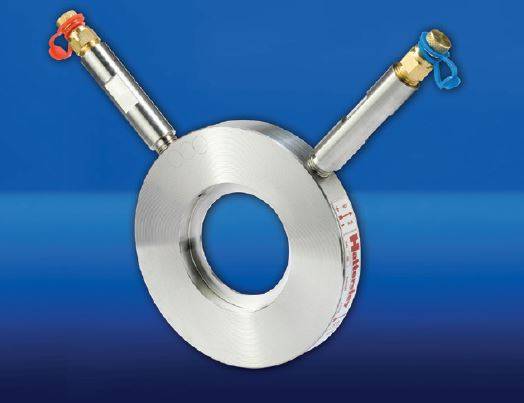

Stainless steel metering station.
Features and benefits:
- Compact, wafer design for fitting in tight spaces.
- Accurate flow measurement.
- Supplied with red and blue test points for upstream and downstream port identification.
- Accuracy of flow measurement at normal velocities is ±5%.
- WRAS Approved for drinking water applications in sizes DN65 to DN150.
- Outside diameter locates metering station centrally on the relevant BS EN 1092-2 PN16 flange bolting.
- Compatibility with other flanges available.
- Use with Figure MH733 to make Commissioning Set MH2733.
- Flow charts available.
General information
Color | Yellow Guidance for specification option: Test point. Silver Guidance for specification option: Orifice plate and extension sleeve. Red Guidance for specification option: Upstream test point marker. Blue Guidance for specification option: Downstream test point marker. |
Material | Stainless steel |
Uniclass | |
CAWS | S14/490 Water metering valves |
Specification data - Flow-measuring valves
General requirements | Test points. |
Standard | To BS 7350: 1990. |
Arrangement | 1. |
Material | Stainless steel grade 316L to BS EN X2 CrNiNo17-12-2 and ASTM A276-316L. |
Connections | Orifice plate fitted between relevant BS EN 1092-2 PN16 flange bolting.Guidance for specification option:
|
Accessories | Not required.Flow charts.Guidance for specification option: Available on request. |
Third party certification: | WRAS Approved. Guidance for specification option: For drinking water applications in sized DN65 to DN150. |
PressureRange | Temperature: -10 to +120°C: 16 bar. Guidance for specification option:
Manufacturer guidanceTest pressures: Shell (24 bar). |
Inlets/outlets diameter | DN50. |
Dimensions | 20 x 119 x 109 x 53.1 mm. Guidance for specification option: Tapping position angle 90°. Manufacturer guidanceNominal A x B x C x D. |
Weight | 1.4 kg. |
Integral accessories | Figure 631 test points and extensions. Guidance for specification option:
|

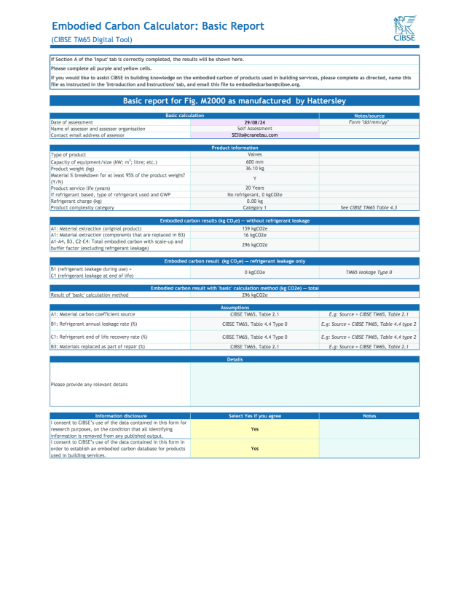

Sustainability data
Material | Stainless steel |
Recyclability | Recycle locally |
Expected Life | 20 year |
