Manhattan Constellations | Concrete Block Paving
Verified by manufacturer 3 months ago
Virgo
Virgo
EPD
Certificate type
Signature Mixes
Application
Suitable for:
- Pedestrian areas and areas with occasional vehicular traffic.
- Paved areas in both residential and commercial developments.
Description

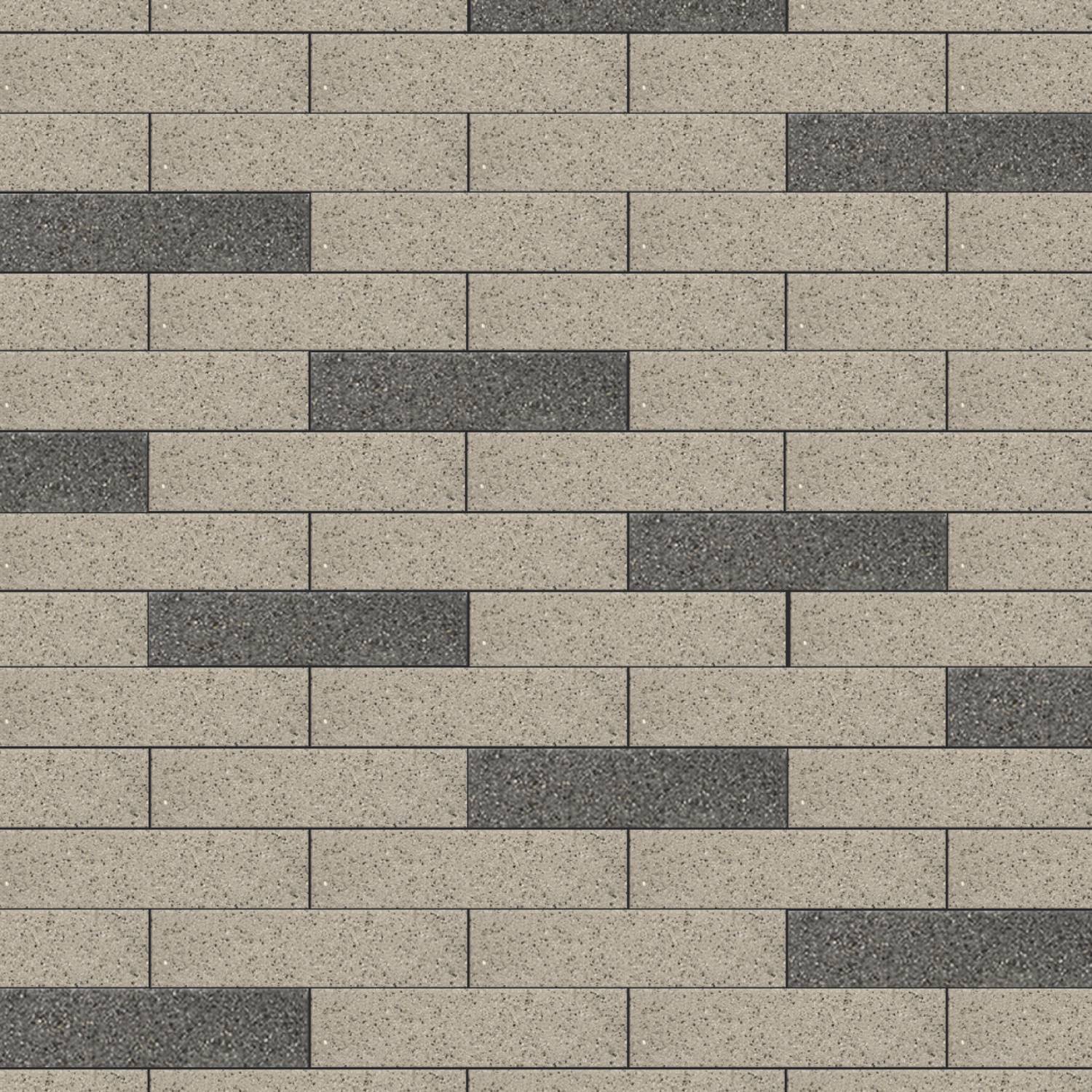

Manhattan offers a contemporary and minimalistic feel. The linear design of the product is accentuated by the sparkling granite aggregate in its surface, giving it a unique and modern look. Manhattan is a hard-wearing product that is perfect for use in both residential and commercial developments, making it a versatile and practical choice for any project.
Features and benefits:
- Manufactured with sparkling granite aggregates.
General information
Finish | Manufacturer guidanceGranite Aggregate |
Material | Concrete Guidance for specification option: Precast concrete. |
Shape | Rectangle |
Length | 500 mm 600 mm |
Width | 125 mm 150 mm |
Height | 80 mm 140 mm |
Uniclass | |
CAWS | Q24/113 Conventional concrete block paving overlay Q24/110 Conventional concrete block paving Q24/112 Conventional concrete block paving with bound base Q24/10 Conventional concrete block paving |
Specification data - Concrete paving blocks
Standard | To BS EN 1338.Manufacturer guidanceInstalled to BS 7533-3. |
Physical properties | |
Finish | Textured granite aggregate. |
Profile | |
Paver type | Regular plan form. |
Arrises | Chamfered. |
Dimensions and associated tolerances | |
Nominal sizes | 500 x 140 x 125 mm.600 x 150 x 80 mm.Mixed size pack.Guidance for specification option: Includes:
|
Tolerances on diagonals | To BS EN 1338. |
Weathering resistance | Class 3. |
Abrasion resistance | Class 3. |
Slip resistance | Extremely low: (>75 USRV). |
Skid resistance | Extremely low: (>75 USRV). |
Strength | >3.6 MPa. |
EnergyUsed | 100%. |
WaterUsed | 100%. |
BREEAM rating | In accordance with the Green Guide to Specification. |
Surface finish | Hard-wearing layer with a minimum of 4 mm and >350 kg/m³ cement. |
Sustainability data
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Concrete Guidance for specification option: Precast concrete. |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidance
|
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | Manufacturer guidanceNot less than 6% |
Third party certifications
Third party certifications
EPD
Environmental Product Declaration (EPD)- Fusion 80mm, Hydropave Fusion, Manhattan 80mm
