Manhattan Constellations | Concrete Block Paving

Name: Manhattan Constellations | Concrete Block Paving
Brand: Tobermore
SKU: 3KG8Ns4aPThJcGbQA8Wf8B

Verified by manufacturer 3 months ago

Pavo

Tobermore

Third party certifications:

EPD
Certificate type

Signature Mixes

Jump to:

+44 (0)844 800 5736 Website

Application

Suitable for:

Pedestrian areas and areas with occasional vehicular traffic.
Paved areas in both residential and commercial developments.

Description

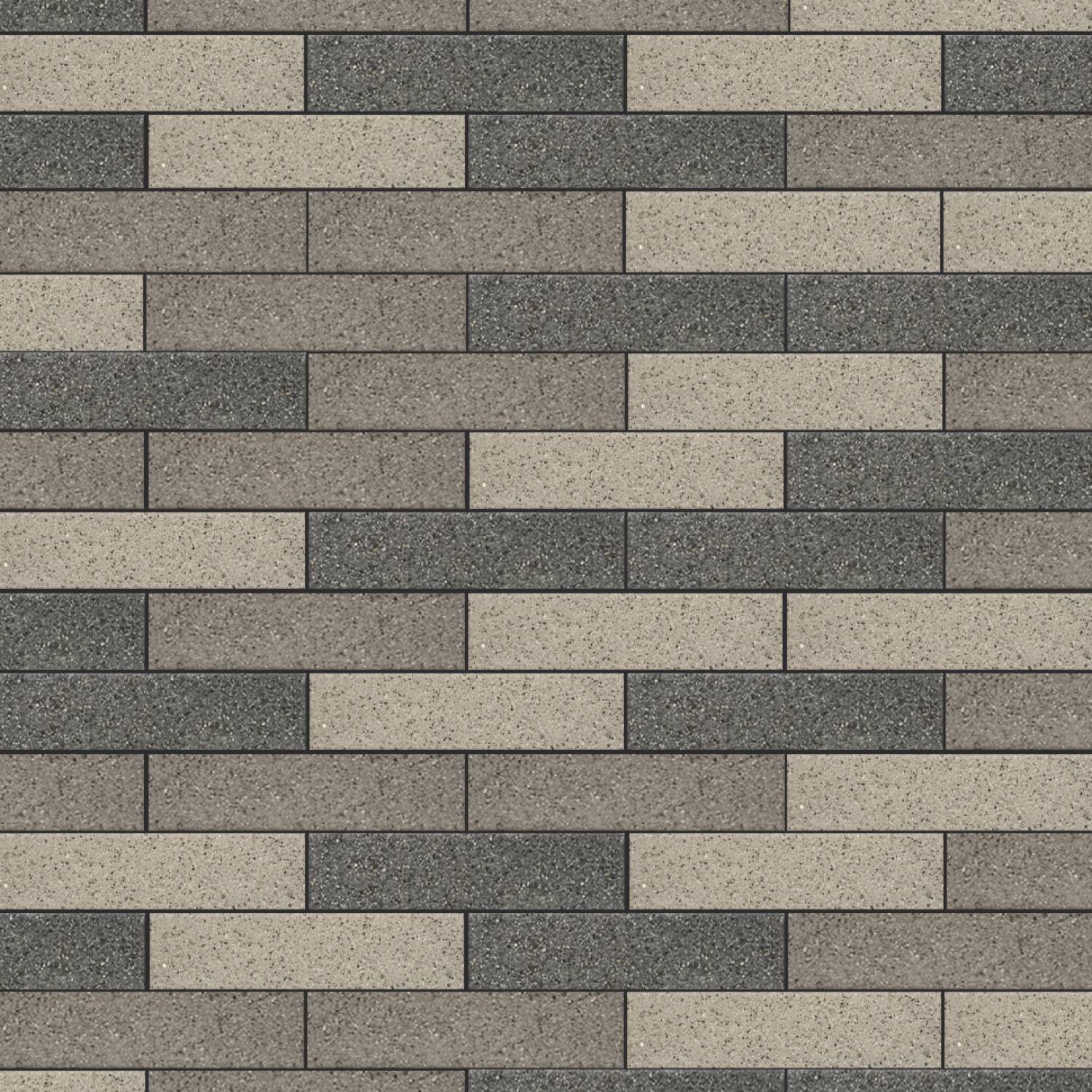

Manhattan offers a contemporary and minimalistic feel. The linear design of the product is accentuated by the sparkling granite aggregate in its surface, giving it a unique and modern look. Manhattan is a hard-wearing product that is perfect for use in both residential and commercial developments, making it a versatile and practical choice for any project.

Features and benefits:

Manufactured with sparkling granite aggregates.

General information

Finish	- Manufacturer guidance Granite Aggregate
Material	Concrete Guidance for specification option: Precast concrete.
Shape	Rectangle
Length	500 mm 600 mm
Width	125 mm 150 mm
Height	80 mm 140 mm

Uniclass	Pr_25_93_60_17 Concrete paving blocksPrimary Pr_25_93_60_16 Concrete flags
CAWS	Q24/113 Conventional concrete block paving overlay Q24/110 Conventional concrete block paving Q24/112 Conventional concrete block paving with bound base Q24/10 Conventional concrete block paving

Specification data - Concrete paving blocks

Standard	To BS EN 1338. Manufacturer guidance Installed to BS 7533-3.
Physical properties	-
Finish	Textured granite aggregate.
Profile	-
Paver type	Regular plan form.
Arrises	Chamfered.
Dimensions and associated tolerances	-
Nominal sizes	500 x 140 x 125 mm. 600 x 150 x 80 mm. Mixed size pack. Guidance for specification option: Includes: 250 x 122 x 80 mm. 300 x 122 x 80 mm. 300 x 164 x 80 mm. 400 x 122 x 80 mm. 400 x 164 x 80 mm. 500 x 122 x 80 mm. 500 x 164 x 80 mm.
Tolerances on diagonals	To BS EN 1338.
Weathering resistance	Class 3.
Abrasion resistance	Class 3.
Slip resistance	Extremely low: (>75 USRV).
Skid resistance	Extremely low: (>75 USRV).

Strength	>3.6 MPa.
EnergyUsed	100%.
WaterUsed	100%.
BREEAM rating	In accordance with the Green Guide to Specification.
Surface finish	Hard-wearing layer with a minimum of 4 mm and >350 kg/m³ cement.

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Concrete Guidance for specification option: Precast concrete.
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance 600 x 150 x 80mm & Mixed Length 80mm - 23.47kgCo2e/m2 600 x 150 x 150mm - 50.83kgCo2e/m2
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Not less than 6%
