Marathon System D Cubicles - Glass

Verified by manufacturer 4 months ago

Prospec Ltd

Fully framed system featuring a curved aluminium pilaster and headrail which is available with toughened and laminated glass or toughened float glass.

Jump to:
+44 (0)1709 377147 Website

Application

For most commercial applications, WCs, showers and wall fixed changing cubicles

Description

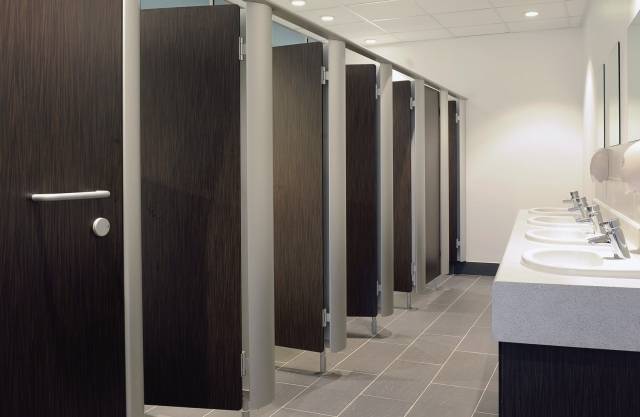

Marathon System D is a fully framed cubicle system for most commercial applications, WCs, showers and wall fixed changing cubicles. This range offers a design element with the ability to use a wide range of materials for the division panels and doors. It is compliant with current DDA legislation.


Features and benefits:

  • Clean curved appearance of extruded anodized elliptical front profiles and headrail.
  • Panels and doors in toughened glass.
  • Cubicles are suitable for wet or dry use.
  • The extruded aluminium 100 x 28 mm elliptical headrail, mechanically joined to elliptical aluminium pilaster profiles with screwport connections to form a structural framework.
  • Door frame with 'Safe Edge' anti-finger trap detail.
  • Partition panels supported on adjustable legs mechanically connected to pilaster components.
  • Full length channels are used to attach partition and pilaster panels to walls.

General information

Finish

Satin

Guidance for specification option:

Satin Anodized.

Anodized

Material

Aluminium

Glass

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Ss_25_12_60_30 Fully-framed panel cubicle systemsPrimary

CAWS

K32/112 Fully framed panel cubicles

Specification data - Fully-framed panel cubicle systems

Panels

10 mm toughened cast glass.

10 mm toughened cast glass - Opti-white.

10 mm toughened float glass.

10 mm toughened float glass - Opti-white.

10.76 mm toughened and laminated float glass.

10.76 mm toughened and laminated float glass - Opti-white.

Manufacturer guidance

10.76 mm toughened and laminated float glass: Two 5 mm-thick leaves of glass with a 0.76 mm EVA interlayer.

Panel supports

Satin anodized extruded aluminium elliptical headrail, pilasters and brackets. Adjustable support leg with fully concealed 316 grade stainless steel fixings and adjuster bolt, set back 150 mm from the pilaster. Aluminium extrusions, silver satin anodized to 25 microns.

Doors

As partition panel.

10 mm toughened cast glass.

10 mm toughened cast glass - Opti-white.

10 mm toughened float glass.

10 mm toughened float glass - Opti-white.

10.76 mm toughened and laminated float glass.

10.76 mm toughened and laminated float glass - Opti-white.

Lippings

All edges polished, exposed corners with small radius.

Hardware

Satin anodized aluminium door furniture.

Curtains

Not required.

Required.

Guidance for specification option:

Available on request.

Samples required

Not required.

Required.

Guidance for specification option:

Available on request.

System accessories

Not required.

Coat hooks.

Bench seats.

Duct panels.

Peep-rails.

DDA handle.

Door restraint.

Camera skirting.

Colour/ Finish

Guidance for specification option:

Opaque ceramic painted glass, consult manufacturer's standard colour range and insert requirement.

Swing

Inward.

Outward.

DDA cubicle provision

Not required.

DDA compliant door latch with matching grab handles.

Two coat hooks to DDA compliant cubicles.

Seats

None.

Integral Compact Grade Laminate bench seats, colour ___.

Duct system

None.

Trojan aluminium framed access panel system.

Guidance for specification option:

To be specified separately.

Cubicle height (overall)

1981 mm, including floor clearance of 150 mm.

Sustainability data

Contains Red List materials

No

Country of material origin

-

Manufacturer guidance

Europe mix.

Country of product manufacture

United Kingdom

Recyclability

Glass

Manufacturer guidance

High.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

-

Manufacturer guidance

Aluminium, Glass.
