Marcato Fenix WC Cubicles - WC/ Toilet Cubicles

Name: Marcato Fenix WC Cubicles - WC/ Toilet Cubicles
Brand: Washroom Washroom Ltd
SKU: n2m2C6RuTHpujoPokKCiiC

Verified by manufacturer 2 days ago

Washroom Washroom Ltd

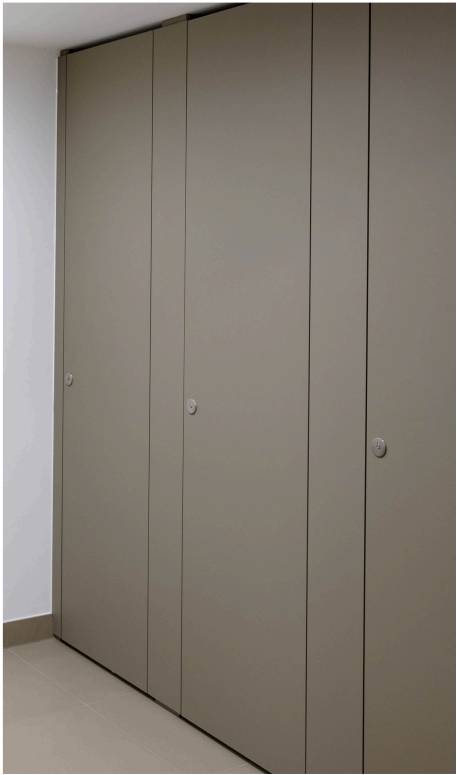

Toilet cubicles with laminated doors and partitions.

Jump to:

+44 (0) 800 999 8888 Website

Application

For use as a toilet cubicle.

Description

Toilet cubicles with Fenix laminated doors and partitions.

Features and benefits:

18–22 mm moisture resistant medium density fibreboard (MR MDF).
Stainless steel fixings and fittings, powder coated on request.
Cubicle height up to 3000 mm.
Lipped first with hardwood (tulip), vertical edges rebated to enable flush fit with adjoining panel.
Self closing hinges.
Dline lock.
Coat hook.
Satin anodized aluminium fixing channel.

General information

Color	Other Guidance for specification option: From manufacturers Arpa Fenix range.
Finish	Laminated
Material	Medium density fibreboard (MDF) High pressure laminate (HPL) Manufacturer guidance FENIX NTM laminate.
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	3000 mm Guidance for specification option: Maximum cubicle height. 2700 mm Guidance for specification option: Maximum door height. Bespoke
Warranty description	One year Guidance for specification option: From practical completion.

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/10 Panel cubicles K32/120 Panel cubicles

Specification data - Panel cubicle systems

Classification data
Panels	18 mm moisture-resistant medium-density fibreboard (MR MDF) faced on both sides with high pressure laminate (HPL).
Panel supports	Adjustable satin anodized aluminium legs. Guidance for specification option: Tubular and rounded design. Fixed to partition panel.
Pilasters	22 mm MR MDF faced on both sides with high pressure laminate (HPL).
Doors	22 mm MR MDF faced on both sides with high pressure laminate (HPL).
Lippings	Lipped first with hardwood (tulip), vertical edges rebated to enable flush fit with adjoining panel.
Hardware	Stainless steel self closing hinges; indicator bolt with emergency release facility; buffered coat hook; satin anodized aluminium full length channel partition and pilaster fixings.
System accessories	Not required. Satin polished, stainless steel pull handles. Guidance for specification option: Where indicated on drawings supplied, outward opening doors have been allowed complete with satin polished stainless steel pull handles to the outside face of the doors.
Height	Guidance for specification option: 3000 mm maximum height (2700 mm door maximum), full height cubicles with 20 mm floor clearance, consult manufacturer and insert requirements.
Finish	Stainless steel. Guidance for specification option: As standard. Powder-coated. Guidance for specification option: Available upon request. Manufacturer guidance Fittings finish.
Colour	- Manufacturer guidance To be confirmed from Arpa Fenix. Insert requirement.
Headrail	- Manufacturer guidance Consult manufacturer and insert requirements.

Sustainability data

Country of material origin	United Kingdom
Material	Medium density fibreboard (MDF) High pressure laminate (HPL) Manufacturer guidance FENIX NTM laminate.
