Marcato SGL WC Cubicle - WC/ Toilet Cubicle

Name: Marcato SGL WC Cubicle - WC/ Toilet Cubicle
Brand: Washroom Washroom Ltd
SKU: tDnN2GRsv22v4tvGkV2ASY

Verified by manufacturer 2 days ago

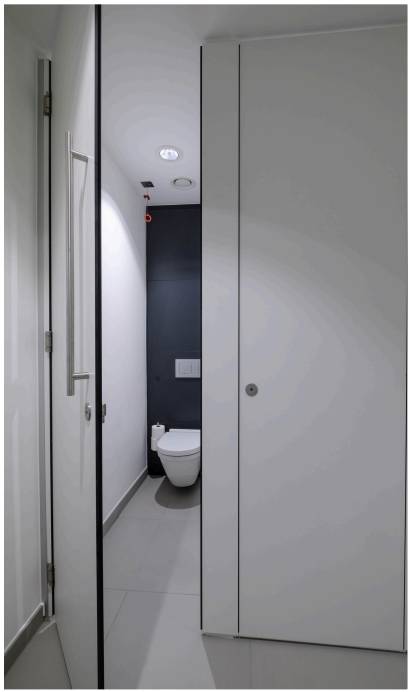

Toilet cubicles with solid grade laminate (SGL) doors and partitions.

Jump to:

Application

For use as a toilet cubicle.

Toilet cubicles with solid grade laminate (SGL) doors and partitions.

Features and benefits:

20 mm moisture resistant medium density fibreboard (MR MDF).
Stainless steel fixings and fittings, powder coated on request.
Cubicle height up to 3000 mm.
Vertical edges are rebated to enable doors to close flush with the adjacent pilasters.
Self closing hinges.
Dline lock.
Coat hook.
Satin anodized aluminium fixing channel.

Color	Other Guidance for specification option: From Manufacturers standard SGL colour range.
Finish	Laminated
Material	Solid grade laminate (SGL)
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	3000 mm Guidance for specification option: Maximum cubicle height. 2700 mm Guidance for specification option: Maximum door height. Bespoke
Warranty description	One year Guidance for specification option: From practical completion.

Uniclass	Ss_25_12_60_60 Panel cubicle systemsPrimary
CAWS	K32/10 Panel cubicles K32/120 Panel cubicles

Classification data
Panels	13 mm solid grade laminate (SGL).
Panel supports	Adjustable satin anodized aluminium legs. Guidance for specification option: Tubular and rounded design. Fixed to partition panel.
Pilasters	20 mm solid grade laminate (SGL).
Doors	20 mm solid grade laminate (SGL).
Lippings	Vertical edges are rebated to enable doors to close flush with the adjacent pilasters. All other edges are machined to a smooth profile.
Hardware	Stainless steel self closing hinges; indicator bolt with emergency release facility; buffered coat hook; satin anodized aluminium full length channel partition and pilaster fixings.
System accessories	Not required. Satin polished, stainless steel pull handles. Guidance for specification option: Where indicated on drawings supplied, outward opening doors have been allowed complete with satin polished stainless steel pull handles to the outside face of the doors.
Height	Guidance for specification option: 3000 mm maximum height (2700 mm door maximum), full height cubicles with 20 mm floor clearance, consult manufacturer and insert requirements.
Finish	Stainless steel. Guidance for specification option: As standard. Powder-coated. Guidance for specification option: Available upon request. Manufacturer guidance Fittings finish.
Colour	Guidance for specification option: Select from manufacturers standard SGL range, consult manufacturer and insert requirements.
Headrail	50 x 10 mm flat satin anodized aluminium bar.
