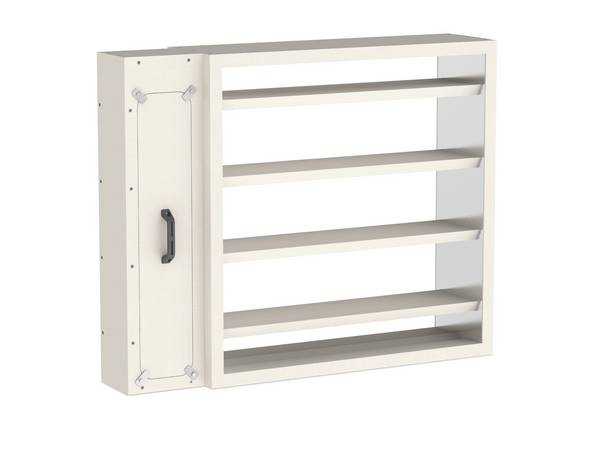

MARKAGE FD Fire Damper
MARKAGE FD Fire Damper
Rectangular calcium silicate fire damper for installation in the wall of the fire compartment.
Application
- For installation in the wall of the fire compartment.
- Indoor use.
- Suitable for rigid wall and light/ flexible wall (metal stud gypsum plasterboard wall).
Description
Rectangular fire damper for installation in the wall of the fire compartment.
Fire dampers are installed where air ducts penetrate fire-resistant compartment walls. Their role is to restore the fire resistance grade of the penetrated wall and to prevent smoke propagation. Fire dampers are distinguished by their degree of fire resistance, by their aeraulic properties as well as by their installation ease.
Features and benefits:
- Compliant with BS EN 15650.
- Tested according to EN 1366-2.
- CE marked.
- Suitable for rigid wall and light wall (metal stud gypsum plasterboard wall).
- Can be activated with a bus communication module.
- Large dimensions.
- Maintenance-free.
- For indoor use.
They can be equipped with various types of mechanisms depending on the specific needs linked to the project or to the local regulations.
General information
Color | White |
Finish | Galvanized Guidance for specification option: Casing (steel). |
Material | Steel Guidance for specification option: Casing. Calcium silicate Guidance for specification option: Promatect MT. |
Shape | Rectangle Square |
Length | 250 mm |
Width | 200 mm 250 mm 300 mm 350 mm 400 mm |
Height | 200 mm 400 mm 600 mm 800 mm 1000 mm |
Warranty description | One year Guidance for specification option: From delivery date. |
Uniclass | |
CAWS | U90/443 Dampers, fire/ smoke |
Specification data - Fire dampers
Standard | |
Fire dampers | To EN 15650:2010. |
Test methods | To EN 1366-2. |
Classification | EI90. |
Aerodynamic performance | Manufacturer's standard. |
Third-party certification | CE marked BCCA-0749-CPR-BC1-606-0464-15650.XX-2517. |

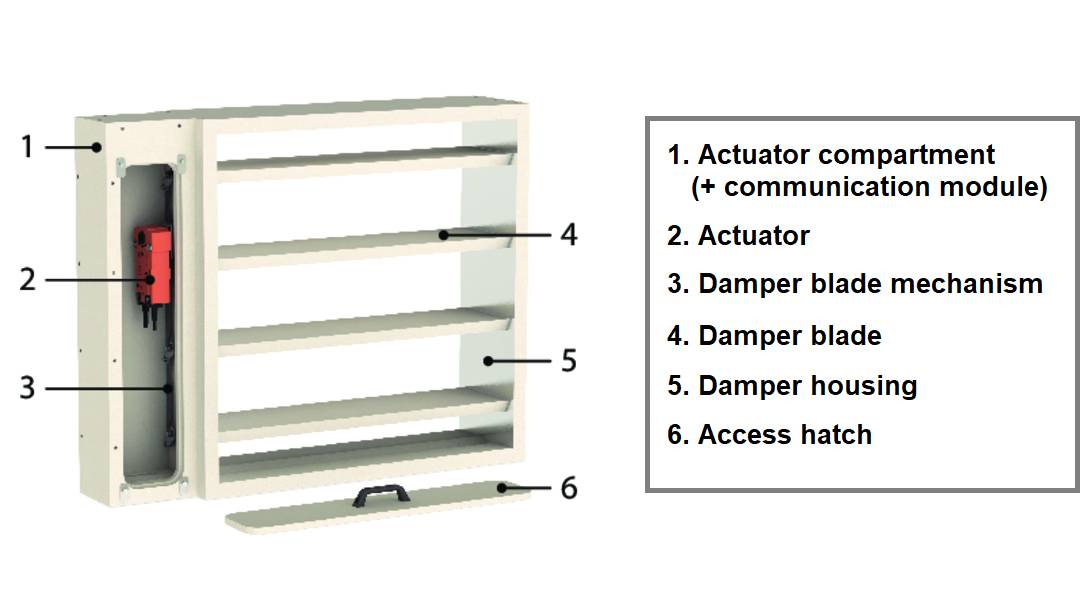

Arrangement | Multiblade. |
Material | Galvanized steel. Guidance for specification option: Tunnel casing. Consult manufacturer for details of other components. |
Accessories | Not required. VS mounting brackets, for vertical suspension. PG30 flange, for connection to metal ducts. PPT galvanized steel grille. |
Dimensions | Guidance for specification option: Consult manufacturer's literature for related performance details and insert requirements:
Overall height = nominal height + 70 mm. Overall width = nominal width + 295 mm. Consult manufacturer for weight based on requirements. Manufacturer guidanceNote that dimensions do not include connection frames or grilles. |
Actuator | KITS BFLT24. Guidance for specification option: Spring return actuator BFL 24 V with thermo-electric fuse (T). KITS BFLT230. Guidance for specification option: Spring return actuator BFL 230 V with thermo-electric fuse (T). KITS BFLT24-ST. Guidance for specification option: Spring return actuator BFL 24 V with thermo-electric fuse (T) and plug (ST). KITS BFNT24. Guidance for specification option: Spring return actuator BFN 24 V with thermo-electric fuse (T). KITS BFNT230. Guidance for specification option: Spring return actuator BFN 230 V with thermo-electric fuse (T). |
Sustainability data
Contains Red List materials | No |
Country of material origin | Belgium |
Country of product manufacture | Belgium |
Material | Steel Guidance for specification option: Casing. Calcium silicate Guidance for specification option: Promatect MT. |
A1-A3 (production stage) | Embodied carbon as defined in BS EN 15804 |
Normalised unit | |
Declared unit | 0 kg CO₂ eq/unit Self-declared |
Recyclability | 100% |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
