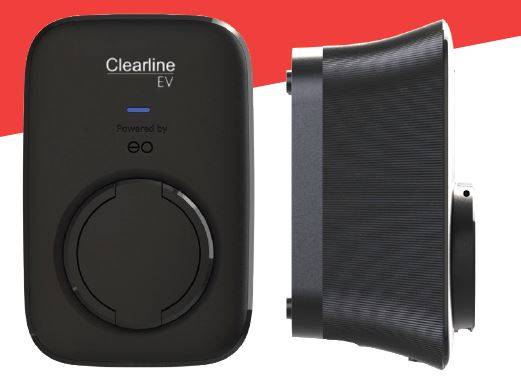

Marley EV Charger - Electric Vehicle Charger
Verified by manufacturer 4 months ago
Solar electric vehicle charger.
Application
Suitable for domestic applications can be placed indoor or outdoor wall mounted.
Description
Marley electric vehicle charger has solar panel compatibility.
Features and benefits:
- Charge a car with power from solar panels.
- Suitable for domestic applications.
- Can be indoor or outdoor wall mounted.
- Compact and powerful.
- 7 kW in the footprint of an A5 sheet.
- Simple installation
- No need for earth rods with built-in open PEN conductor protection.
- EO App: control from app. Charge scheduling, usage monitoring and solar power matching.
Compliance:
- OZEV EVHS and WCS grants approved.
- UK Smart Charging Regulations compliant.
- BSI Kitemark (pending).
- CE + UKCA Marked.
- EMC Directive 2014/30/EU.
- Radio Equipment Directive.
- IEC 61851-1, IEC 61851-22, IEC 62196-2 EN 301-489 RFID - ISO/IEC 14443 (MIFARE).
- ETSI EN 303 645 cybersecurity.
General information
Color | Black |
Finish | Other |
Material | Polycarbonate |
Shape | Rectangle |
Length | 215 mm |
Width | 140 mm |
Height | 100 mm |
Warranty description | Three year |
Uniclass | |
CAWS | V90/312 Photovoltaic systems V90/590 Equipment |
Specification data - Electric vehicle charging points
Standards | To BS EN IEC 61851-1. |
Charging mode | 3.Guidance for specification option: IEC 61851-1 compliant comms protocol. |
Input voltage | 230 V a.c. single-phase. |
Input current | 32 A.Guidance for specification option: Rated current - 32 A (max). Charging current - 6 to 32 A (variable). |
Rated frequency | 50 Hz. |
Power output | 7.2 kW.Manufacturer guidanceRated power. |
Outlet type | Type 2 socket, to BS EN 62196 series.Guidance for specification option: IP54 hinged lid, locking pin. |
Mounting | Surface-mounted.Pole-mounted.Guidance for specification option: With optional backplate. |
Impact protection (minimum) | IK08. |
Ingress protection (minimum) | IP54. |
Circuit protection | Dedicated 30 mA Type A RCD must be used on the supply circuit. Integral 6 mA DC leakage detection – no Type B RCD required. Integral PEN protection – no earth rod or RCBO/consumer unit required.Manufacturer guidanceEarth leakage protection. |
Accessories | Guidance for specification option: Consult manufacturer and insert requirements or omit. |
Dimensions | 215 x 140 x 100mm. |
Weight | <2kg. |
Ambient temperature | -30˚C to +55˚C. |
Temperature | -25˚C to +70˚C. Manufacturer guidanceInternal Electronics Temperature. |
Operating humidity | 5% to 95% relative humidity. |
Enclosure | Polycarbonate (PC), UV stabilized (UL94 V-0 fire rated). |
Colour | Black (RAL9005). |
Connections | TN: L1, N, PE 0.2 - 16 mm IT: L1, N. Guidance for specification option: Over current connection: 40 A supply. Manufacturer guidanceSupply connections. |
Standby power | <3 W. |
LED lighting | Status indication: green, blue, red. |
Cable entry | Ø25 mm modifiable cable entry. Guidance for specification option: Ø10—Ø22 mm PVC stepped grommet included. Manufacturer guidanceSupply cable. |
Sustainability data
Contains Red List materials | No |
Material | Polycarbonate |
Literature

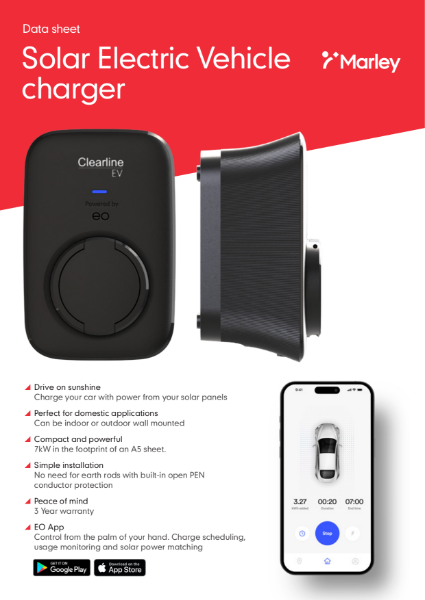

Solar Electric Vehicle Charger
