Mayfair Step Slabs with Contrasting Nosing | Concrete Paving Slab

Name: Mayfair Step Slabs with Contrasting Nosing | Concrete Paving Slab
Brand: Tobermore
SKU: 672QTtrargDVb33X9n2Z2a

Verified by manufacturer 3 months ago

Tobermore

Third party certifications:

EPD
Certificate type

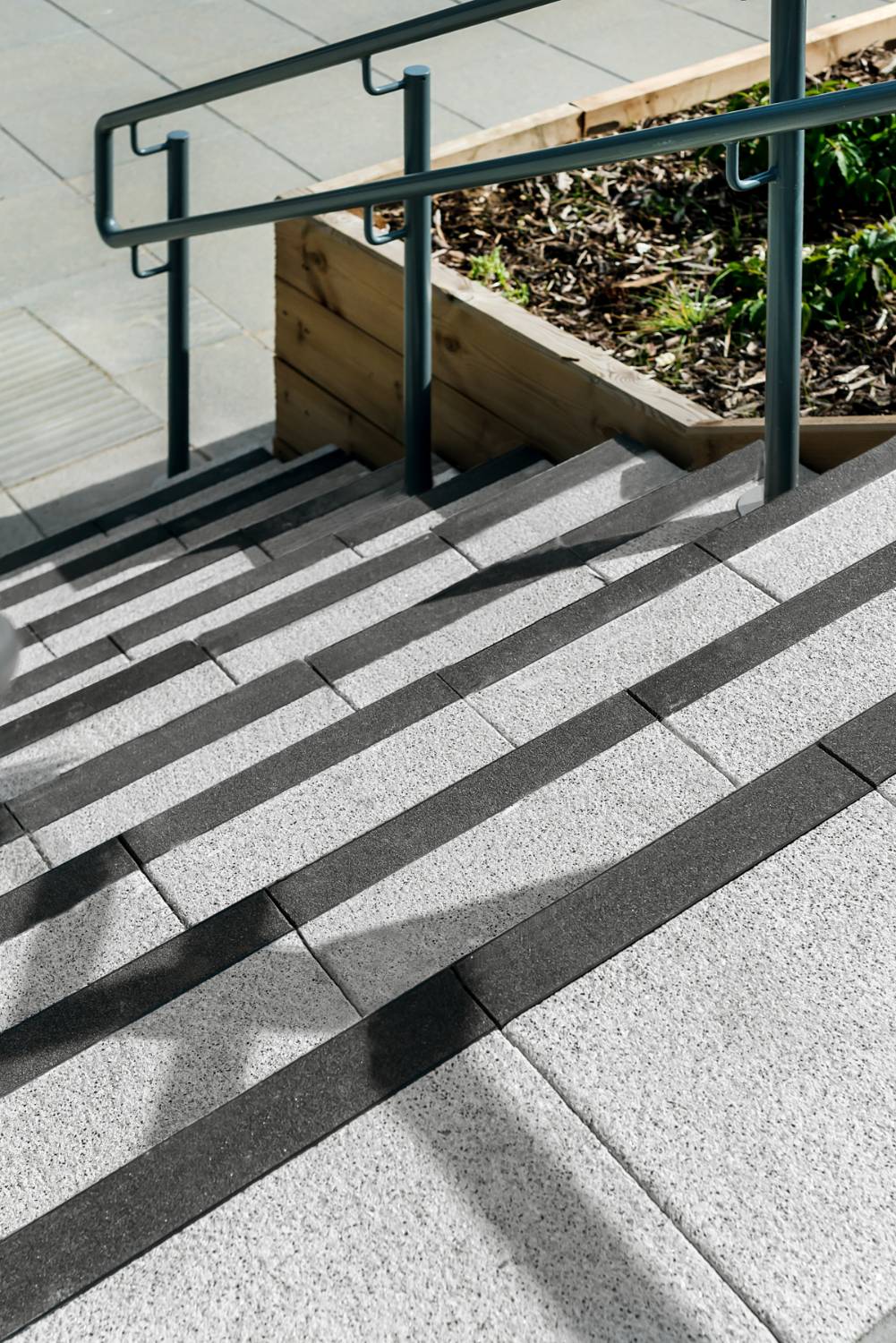

Step paving slabs with delineation strip.

Jump to:

BOS

+44 (0)844 800 5736 Website

Application

For residential and commercial applications when used in conjunction with the correct sub-base design, in accordance with the latest British standard.

Description

Step paving slabs with delineation strip have a natural granite aggregate surface finish, making them ideal for both contemporary and traditional projects.

Features and benefits:

Manufactured with sparkling natural granite aggregates.
Superb hard-wearing granite surface with not less than 57% of granite aggregate in surface layer.
Significantly reduced efflorescence.
100% renewable energy used.
100% water used from rainwater harvesting system.
BREEAM rating A (A+ can be achieved when used with recycled sub-base).

It is the responsibility of the designer to ensure that the products specified comply with all regulations. Tobermore recommend that compliance is sought from Building Control prior to the installation of any of its step products.

General information

Color	Silver
Finish	- Manufacturer guidance Includes granite aggregate.
Material	Concrete
Shape	Square Rectangle
Length	400 mm
Width	170 mm 400 mm
Height	40 mm

Uniclass	Pr_25_30_90_18 Concrete step unitsPrimary
CAWS	Q24/10 Conventional concrete block paving Q25/315 Concrete flags

Specification data - Concrete step units

Standards	To BS EN 1339. Manufacturer guidance Installed to BS 7533-4.
Step unit configuration	Corner step. Edge step. Step riser. Manufacturer guidance Top and two edges.
Colour	Silver with black delineation strip. Silver.
Finish	-
Treads	Granite aggregate.
Risers	Granite aggregate.

NominalSize	400 x 400 x 40 mm. Guidance for specification option: Corner step and Edge step only. 600 x 400 x 50 mm. Guidance for specification option: Edge step only. 400 x 170 x 40 mm. Guidance for specification option: Step riser only.
Efflorescence	Minimum 12 hour vapour curing to significantly reduce the possibility of efflorescence.
Strength	>3.5 MPa.
BREEAM rating	A (A+ can be achieved when used with recycled sub-base).
Surface finish	Hard wearing surface layer with a minimum layer of 4 mm and >390 kg/m³ cement.
PhysicalPropertiesProfileArrises	Chamfered.
PhysicalPropertiesSlipResistance	Extremely low (>75 USRV).

Sustainability data

Country of product manufacture	United Kingdom
Material	Concrete
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	- Manufacturer guidance Edge Step 16kgCo2e/m2 Corner Step 16kgCo2e/m2
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Not less than 20% of 40 mm and 16% of 50 mm recycled materials included.

Third party certifications

Environmental Product Declaration (EPD) Flags- Classica Flags, Mayfair Step Flag 400x400x50mm, Historic Flags & Circles, Tactile Flags 400x400x50mm, 400x400x40mm Beaufort Flags

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	-	1
IFC	-	1

Third party certifications

EPD

Environmental Product Declaration (EPD) Flags- Classica Flags, Mayfair Step Flag 400x400x50mm, Historic Flags & Circles, Tactile Flags 400x400x50mm, 400x400x40mm Beaufort Flags
