MedO DM10HD Drainage Element
Verified by manufacturer 3 months ago
BBA Agrément Certificate
Certificate type
High-density drainage element.
Application
For roof and podium areas requiring vehicular access or high volumes of pedestrian access, including motorized wheelchairs and mobility scooters.
Description

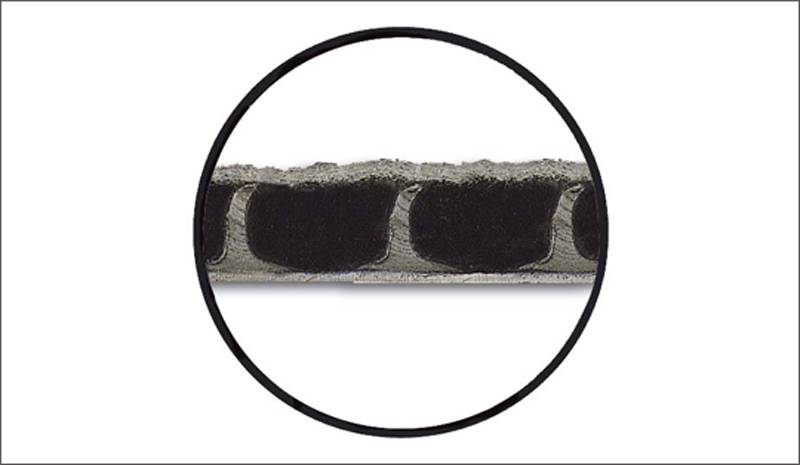

A high-density drainage element consisting of a PE-HD core laminated to a PE-HD foil on the underside and a PP geotextile fleece on the upper side Radmat DM10HD has a crush resistance of in excess of 1000 kPa.
General information
Color | Black |
Finish | Unfinished |
Material | Plastic |
Shape | Rectangle |
Length | 20000 mm |
Width | 1500 mm |
Height | 8.5 mm |
Warranty description | 40 year |
Uniclass | |
CAWS | Q37/355 Combined layers Q37/350 Drainage layer Q37/340 Moisture retention mat Q37/360 Filter membrane J40/290 High-density polyethylene/ polypropylene studded cavity drain membrane J40/47 High-density polyethylene/ polypropylene studded cavity drain membrane |
Specification data - Drainage layer corrugated boards
Material | PP geotextile fleece/ PE-HD foil. |
Depth | 8.5 mm. |
Infill | Guidance for specification option: Insert requirements or omit. |
Recycled content | 50%. |
Weight (minimum) | 1370 g/m². Guidance for specification option: Per roll: 41 kg. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100 |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Third party certifications
BBA Agrément Certificate
15/5282-2 EshaFlex Total Green Roof Waterproofing System
Literature
MedO DM10HD Drainage Element Product Data Sheet
MedO Living Green Roof System Brochure
