Memento 2.0 Surface-mounted Washbasin 4A0750
Verified by manufacturer 8 months ago
4A075001
4A075001

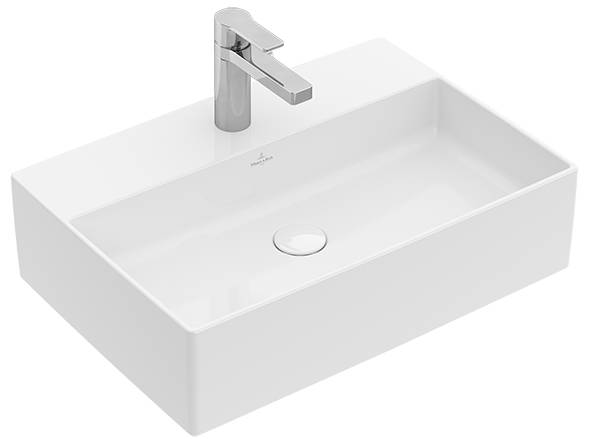

Rectangular, surface-mounted washbasin.
Description
Rectangular, surface-mounted washbasin, manufactured in accordance with EN 14688 and EN 31.
Features and benefits:
- TitanCeram.
- Recommendation: to be installed with a gap of at least 50 mm between the washbasin and the wall.
- Template and fastening set included.
- Complies with EN 31 and EN 14688.
- Optionally available: Outlet valve with ceramic cover.
- Furniture programme MEMENTO to match.
General information
Color | White |
Finish | Gloss Matt |
Material | Ceramic |
Shape | Rectangle |
Length | 500 mm |
Width | 420 mm |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Specification data - Countertop washbasins
Standard | To EN 14688 and EN 31. |
Form | Vanity top (vessel). |
Materials | |
Body | Ceramic. |
Finish and colour | White alpin, gloss. |
Size | 500 x 420 mm. |
Water supply, overflow and waste holes | |
Water supply | Single tap hole, centred.Guidance for specification option: Suitable for 3-hole tap fittings, central tap hole punched out. |
Overflow | Rear overflow hole. |
Waste | Bottom waste outlet. No chainstay hole. |
Integral accessories | Closable valve 6810 00, Easy Access siphon 9219 88; Push-to-open valve 8L03 34. |
Weight | 14.7 kg. |
Accessories | None. Outlet valve with ceramic cover. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
 SketchUp | - | 1 |
 OBJ | - | 1 |
