Metal Riser Door (Range 57) - Picture Frame - 90 Minutes Fire Rated - Smoke & Airtight Tested - 33dB Acoustic - Riser Door

Name: Metal Riser Door (Range 57) - Picture Frame - 90 Minutes Fire Rated - Smoke & Airtight Tested - 33dB Acoustic - Riser Door
Brand: Exitile Access Ltd
SKU: qjRJ9foLmdyRRxmUSrDF7t

Verified by manufacturer 2 months ago

Exitile Access Ltd

Metal Riser Door, Picture Frame, 90 Minute Fire Rated & Smoke Tested, 33dB Acoustic Rated, Airtight, 3 Point Locking System

Jump to:

+44 (0) 24 7635 2771 Website

Application

Suitable for use in jointless plasterboard wall systems.

Description

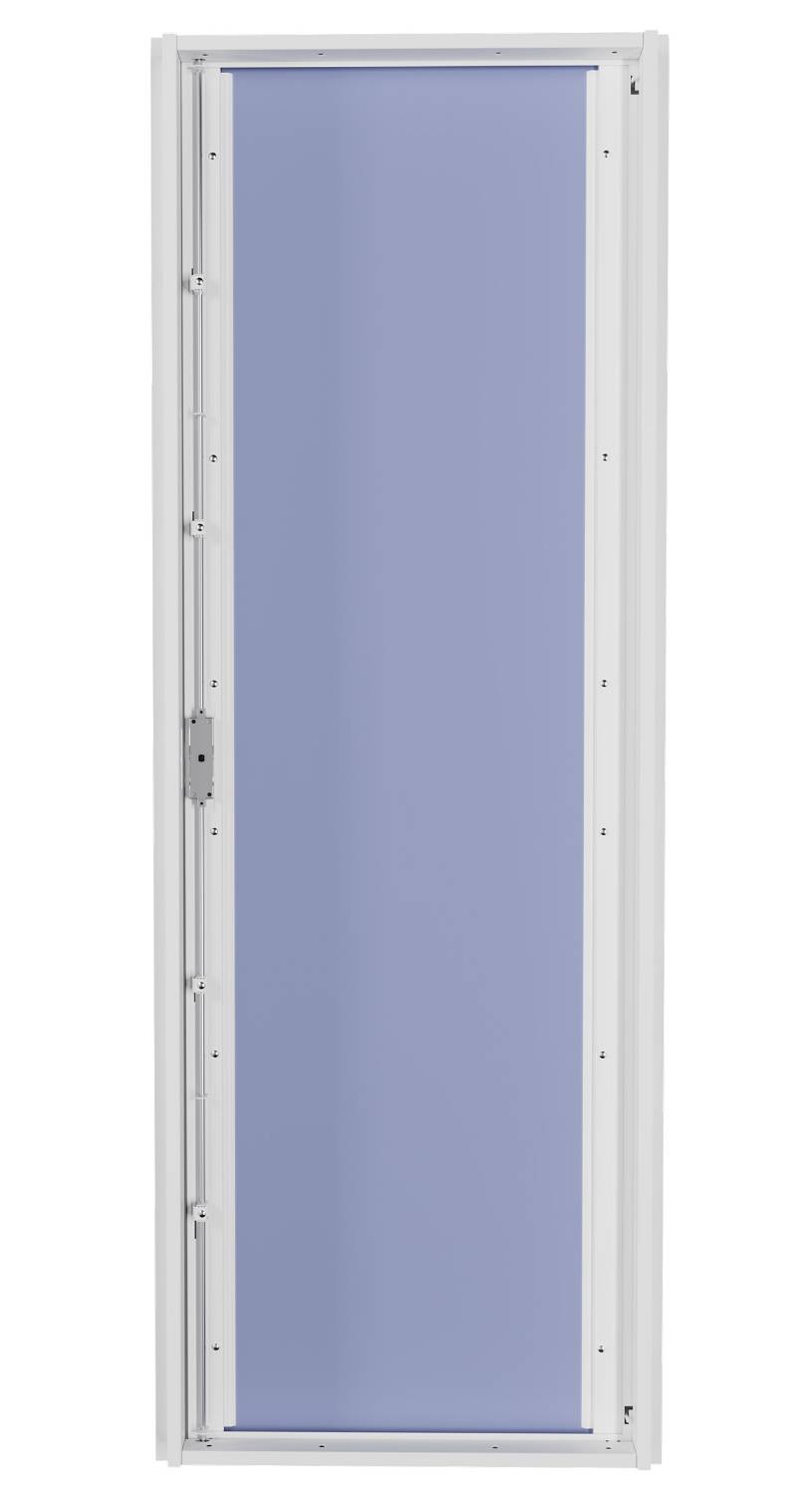

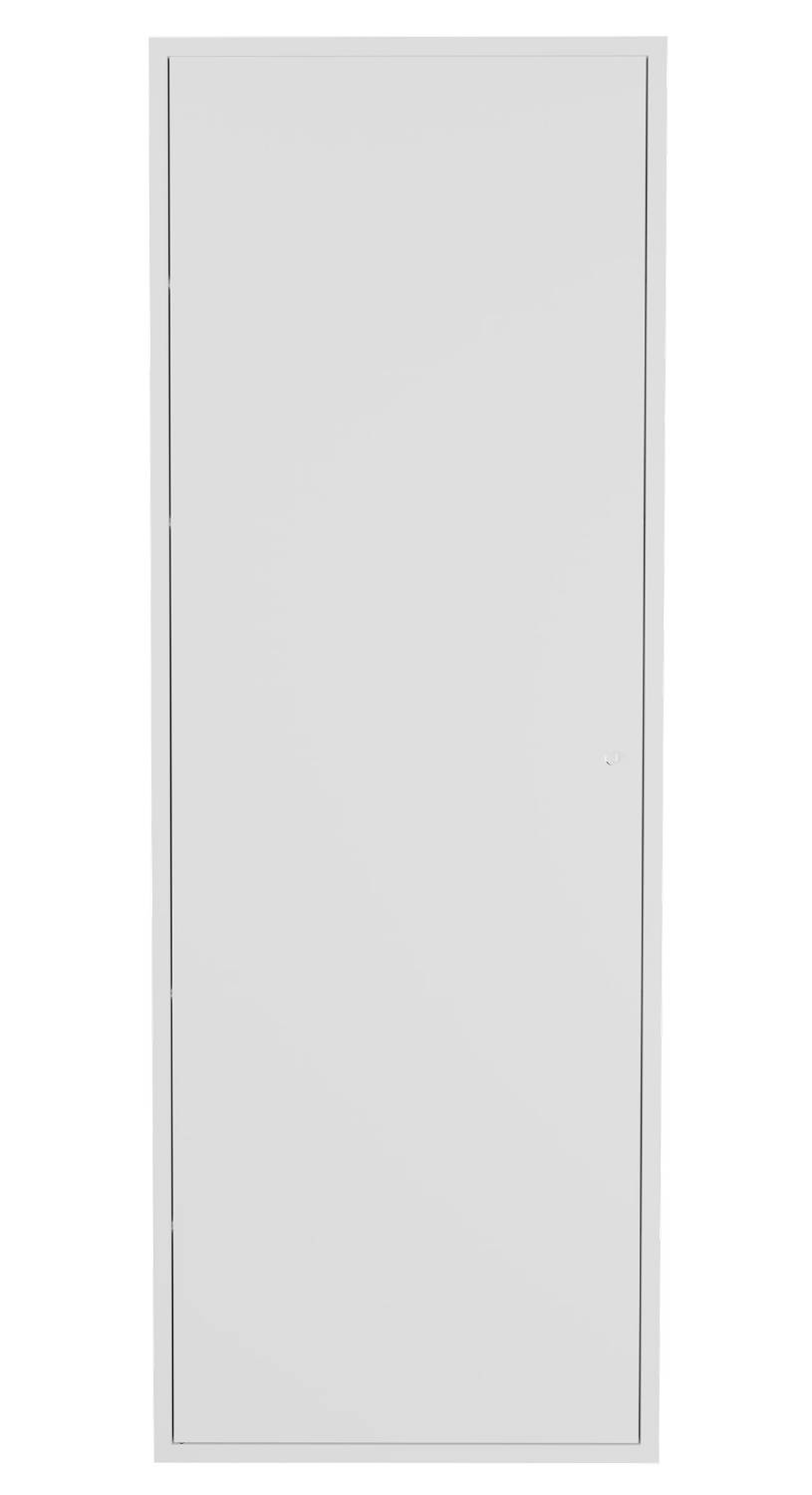

This panel is designed to fit into a structural membrane of a jointless plasterboard wall system. It is manufactured with a 25 mm wide picture frame. The panel has a metal faced door backed with two layers of SoundBloc acoustic plasterboard. The door leaf is locked in place via a three-point locking system with other lock options available upon request. The panel is powder-coated RAL 9010 30% gloss. Other colours available upon request.

Features and benefits:

The panel is 90 minute fire rated (up to 1900 x 650 mm in a wall application).
Manufactured from Zintec steel with a 0.9 mm thick door and a 1.2 mm frame.
The panel's door leaf is hinged by a fast fit hinge system which saves time on fitting compared to a full piano hinge.
Fitted with draught, smoke, air, acoustic and intumescent seals.
Acoustic rated up to 33 dB.

General information

Color	White
Finish	Powder-coated
Material	Steel Plasterboard
Shape	Square Rectangle
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_36_01 Access panelsPrimary
CAWS	L20/630 Hatches K10/430 Access panels

Product range	Riser Door / Fire Rated, Smoke Tested, Acoustic Rated

Specification data - Access panels

Fire performance	-
Fire resistance	60 minutes integrity to BS EN 1634-1:2014. Guidance for specification option: Up to 1900 x 650 mm.
Position	Wall-mounted.
Size	- Manufacturer guidance Insert requirements.
Frame	Exposed picture frame type.
Panel	-
Material	Steel.
Integral finish	Powder-coated.
Latch or lock type	Low level security 3 way lock. Medium level security IP65 - key retaining tamper proof lock. High level security 3 way Euro profile cylinder lock.
Integral accessories	Draught, smoke, air, acoustic and intumescent sealing strips to frame. Guidance for specification option: This panel is smoke tested in accordance with BS EN 1634-3:2004.

Colour/ Finish	RAL 9010, 30% gloss. Other. Guidance for specification option: Other colours are available on request. Consult manufacturer and insert requirements.
Sound insulation	To BS EN ISO 10140-2:2010, 33 dB.
Air permeability	To EN 1026, Class 2.
