Mipolam Technic EL5 - Tile - ESD vinyl floor tile

Name: Mipolam Technic EL5 - Tile - ESD vinyl floor tile
Brand: Gerflor Flooring UK Limited
SKU: mD6zrK5ubM6JVVhcJ3Lpfg

Verified by manufacturer 8 months ago

0635 - White

Gerflor Flooring UK Limited

Third party certifications:

EPD
Certificate type

Homogenous conductive flexible vinyl floor covering in tile form.

Jump to:

BOS

01625 428 922 Website

Application

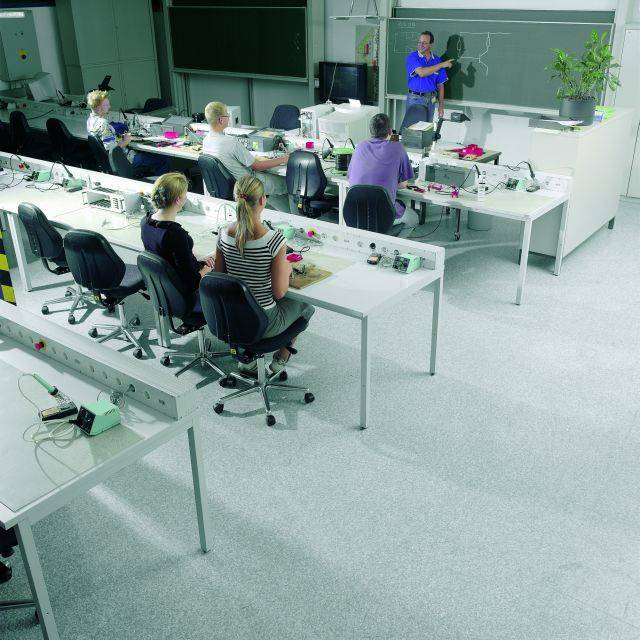

Mipolam Technic EL5 tiles are well suited to high-tech applications where there is a requirement for static control.

Description

Mipolam Technic EL5 is a conductive flexible homogeneous vinyl floor covering available in a tile format. The conductive carbon coated PVC pellets create a perfect conductive network for permanent conductive and antistatic properties throughout its full life expectancy. It acts as a continuous conductive 10^4 ≤ Rt ≤10^6 (EN 1081). Suitable for high traffic areas, Mipolam Technic EL5 is available in six non-directional technical colour references.

Features and benefits:

Suitable for high traffic applications.
Highly flexible, easy to install.
Continuous conductor 10^4 ≤ Rt ≤10^6 Ω (EN 1081).
Six non-directional technical colour references.
100% recyclable.

Installation and maintenance:

Should be installed in accordance with the BS 8203:2017 Code of practice for installation of resilient floor coverings. Installation and maintenance instructions are available.

General information

Color	Blue Beige Green White Grey
Material	Vinyl
Shape	Square
Length	608 mm
Width	608 mm
Height	2 mm
Warranty description	12 year

Uniclass	Pr_35_57_71_68 Polyvinyl chloride (PVC) tilesPrimary
CAWS	M50/10 Resilient floor tiling M50/110 Resilient floor tiling

Product range	Tiles / ESD Flooring

Specification data - Polyvinyl chloride (PVC) tiles

Standard	To BS EN ISO 10581.
Use class	To BS EN ISO 10874, class 34-43. Guidance for specification option: Commercial, very heavy - Light industrial, heavy.
Size	608 x 608 mm. Guidance for specification option: 20 per pack.
Thickness	2 mm.
Colour and pattern	0635 White.

Weight	3800 g/m².
Accessories	Co-ordinating weld rods. Guidance for specification option: Consult manufacturer for details.
Fire classification (EN 13501-1)	Bfl-s1.
Electrical resistance	10^4 ≤ Rt ≤10^6 Ω. Guidance for specification option: To EN 1081.
Static electricity	<2 kV. Guidance for specification option: Static electrical propensity toEN 1815.
Dimensional stability (to BS EN ISO 23999)	≤0.25%.
Binder	Type II. Guidance for specification option: Binder Content to BS EN ISO 10581.
VOC emissions	<10 µg/m³. Guidance for specification option: TVOC after 28 days (to ISO 16000-6).
Pack size	20 Tiles.
