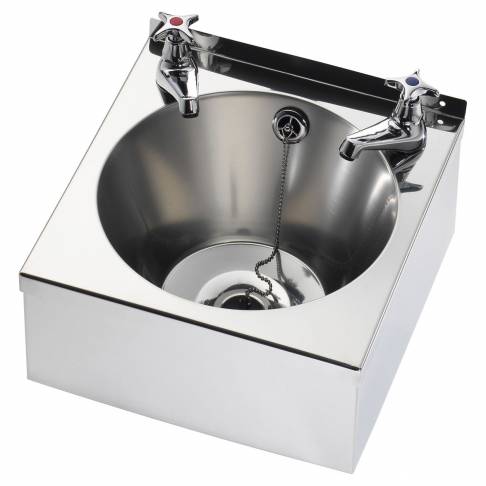

Model B Wash Basin - D20162N
Verified by manufacturer over a year ago
Washbasin top manufactured from 0.9 mm thick, grade 1.4301 (304) stainless steel – high polish finish.
Application
Washbasin for wall mounting.
Description
Washbasin top manufactured from 0.9 mm thick, grade 1.4301 (304) stainless steel – high polish finish. The apron support is made from 0.9 mm (430) material – high polish finish.
Features and Benefits:
- 290 mm diameter wall mounted washbasin with apron with lever taps.
- Prepared for 32 mm waste outlet and supplied with two tapholes in the rear ledge.
- Wall mounting by using the fixing holes provided in both the rear upstand and the rear apron fixing brackets and screws and plugs are not supplied.
- Includes crosshead taps and waste kit.
General information
Color | Silver |
Finish | Polished |
Material | Stainless steel Guidance for specification option: grade 1.4301 (304) |
Shape | Square |
Length | 345 mm |
Width | 340 mm |
Height | 185 mm |
Warranty description | Five year Guidance for specification option: Two years for taps. |
Uniclass | |
CAWS | N13/30 Washbasins N13/335 Washbasins |
Product range |
Specification data - Wall-hung washbasins
Form | Wall hung wash basin. |
Connecting dimensions | 345 x 185 x 340 mm.Guidance for specification option: Bowl: 290 x 153 mm. |
Materials | |
Body | Stainless steel.Guidance for specification option: grade 1.4301 (304) |
Finish and colour | High polish, stainless steel. |
Size | 345 x 185 x 340 mm.Guidance for specification option: Bowl: 290 x 153 mm, 0.9 mm thick. |
Water supply, overflow and waste holes | |
Water supply | Two tap holes.Guidance for specification option: Supplied with two lever taps and waste kit. |
Overflow | Prepared for 32 mm waste outlet and overflow. |
Waste | Prepared for 32 mm waste outlet and overflow. |
Integral accessories | Includes lever taps and waste kit. Screws and plugs not supplied. |
Product Reference | (D20162N) 203.0000.054 Guidance for specification option: Model B washbasin with apron support and waste kit. (D20162N-FL) 203.0581.024 Guidance for specification option: Model B washbasin with lever taps. (D20162N-FX) 203.0581.025 Guidance for specification option: Model B washbasin with crosshead taps. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
