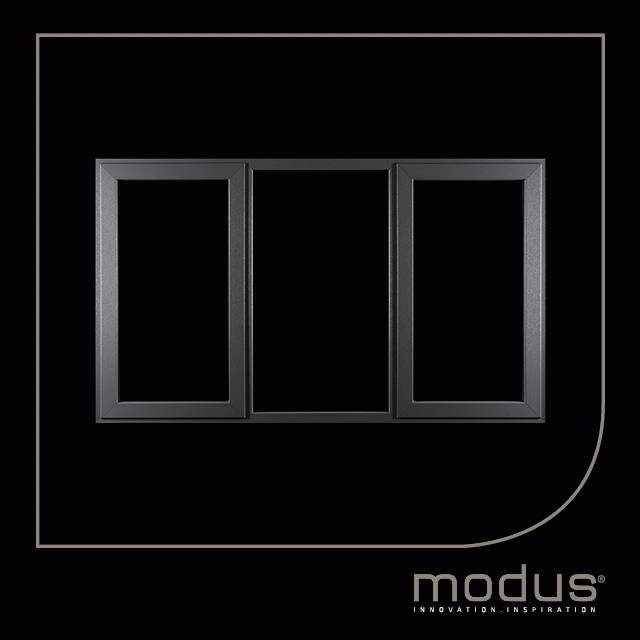

Modus Slim Rebate Casement Windows
Verified by manufacturer 16 hours ago
Fixed light
Fixed light
BBA Agrément Certificate
Certificate type
75 mm profile slim rebate sash casement windows.
Application
Residential and commercial windows.
Description
Modus is a fully integrated PVC-U window and door system, capable of producing eight different product types from a single system.
Features and benefits:
- It is an innovative 75 mm front-to-back dimension six-chamber design, utilizing dual material extrusion technology (DMET).
- DMET precisely directs 50% virgin and 50% post-consumer recycled PVC-U into the profile simultaneously, with post-consumer material used only in the core of the profile, so finish quality and colour fastness is uncompromised.
- The slim rebate sash option creates a more contemporary aesthetic than traditional PVC-U windows.
- At 7 mm thick, the rebate offers sleek sight lines down the building facade, to complement current architecture. Internally, the sash is fully flush, for clean lines and a premium feel.
General information
Color | Black Cream White Grey Brown |
Finish | Foil Matt Smooth Wood grain Woodgrain |
Material | PVC-U Guidance for specification option: Unplasticized polyvinyl chloride. |
Shape | Rectangle Square |
Length | Bespoke |
Width | Bespoke Manufacturer guidanceSash limitations: 400mm Min. 750mm Max. |
Height | Bespoke Manufacturer guidanceSash limitations: 320mm Min. 1500mm Max. |
Warranty description | 12 year |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Third-party certification | To PAS 24, KM 52187; KM 32821. |
Product performance | |
Weather performance | |
UK exposure category | Manufacturer's standard. |
Safety | |
User design standards | In accordance with BS EN ISO 9001 and BS EN ISO 14001. |
Security level | To PAS 24. |
Thermal | |
British Fenestration Rating Council Window Energy Rating | A+, A, B and C.Guidance for specification option: Energy efficient windows, achieving BFRC Window Energy Rating (WER) grades. |
Frame | |
Profile | To BS EN 12608.Manufacturer guidanceHigh quality impact resistant white PVC-U extrusion utilizing 50% post-consumer recycled PVC-U, producing a rigid six-chamber profile to BS EN 12608 and manufactured in accordance with BS EN ISO 9001 and BS EN ISO 14001. |
Reinforcement | Steel.Guidance for specification option: Reinforcements are not included up to a 1600 Pa weather classification, between 1600–2000 Pa, steel reinforcement is fitted in mullions (Depending on the size). |
Colour and texture | Anteak/ White.Guidance for specification option: Standard. Anthracite Grey/ White.Guidance for specification option: Standard. Black Ash/ White.Guidance for specification option: Standard. Cream White/ White.Guidance for specification option: Standard. Irish Oak/ White.Guidance for specification option: Standard. Moondust Grey/ White.Guidance for specification option: Standard. Rosewood/ White.Guidance for specification option: Standard. Slate Grey/ White.Guidance for specification option: Standard. White Ash/ White Ash.Guidance for specification option: Standard. White/ White.Guidance for specification option: Standard. Agate Grey.Guidance for specification option: Architectural. Asphalt (Metallic).Guidance for specification option: Architectural. Crown Platinum (Metallic).Guidance for specification option: Architectural. Quartz Platinum (Metallic).Guidance for specification option: Architectural. Manufacturer guidanceExternal/internal colour. |
Ventilator | Controllable ventilators.Guidance for specification option: Fitted within the head profile. Permanent ventilators.Guidance for specification option: Fitted within the head profile. Dedicated overhead ventilators.Guidance for specification option: Optional extra. Manufacturer guidanceNight vents are also available; see Ironmongery. |
Glazing or infill | |
Requirements | Manufacturer guidanceConsult manufacturer for options and insert requirements. |
Hardware | Standard hinges and Friction hinges.Manufacturer guidanceMaco hardware accredited by ACPO Secured by Design. Other hardware specifications can be provided. Windows fitted with high security hardware meet the requirements of PAS24: 2012. Vents and casements are hinged using stainless steel friction hinges. All hardware meets the requirements of BS 7412. For espagnolettes and shootbolts, see Ironmongery below. For handles, see Handles below |
Operation | |
Type | Manual. |
Sill | 85 mm. 125 mm. 150 mm. 180 mm. 225 mm. |
Ironmongery | Espagnolettes. Guidance for specification option: Mushroom-headed. Espagnolettes with night vent facility. Guidance for specification option: Mushroom-headed. Shootbolts. Shootbolts with night vent facility. Manufacturer guidanceWindows are fitted with or shootbolts for added security. Both options are available with a night vent facility. Handles specified separately below. |
Accessories | None. Cavalok cavity closer, 100–300 mm. Cavalok head vent. |
Type | Double. Guidance for specification option: 28 mm double-glazed insulating unit, glazed internally. U-value: 1.1 W/m²K. Triple. Guidance for specification option: 44 mm triple-glazed insulating unit, glazed internally. U-value: 0.7 W/m²K (With Krypton) U-value: 0.8 W/m²K.(With Argon). |
Width | 1500 mm. |
Height | 2100 mm. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | Eurocell Closed-Loop Recycling |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 50 % |
Third party certifications
BBA Agrément Certificate
Charisma BBA Certificate 14/5154
Literature
Modus Colours and Finishes Technical Specification
Modus Slim Rebate Sash Casement Technical Information
Modus System Overview Technical Specifications
