Application

Suitable for airport and railway terminals, shopping centres, restaurants, hotels and environments where design aesthetics and durability are of paramount concern.

Description

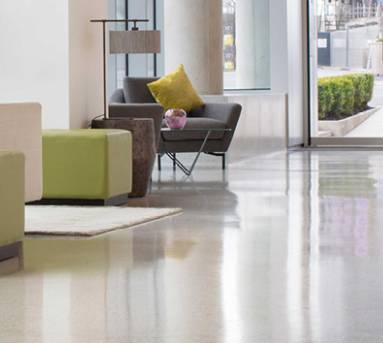

A seamless epoxy resin terrazzo floor finish that utilises an attractive blend of rustic marble chippings.


Features and benefits:

  • Aesthetically pleasing - enhances the working environment.
  • Seamless finish (except for underlying slab joints).
  • Easy to clean and maintain.
  • Abrasion resistant.
  • Tolerant of sustained temperatures up to 60°C.
  • FeRFA Type 8.

General information

Color

Grey

Beige

Finish

Gloss

Material

Epoxy resin

Marble

Manufacturer guidance

Epoxy resin and marble chippings.

Shape

Formless

Height

12 mm

Uniclass

Ss_30_42_54_75 Resin flooring systemsPrimary

CAWS

M12/120 Resin flooring

M12/12 Resin flooring

M12/110 Resin flooring

M12/10 Resin flooring

Specification data - Resin flooring systems

Primer

Flowprime.

Guidance for specification option:

At 0.25–0.5 kg/m².

Resin flooring

Mondeco Naturale.

Guidance for specification option:

  • Average density: 2.25 kg/l (at 31.5 kg/m²).
  • Applied at 14 mm, ground down to 12 mm.

Surface treatment

Grout, TZ Pre-Treatment and Mondeco Grout; Sealer, Flowseal PU Gloss (WB).

Guidance for specification option:

  • Grout Stage 1: TZ Pre-Treatment at 0.06 kg/m² (approx.).
  • Grout Stage 2: Mondeco Grout at up to 0.2 kg/m² - applied in 1 or 2 layers.
  • Sealers: Flowseal PU Gloss (WB) at 0.03 kg/m² (approx.) - additional layers can be added to achieve desired finish.

Execution

-

Manufacturer guidance

Applied with trowel.

Scatter

1–2 mm silica sand.

Guidance for specification option:

At 0.5 kg/m².

Floor finish

Gloss.

Colour

Naturale 1013.

Naturale 7035.

Naturale 7037.

Naturale 7039.

NominalThickness

12 mm.

Fire classification (EN 13501-1)

Bfl-s1.

Wear resistance

To EN 13892-4, <50 μm, Class AR0.5.

Guidance for specification option:

Maximum wear depth.

Bond strength

To EN 13892-8, >2.0 N/mm², Class B2.0.

Impact resistance

To EN ISO 6272, 10 Nm, Class IR10.

CompressiveStrength

To EN 13892-2, >55 N/mm².

Flexural strength

To EN 13892-2, >20 N/mm².

TensileStrength

To BS 6319-7, >10 N/mm².

Water permeability

Nil (impermeable).

Manufacturer guidance

(Karsten test).

Slip resistance

To EN 13036-4/ BS 7976-2, Dry >40 low slip potential.

BS 8204-6/ FERFA

Type 8.

Cure time

Light traffic, 24 hours; full traffic, 72 hours; full chemical cure, 12 days.

Manufacturer guidance

At 10℃.

Consult manufacturer's literature for details.
