Mondéco TZ System
Verified by manufacturer over a year ago
A high temperature resistant, steam cleanable polyurethane terrazzo finish.
Application
Ideal for pharmaceutical, food and chemical process areas where the floor is subjected to hot fluid spillages, steam cleaning, heavy traffic, impact and chemical attack.
IMPORTANT: All specification information must be checked against the individual site requirements. Flowcrete advises that specifications are confirmed with their technical experts.
Description
A polyurethane terrazzo floor finish which contains polygiene, an antimicrobial additive based on silver ion technology.
Features and benefits:
- Terrazzo finish.
- Thermal shock resistance, steam cleanable.
- Chemical resistance.
- Hygienic finish.
- Easy to clean.
- Trowel applied.
- High abrasion resistance.
- Low odour during installation.
General information
Color | Cream Yellow Green Grey Red |
Finish | Satin Guidance for specification option: Flowseal PU Satin. Matt Guidance for specification option: Flowseal PU Matt. |
Material | Polyurethane |
Warranty description | Guidance for specification option: Ten to 20 years. |
Uniclass | |
CAWS | M12/10 Resin flooring M12/110 Resin flooring |

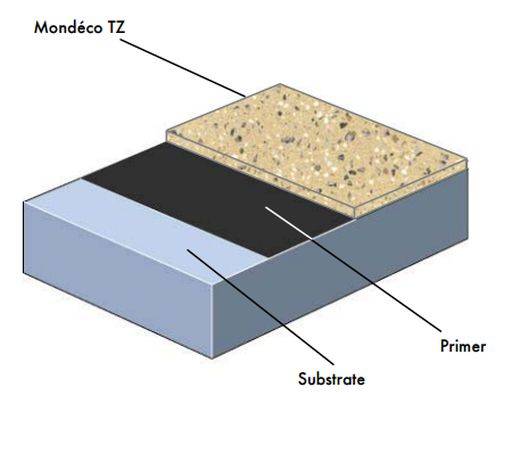

Specification data - Resin flooring systems
Substrate | |
Testing | Moisture content of substrates dry to 75% RH. |
Preparation | Shotblast. |
Primer | Flowprime. |
Resin flooring | Mondeco TZ (FeRFA type 8). |
Surface treatment | Flowseal PU Gloss (WB) and Enhance sealer coats. |
Execution | Applied with trowel. |
Bond strength | >2.0 N/mm². |
Certification | CE Marked. |
CompressiveStrength | >55 N/mm². |
Cure time | Light traffic: 16 hours, Full traffic: 2 days, Full chemical cure: 7 days. |
Flexural strength | >20 N/mm². |
Grout | Flowfresh Grout. |
Impact resistance | 20 Nm. |
Slip resistance | Dry >40 low slip potential. |
Hardness | 300 s. Guidance for specification option: (Koenig Hardness Test). |
Temperature resistance | Guidance for specification option: Spillages: <120°c, sustained="" dry="" temperature:="" -40="" to="">. |
TensileStrength | >8 N/mm². |
ThermalConductivity | 1.20 W/mK. |
Vapour Permeability | 2 g/m²/8 mm/24 hours. |
Colour | Cream. Dark green. Mid grey. Mustard. Ochre. |
Water permeability | Nil. Guidance for specification option: Karsten test (impermeable). |
Wear resistance | Maximum wear depth <50 μm. |
Dimensions | 7 mm. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 3 |
 IFC | - | 2 |
Literature
Mondéco Seamless Terrazzo
