Monokote® MK-6 HY - Fire Resistive Plaster

Verified by manufacturer today

GCP Applied Technologies

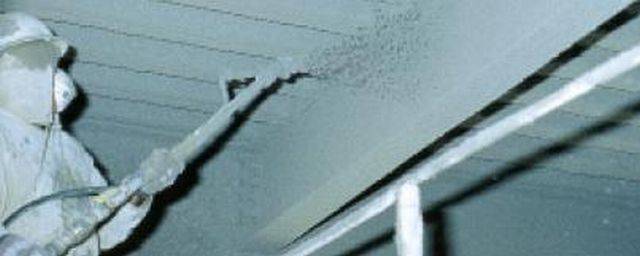

A spray applied structural fire protection system.

Jump to:
BOS
+44 (0)1753 490000 Website

Application

  • Structural fire resistance.
  • Steel beams and columns.
  • Composite deck.
  • Concrete.
  • Cellular beams.
  • Refurbishment or new construction.

Description

A light density gypsum based (with no mineral fibres), machine applied fire protection system. It is a cost effective and fast application system for the fire protection of steel and concrete structures. It bonds tightly to steel and concrete substrates, forming a hard surface which does not spall, dust or flake.

Designed to be used with our injection system and Monokote® Accelerator, the applied fireproofing will set typically within 15 minutes, thus allowing the operative to apply a second coat almost immediately. This unique fast setting properties enables it to withstand adverse weather conditions encountered during the construction phase. It is, therefore, ideally suited for application to the building whilst in its “open envelope” stage. However, it can not be exposed to the weather indefinitely.

Features and benefits:

  • Monokote when properly specified and applied in accordance with our application instructions is designed to last for the life of the building.
  • Proven in-place performance- it will stay in place during construction phase and for the life of the building
  • Safety- monolithic barrier with no joints and not reliant on a chemical reaction.
  • Thin system no need to allow the room between steels and over-cladding for expansions that is required for intumescent coating.
  • Quality- on-site quality control done by using the GCP Yield Kit Box.
  • Low density- less net weight applied on the structures.
  • Value for money- direct application on un-primed steel with no corrosion pre-treatment in a C1 environment (BSEN ISO 12944-2:1988).
  • Program benefit- installation to start as soon as the concrete deck of the floor above is poured.
  • It can be mixed in standard plaster mixers. After mixing it may be spray-applied with commonly available pumping and spraying equipment for high-speed efficient application. It can also be applied with trowels.

General information

Color

Grey

Guidance for specification option:

Light grey.

White

Finish

Textured

Micro-textured

Smooth

Material

Gypsum

Guidance for specification option:

Gypsum based.

Shape

Formless

Guidance for specification option:

Liquid

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_64_12 Cementitious rendersPrimary

CAWS

M22/120 Sprayed

SKU Code

MK-6/HY

Specification data - Cementitious renders

Classification data

Product reference

Monokote® MK-6 HY.

Components

Gypsum-based.

Mix

Guidance for specification option:

Performance varies depending on application:

  • Protection of metal structures (EN 13381-4): open beams and columns and tubular profiles up to R240.
  • Protection of concrete structures (EN 13381-3): beams, columns, solid slabs, walls and floor slabs up to REI 240.
  • Protection of concrete steel composite slabs (EN 13381-5): protection of composite slabs up to REI 180.
  • Non-load bearing walls (EN 1364-1): vertical compartmentation wall with EI 120 rating.
  • Consult manufacturer for details.

Colour

Light grey.
White.

Dry density

≥250 kg/m³ (+/-15%).

Bond strength

16.9 KPa (352 psf).

Fire rating

To EN 13501-1, Class A1.
To BS 476-6 and 476-7, Class 0.

Compressive Strength (at 10% deformation)

To ASTM E761, 51 Kpa.

Air erosion resistance (to ASTM E859)

0.00 g/m.

Noise reduction coefficient

To ASTM C423, 0.7 at 25 mm thickness.

Third-party certification

CE marked. UL Listed.

Sustainability data

Contains Red List materials

No

Country of product manufacture

Saudi Arabia

Material

Gypsum

Guidance for specification option:

Gypsum based.
