MOY AQUAPANEL® Cement Board Rooftop - Lightweight Cement Board
Verified by manufacturer 2 months ago
Sheet size: 1200 x 900 mm
Sheet size: 1200 x 900 mm
Lightweight cement board, meeting requirements of EN 12467.
Application
Used in commercial low slope roofing systems as:
- A cover board installed between the insulation and the waterproofing layer.
- A substrate board installed directly onto the steel deck.
Description
AQUAPANEL® Cement Board Rooftop is a lightweight cement board made of aggregated Portland cement with coated glass fibre mesh embedded in the front and back surfaces. It is moisture and mould resistant, non-combustible and robust, adding structural strength and durability to the entire roofing system.
The ends are cut square and edges are reinforced for extra strength (the EasyEdge®). The panel provides a solid base that withstands extreme weather conditions.
Features and benefits:
- Recommended for accessible roofs.
- Strong, robust, impact-resistant and durable.
- High compressive strength.
- Weather and 100% water-resistant.
- Non-combustible (Class A1).
- Can be cut to shape using “score and snap” technique.
- Simple and easy to install.
- 12.5 mm thick and available in various board sizes.
- Meets the requirements of category D, class 2 in compliance with EN 12467.
- CE marked and FM approved.
- BBA certified.
General information
Material | Fibre cement |
Shape | Rectangle |
Length | 1200 mm 2400 mm 2250 mm |
Width | 900 mm 1200 mm |
Height | 12.5 mm |
Uniclass | |
CAWS | H30/10 Fibre cement H30/110 Fibre cement H20/10 Sheet cladding H20/155 Sheet cladding (attached to timber battens) |
Specification data - Fibre-reinforced cement boards
Standard | To BS EN 12467. |
Fire rating | To EN 13501, A1 non-combustible.Guidance for specification option:
|
Bending strength | To BS EN 12467, ≥7. |
Sheet size | |
Nominal thickness | 12.5 mm. |
Length | 1200 mm. |
Width | 900 mm. |
Edges | Square. |
Finish as delivered | Coated glass fibre mesh. |
Weight | Approx. 16.5 kg/m². |
Density | To EN 12467 1150, 1150 kg/m³. Manufacturer guidanceDry bulk density. |
ThermalConductivity | To EN 12467 1150, 0.35 W/mK. |
Water vapour diffusion resistance – µ value | To EN ISO 12572, 66 μ. |
pH value | 12. |
Third-party certification | British Board of Agrément (BBA) certified. |
Literature

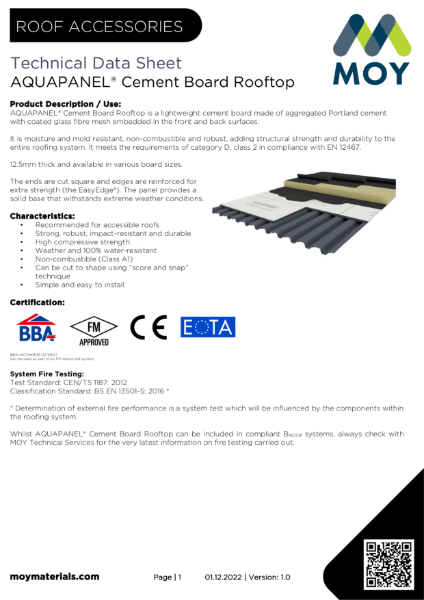

MOY_AQUAPANEL® Cement Board Rooftop
