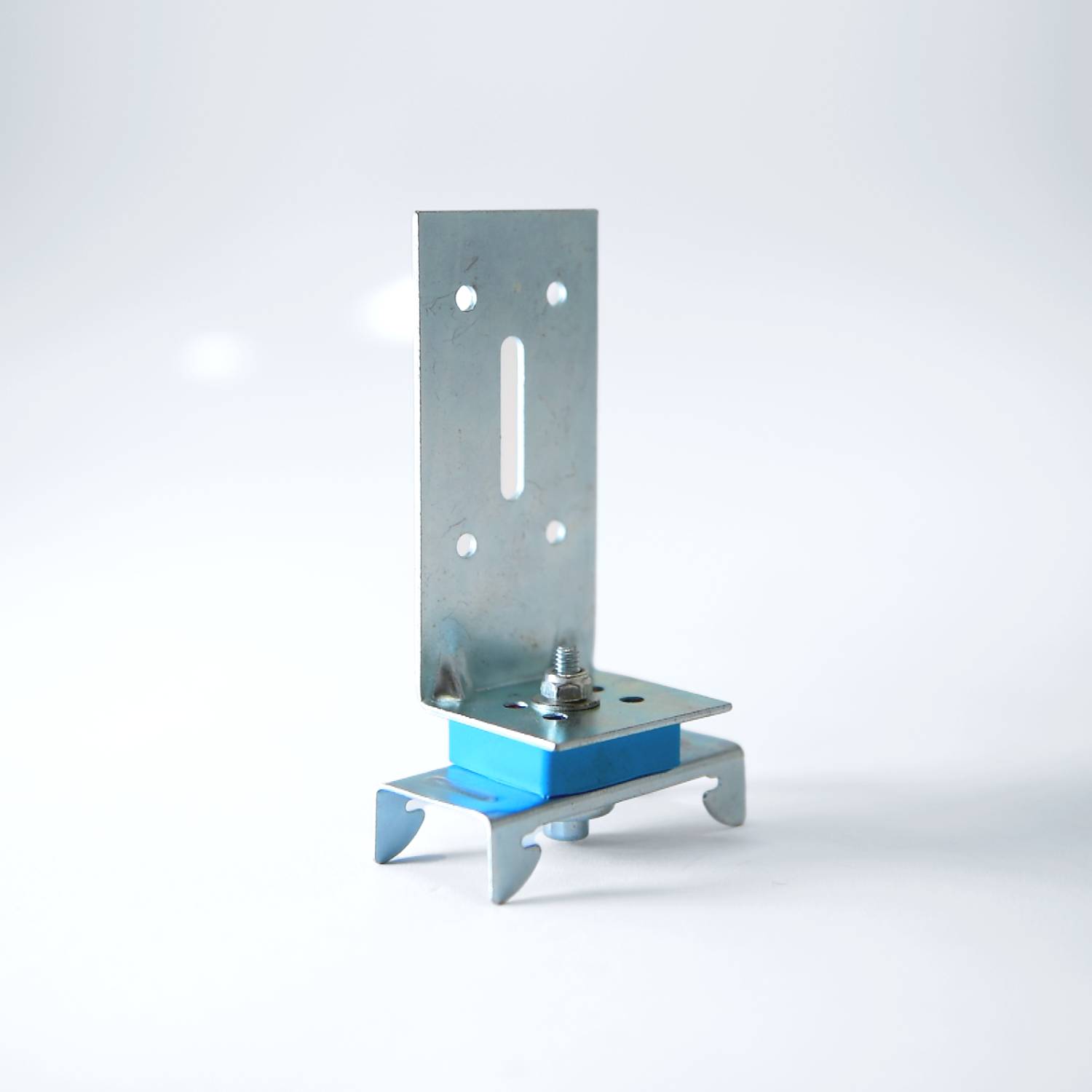

Sound isolation clip with an extended profile to accommodate varying joist depths.
Suitable for use on ceilings to reduce sound transfer over a broad range of frequencies.
An acoustic sound isolation clip for ceilings with dual density rubber isolators to improve noise reduction over a broad range of frequencies while remaining stable and consistent with every MuteClip® XP.
Features and benefits:
Material | Rubber  |
Length | 45 mm  |
Width | 75 mm  |
Height | 105 mm  |
Uniclass | |
CAWS | K10/220 Proprietary suspended ceiling system K40/105 Suspended ceiling system K10/245 Ceiling lining on timber  |
Classification data | |
Load | 16 kg. Guidance for specification option: Per MuteClip.  |
Acoustic insulation | 53 dB. Guidance for specification option: Impact transmission. 54 dB. Guidance for specification option: Airbourne transmission.  |
Unit size | 105 x 75 x 45 mm.  |
Weight | 674 g.  |
Material | Rubber  |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
