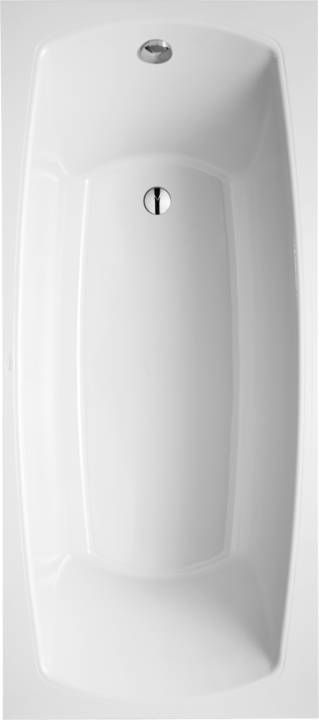

My Art Rectangular Bath UBQ170MYA2V
Verified by manufacturer 8 months ago
Rectangular bath.
Application
For bathrooms.
Description
Rectangular bath.
Features and benefits:
- Solo, to fit one person.
- Overflow hole possible in one of 3 different positions.
- Holesaw (for drilling the overflow hole) included.
- Set of bath feet is supplied as standard (self-adhesive), adjustable from 130–180 mm.
- Requires extended waste/ overflow combination.
General information
Color | White |
Finish | Gloss |
Material | Quaryl® |
Shape | Rectangle |
Length | 1700 mm |
Width | 500 mm |
Uniclass | |
CAWS | N13/355 Baths N13/35 Baths |
Specification data - Baths
Form | Rectangular. |
Materials | Quaryl®. |
Colour | Alpin White. |
Size | 1700 x 750 x 500 mm. |
Volume to overflow (maximum) | 190 L. |
Water supply, overflow and waste holes | |
Water supply | No tap holes. |
Overflow | Overflow hole. |
Waste | Bottom waste outlet. |
Integral accessories | Bath feet. |
Anti-slip finish | Class A. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 SketchUp | - | 1 |
 OBJ | - | 1 |
 IFC | - | 1 |
 ARCHICAD | - | 1 |
 3Ds Max | - | 1 |
 Revit | - | 1 |
