My View In Built-in Mirror Cabinet A43512
Verified by manufacturer 8 months ago

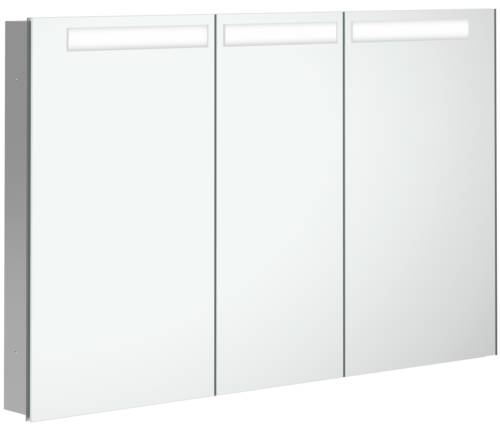

A built-in mirror cabinet, with lighting.
Application
Suitable for use in bathrooms.
Description
A built-in mirror cabinet, with lighting.
Features and benefits:
- Includes mounting set.
- Equipped with magnifying mirror.
- Magnetic strip.
- Has a single switch and two sockets.
- Mains-operated power supply.
- LED lights with sensor dimmer.
- Three doors.
- Four glass shelves.
General information
Material | Glass Aluminium |
Shape | Rectangle |
Width | 1201 mm |
Height | 747 mm |
Uniclass | Pr_25_71_53_82 Small mirrors |
CAWS | N13/63 Glass mirrors N13/438 Mirrors |
Specification data - Bathroom cabinets
Form | Wall-mounted. |
Carcass | |
Material | Aluminium.Guidance for specification option: Surface body E6 EV1. |
Size (nominal) | 1201 x 747 x 107 mm.Manufacturer guidanceWidth x height x depth. |
Shelves | |
Material | Glass. |
LED lighting | 1 x LED (17.05 W). Guidance for specification option: This light contains built-in LEDs. The LEDs in the light cannot be replaced. |
Colour | 2700 K (warm white) to 6500 K (daylight white). |
Control | Sensor dimmer. |
Weight | 31.1 kg. |
Power supply | Mains-operated. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 ARCHICAD | - | 1 |
 Revit | - | 1 |
 OBJ | - | 1 |
 IFC | - | 1 |
 SketchUp | - | 1 |
 3Ds Max | - | 1 |
