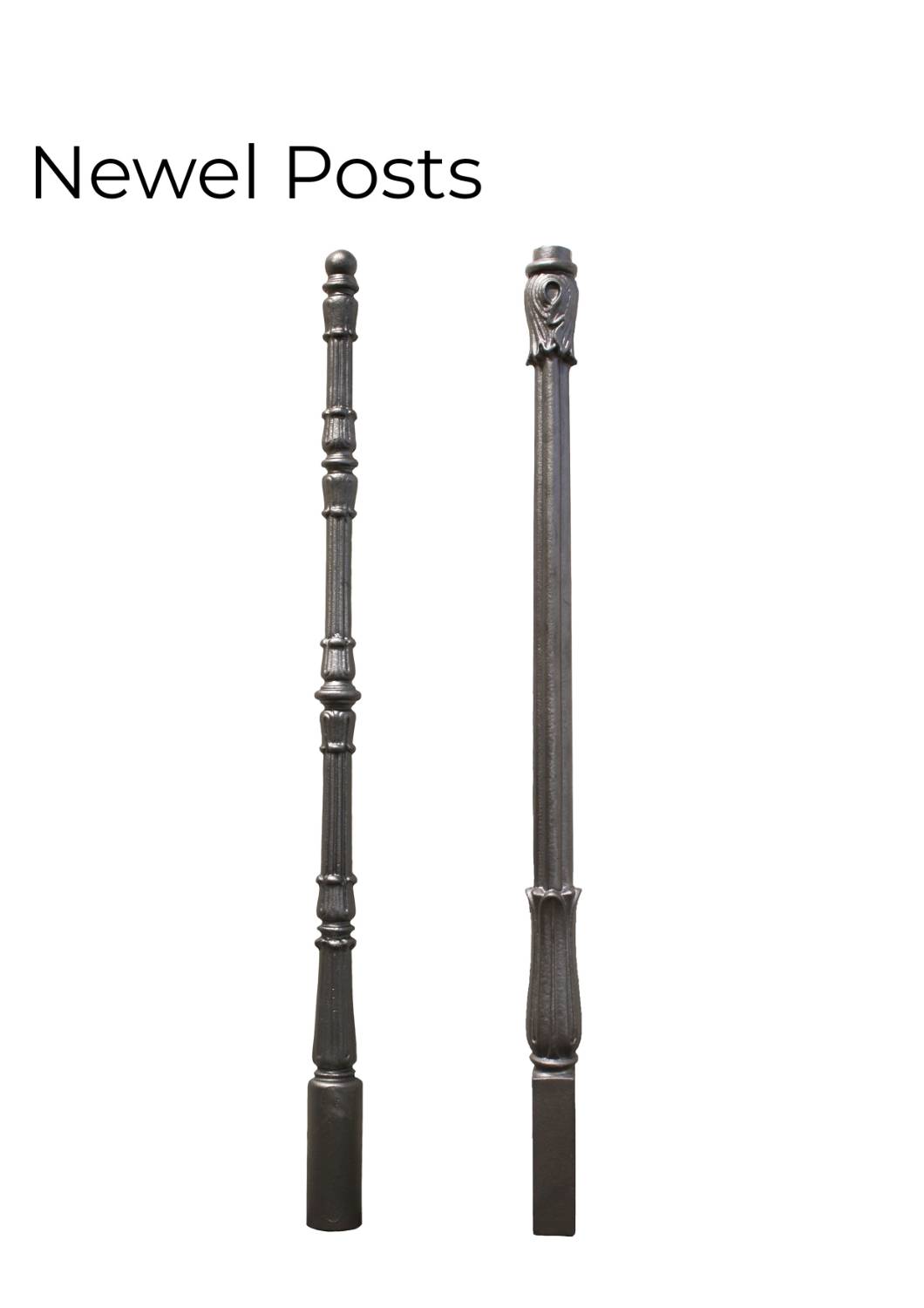

Newel Posts - cast iron and aluminium, and fabricated steel. Contemporary and traditional patterns and bespoke designs.

Verified by manufacturer 5 months ago

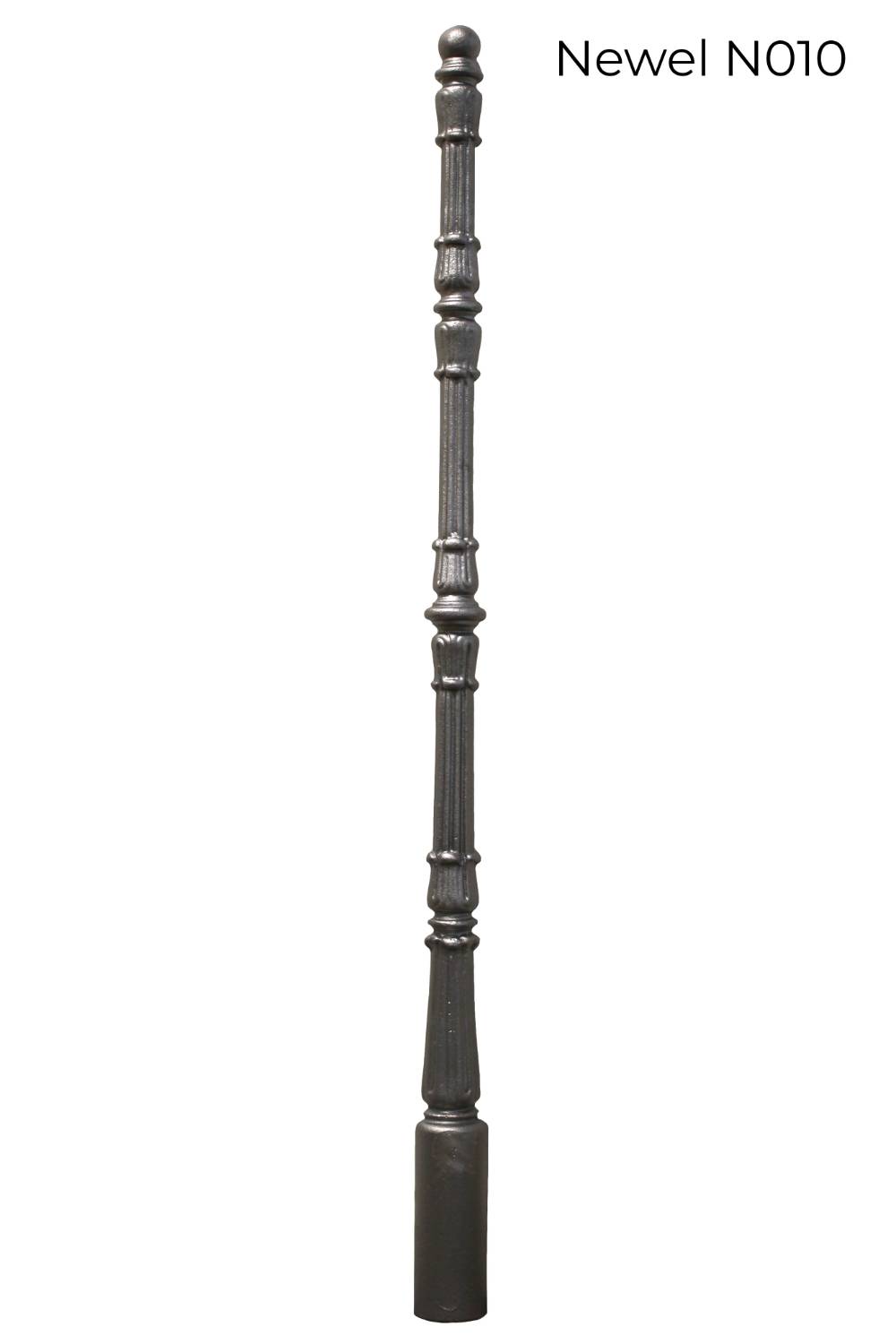

N010 Cast Iron Newel Post

Britannia Metalwork Services Ltd Variant:

Cast iron and aluminium newel posts.

Jump to:
+44(0)1242820582 Website

Application

Staircases.

Description

A newel post is a structural upright post that stands at the beginning and end of a staircase which supports the handrail. Newel posts unlike balusters are almost always made of metal.


Bespoke steel and other metal designs are popular for creating a beautiful blend between modern and classic style. Available in cast iron or aluminium and can be painted to any RAL colour.


All of the newel posts are manufactured in the UK using traditional sand-casting. A number of patterns are available which have been established over the years. Specs of our existing patterns are available, please contact us for more information. We can create any of the cast newels to bespoke sizes and also can create new patterns of any design/ choosing with a wide range of finishes available.

General information

Color

Other

Guidance for specification option:

Can be painted to any RAL colour. Consult manufacturer for details and insert requirements.

Finish

Painted

Other

Material

Cast iron

Aluminium

Shape

Other

Width

66 mm

50 mm

Height

1130 mm

1100 mm

Uniclass

Pr_20_76_06_52 Metal newel postsPrimary

CAWS

L37/110 Stair systems

L35/150 Stair systems

Specification data - Metal newel posts

Material

Cast iron.

Profile

Bespoke.

Finish

-

Colour

-

Manufacturer guidance

Can be painted to any RAL colour. Consult manufacturer for details and insert requirements.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Cast iron

Aluminium

Recyclability

96%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Guidance for specification option:

50-100% variable

Literature

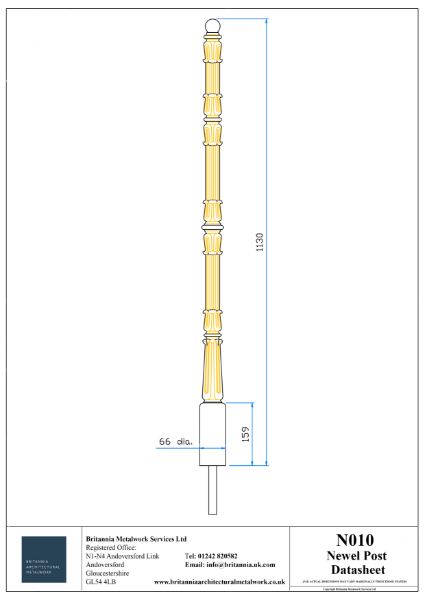

N010 Newel Post Datasheet

N010 Newel Post Datasheet

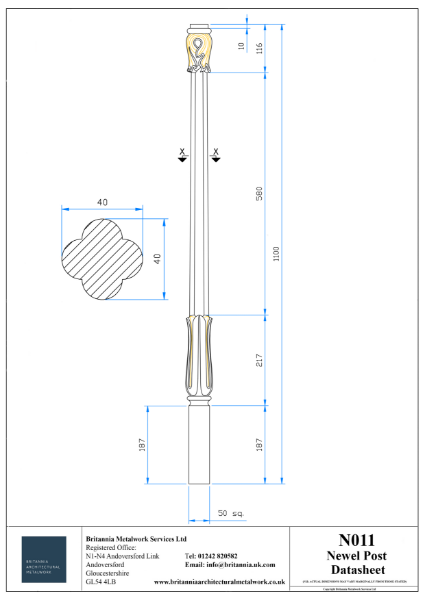

N011 Newel Post Datasheet

N011 Newel Post Datasheet
