No-Hand Lever Handle (HUKP-0501-09) - Door handle

Verified by manufacturer 6 months ago

Hafele UK Ltd

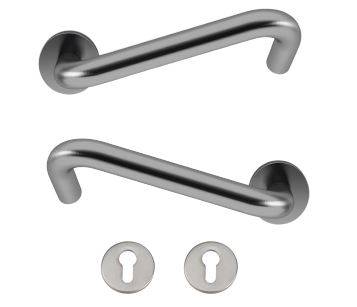

Stainless steel no-hand lever handle sprung on round rose.

Jump to:
+44 (0)800 171 2907 Website

Application

  • For no-hand entry/ exit requirements.
  • Suitable for door thickness 38-50 mm.

Description

Stainless steel no-hand lever handle sprung on round rose.


Features and benefits:

  • Barrier-free lever handle set for opening doors with forearm.
  • Designer: Mario Mazzer and Giovanni Crosera.
  • Sprung, for use with standard duty followers.
  • Lever length 192 mm and 82 mm projection.
  • 52 mm diameter and 8 mm thick rose, tested to over 200 000 cycles.
  • The no-hand lever handle negates the requirement to open door by hand and allows the use of elbow or forearm, in order to help prevent the spread of bacteria.
  • Comes with a pair of euro escutcheons.

General information

Color

Silver

Black

White

Bronze

Guidance for specification option:

Copper.

Finish

Satin

Guidance for specification option:

Stainless steel and copper.

Polished

Guidance for specification option:

Stainless steel and copper.

Matt

Guidance for specification option:

Black.

Powder-coated

Guidance for specification option:

White.

Material

Stainless steel

Steel

Length

192 mm

Width

68 mm

Height

74 mm

Warranty description

Ten year

Uniclass

Pr_30_36_59_25 Door lever handle setsPrimary

CAWS

P21/610 Lever handles

P21/38 Lever handles

Product range

Lever Handles

Specification data - Door lever handle sets

Standard

To BS EN 1906: 2012.

Classification grades (minimum)

-

Category of use

3.

Durability

7.

Fire resistance

0.

Safety

0.

Corrosion resistance

5.

Security

0.

Type of operation

B.

Style

Round pattern with return to door.

Size

20 mm diameter.

Material and finish

Stainless steel, grade 1.4301 (304).

Colour

Satin stainless steel.

Polished stainless steel.

Matt black.

Satin copper.

Guidance for specification option:

  • Copper tube version (CU+) known for natural anti-microbial properties that protect.
  • Minimum production, only on application.

Polished copper.

Guidance for specification option:

  • Copper tube version (CU+) known for natural anti-microbial properties that protect.
  • Minimum production, only on application.

White powder coat.

Mounting

Sprung rose with bolt through fixing.

Manufacturer guidance

Roses pierced at 38 mm centres for M4 bolt through fixing.

Integral accessories

Two escutcheons.

Guidance for specification option:

52mm diameter and 38 mm centres.
