Nu-Healthcare IPS

Verified by manufacturer over a year ago

Nu-Style Products Ltd

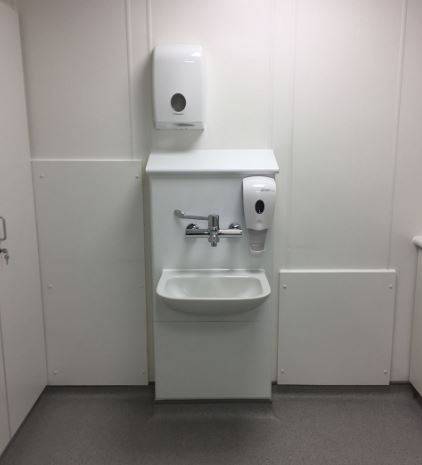

A pre-assembled IPS unit with Postformed Access panels. Designed for areas where hygiene is of paramount importance.

Jump to:
BOS
+44 (0)1224 823000 Website

Application

Hospitals.

Description

Pre-assembled integrated plumbing system (IPS) unit with postformed access panels, suitable for dry areas and where hygiene is important.


Features and benefits:

  • Integrated postformed upstand and downstand as standard.
  • Access panels can be pre-clipped or hinged.
  • Supplied fully assembled.
  • No framing required
  • Available in a wide range of colours.

Size:

12 mm compact face panels/ 20 mm-thick high-pressure laminate (HPL) carcass:

Up to 3150 mm.

19 mm moisture-resistant melamine-faced chipboard (MFC):

Up to 3000 mm.

20 mm high-pressure laminate (HPL):

Up to 3000 mm.

General information

Color

-

Manufacturer guidance

12 mm-thick compact face panels/ 19 mm-thick moisture-resistant melamine-faced chipboard (MFC)/ 20 mm-thick high-pressure laminate (HPL) carcass:

  • Available in Formica or Polyrey Washroom Collection as standard; consult literature for details.
  • Also available in Arpa Athlon UK or Abet Cubicle Collection; consult manufacturer for details.


20 mm-thick high-pressure laminate (HPL):

  • Available in Sonae or Polyrey Washroom Collection; consult literature for details.

Finish

Melamine-faced

Laminate

Material

Melamine-faced chipboard (MFC)

High-pressure laminate (HPL)

Size

-

Manufacturer guidance

Sloped Top:

Width up to 1200 mm.

Height up to 1200 mm.

Depth up to 350 mm.


Unit:

12 mm compact face panels/ 20 mm-thick high-pressure laminate (HPL) carcass:

Up to 3150 mm.

19 mm moisture-resistant melamine-faced chipboard (MFC):

Up to 3000 mm.

20 mm high-pressure laminate (HPL):

Up to 3000 mm.

Uniclass

Ss_25_25_45_25 Duct and wall panel lining systemsPrimary

CAWS

K32/140 Duct/ wall linings – panels only

K32/15 Duct/ wall lining panels

Specification data - Duct and wall panel lining systems

Panels

12 mm compact panels/ 20 mm high-pressure laminate (HPL).

Guidance for specification option:

Face panels:

12 mm-thick solid grade laminate (SGL) with radiused edges.

Carcass:

20 mm-thick HPL, comprising 18 mm-thick moisture-resistant MDF with HPL on both sides. Square edged, lipped with 2 mm-thick polyvinyl chloride (PVC).

19 mm melamine-faced chipboard (MFC).

Guidance for specification option:

Moisture-resistant, square edged, lipped with 2 mm-thick polyvinyl chloride (PVC).

20 mm high-pressure laminate (HPL).

Guidance for specification option:

18 mm-thick, moisture-resistant medium density fibreboard (MDF) with HPL on both sides. Square edged, lipped with 2 mm-thick polyvinyl chloride (PVC).

Non-integral finishes

Polyvinyl chloride (PVC) square edging and lipped.

Fasteners

Lift-off panel clips.

Push-on panel clips.

Manufacturer guidance

Keku clips as standard.

Product Reference

Nu-Healthcare IPS

Type

Pre-clipped.

Guidance for specification option:

Standard. Uses lift-off and push-on Keku clips as standard.

Hinged.

Guidance for specification option:

Top panels are supplied with side hinges with the middle and bottom panels supplied pre-clipped with lift-off and push-on Keku clips.

Lock

Not required.

Required.

Guidance for specification option:

Hinged panel only; consult manufacturer for details and insert requirements.

Sloped top

Not required.

Required.

Guidance for specification option:

Half-height units only; consult manufacturer for details.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2017

1

IFC
-

1
