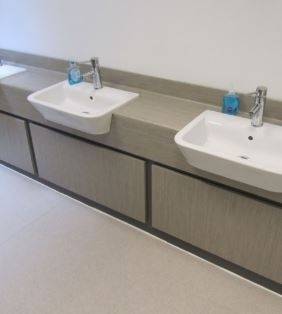

Nu-Lam Vanity With Access Panels
Verified by manufacturer over a year ago
High-pressure laminate (HPL) vanity suitable for dry areas with medium to heavy duty traffic.
Application
Toilets, schools, nurseries, offices, hospitals, airports.
Description
High-pressure laminate (HPL) vanity with 18 mm-thick moisture-resistant medium density fibreboard (MDF) core, suitable for dry areas with medium to heavy duty traffic.
Features and benefits:
- Integrated postformed upstand and downstand as standard.
- Access panels are pre-clipped to the back panel with push-on Keku clips, saving valuable labour time on site.
- Supplied fully assembled (framing details to be supplied by installer).
- Low height nursery option available.
- Available in a wide range of colours.
- Also available with doors.
General information
Color | Manufacturer guidanceAll ranges come with a comprehensive and extensive colour choice from the main European manufacturers of MFC, HPL & SGL. |
Finish | High-pressure laminate Manufacturer guidanceAvailable in Formica or Polyrey Washroom Collection as standard; consult literature for details. Also available in Arpa Athlon UK or Abet Cubicle Collection; consult manufacturer for details. |
Material | Medium density fibreboard Guidance for specification option: 18 mm-thick moisture resistant medium density fibreboard (MDF) with HPL on both sides. Corian® Guidance for specification option: standard |
Size | 600 x 350 mm, (specify length) 800 x 600 mm, (specify length) |
Uniclass | |
CAWS | N10/145 Vanity and washroom furniture |
Specification data - Vanity units
Form | Wall mounted. |
Materials | |
Carcass | |
Frame and panels | Softwood.Guidance for specification option: Softwood frame to be supplied and fitted by installer. |
Worktop | |
Material | Medium density fibreboard.Guidance for specification option: 18 mm-thick moisture resistant medium density fibreboard (MDF) with HPL on both sides. Corian®.Guidance for specification option: Standard |
Finish and colour | High-pressure laminate, (specify colour).Guidance for specification option: 20 mm-thick HPL, with (MDF) core and square edge/ lipped with 2 mm-thick polyvinyl chloride (PVC). Manufacturer guidance
|
Size (nominal) | 600 x 350 mm (specify length).Guidance for specification option: (height x depth) Depth suitable for semi-recessed sinks. 800 x 600 mm (specify length).Guidance for specification option: (height x depth) Depth suitable for recessed sinks. Manufacturer guidanceLength available up to 3000 mm without a joint. |
Integral accessories | None.Framing details. |
Product Reference | Nu-Lam Vanity With Access Panels |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | Revit 2017 | 1 |
