NVELOPE® Rainscreen Sub Frame Vertical System - NV1 - Rainscreen Cladding Support System
Verified by manufacturer 5 days ago
NV1
NV1
BBA Agrément Certificate
Certificate type
EPD
Certificate type
Secondary support carrier system for façade panels, brackets available in aluminium or stainless steel, enhanced thermal options with thermal pad solution. Profiles are manufactured in aluminium.
Application
Suitable as a back frame system (NV1 is the basis of all NVELOPE® Rainscreen Systems) – NV1 is suitable for face fixing/ rivet fixing cladding elements to (e.g. fibre cement, high pressure laminate (HPL) and metal rainscreen panels).
Description

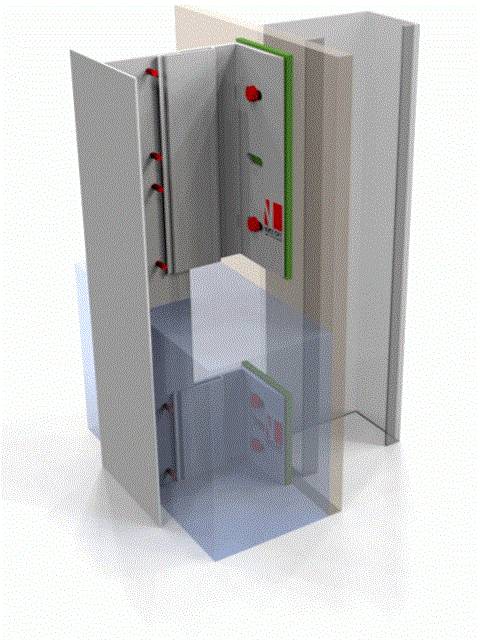

Vertical aluminium sub frame system for rainscreen applications with helping hand system.
Features and benefits:
- NV1 is the NVELOPE® back frame – vertical cladding applications.
- Enhanced thermal performance through suite of NVELOPE® Thermal Solutions.
- A2 rated, Thermal Pad, made from Aerogel. Contains Alumino Silicate Ceramic balls to prevent compression of insulant & maintain thermal performance.
- Project Builder platform provides mechanical and thermal performance with ability to optimise system.

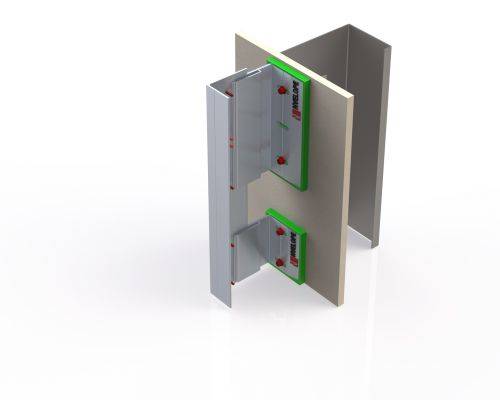

- NVELOPE® ‘T’ and ‘L’ profiles are fixed using NVELOPE helping hand support brackets, fixed through a series of fixed and moving points.
- NVELOPE® sliding point brackets absorb wind loading and allow for expansion and contraction.
- NVELOPE® fixed-point brackets absorb both vertical dead loads & dynamic loads
- NVELOPE® bracket spacing is determined by cladding options such as the dimensions and weight of the facade cladding, local wind loads and cladding zone.
- NVELOPE® Thermal Pad is protected by UK Patent GB 2583558 (SFS Group Fastening Technology Ltd)
General information
Finish | Mill Powder-coated Anodized |
Material | Aluminium Stainless steel |
Shape | Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | 25 year Guidance for specification option: Up to 25 years - consult manufacturer. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specification data - Aluminium carrier rails
Standards | EN 1090-3:2008; Eurocode 9 Pt 1-4. |
Factory finish | Mill. |
Thermal break | SFS Thermal Pad available. |
Thermal break | Isolator only. |
Material/ Finish | Aluminium alloy 6005 T6; mill aluminium standard finish. Guidance for specification option: Anodized and powder coating option. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Material | Aluminium Stainless steel |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 9.59 kg CO₂ eq/kg |
Recyclability | 6005 aluminium is 100% recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 35 year |
Third party certifications
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2017 | 1 |
 IFC | - | 1 |
Third party certifications
